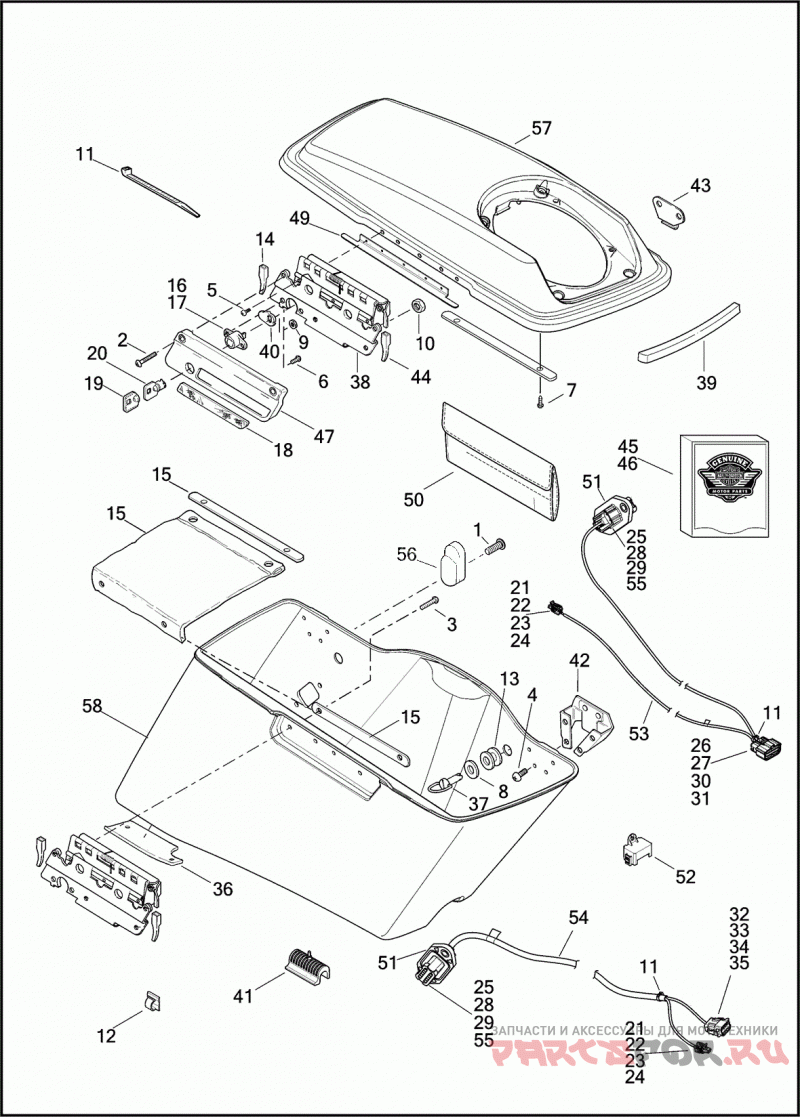

SCREW 1/4-20 X 3/4 TORX BUTTON HD.

SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING

SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)

SCREW NO. 8-32 X 5/16 TORX TRUSS HD.

SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH

SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5)

SCREW #10-16 X 1/2 HI-LO, TORX HD T-25

WASHER 5/16 X 1-1/16 X 3/64

JAMNUT 9/32-28 X 1/4

NUT NO. 8-32 X 1/8 X 11/32 (GRADE 2)

CABLE STRAP

CLIP RIGHT

Уплотнитель резиновый

RUB BAR LEFT, REAR (PLASTIC)

RUB BAR RIGHT, REAR (PLASTIC)

CHECK STRAP LEFT

CHECK STRAP RIGHT (NOT SHOWN)

LOCK W/ 7586, 90682-93 & KEYS (SPECIFY KEY CODE) (SET OF 2)

LOCKSET COMPLETE (FOR KEY CODES 3000 - 4102), W/ 71452-91A KEYS, IGNITION KNOB, & SADDLEBAG LOCK (DOMESTIC, AUSTRALIA, JAPAN)

LOCKSET COMPLETE (FOR KEY CODES 5000 & UP), W/ 90300042 KEYS, IGNITION KNOB, & SADDLEBAG LOCK (HDI, ENGLAND)

REFLECTOR RIGHT (RED) (DOMESTIC, CANADA)

REFLECTOR LEFT (RED) (DOMESTIC, CANADA)

REFLECTOR RIGHT (AMBER) (HDI, ENGLAND, JAPAN)

REFLECTOR LEFT (AMBER) (HDI, ENGLAND, JAPAN)

COVER KEY

HOUSING 2-WAY

TERMINAL SOCKET, 18 AWG

WIRE SEAL 18 AWG (YELLOW)

SECONDARY LOCK 2-WAY (GRAY)

PIN LOCK

HOUSING SOCKET, 16-WAY (BLACK)

TERMINAL SOCKET, 18-20 AWG

TERMINAL PIN, 16-18 AWG

SEAL PIN 4-WAY RECEPTACLE

TERMINAL SOCKET, 14-16 AWG

SEAL PIN

HOUSING SOCKET 8-WAY (BLACK)

SECONDARY LOCK 8-WAY, SOCKET

SOCKET TERMINAL

SEAL PIN

PROTECTOR LEFT

PROTECTOR RIGHT

BAIL HEAD STUD (BAIL MUST BE REMOVED FOR ALL HDI MODELS EXCEPT JAPAN)

LATCH ASSEMBLY LEFT, W/ 53482-93 & SPRING, ALSO ORDER 90981-09

LATCH ASSEMBLY RIGHT, W/ 53483-93 & SPRING, ALSO ORDER 90980-09

GASKET COVER

CAM HOOK

CUSHION FRONT

MOUNTING BRACKET

WEARPLATE COVER

RUB BAR RIGHT, FRONT (PLASTIC)

RUB BAR LEFT, FRONT (PLASTIC)

COVER INDOOR STORAGE

LINER REMOVABLE

LATCH COVER RIGHT (ATOMIC ORANGE)

LATCH COVER RIGHT (ROMAN GOLD)

LATCH COVER RIGHT (DIAMOND DUST)

LATCH COVER LEFT (ATOMIC ORANGE)

LATCH COVER LEFT (ROMAN GOLD)

LATCH COVER LEFT (DIAMOND DUST)

GROMMET RIGHT SADDLEBAG

BACKING PLATE

Комплект инструментов

GASKET PLUG

Крышка

WIRE HARNESS JUMPER, LEFT

WIRE HARNESS JUMPER, RIGHT

RECEPTACLE 12-WAY (GRAY)

COVER PLUG

COVER ASSEMBLY LEFT W/ 39, 43 & LABEL (ATOMIC ORANGE)

COVER ASSEMBLY LEFT W/ 39, 43 & LABEL (ROMAN GOLD)

COVER ASSEMBLY LEFT W/ 39, 43 & LABEL (DIAMOND DUST)

COVER ASSEMBLY RIGHT W/ 39, 43 & LABEL (ATOMIC ORANGE)

COVER ASSEMBLY RIGHT W/ 39, 43 & LABEL (ROMAN GOLD)

COVER ASSEMBLY RIGHT W/ 39, 43 & LABEL (DIAMOND DUST)

BOTTOM ASSEMBLY LEFT (ATOMIC ORANGE/GALAXY GRAY)

BOTTOM ASSEMBLY LEFT (ROMAN GOLD/BURNT EMERALD)

BOTTOM ASSEMBLY LEFT (DIAMOND DUST/OBSIDIAN)

BOTTOM ASSEMBLY RIGHT (ATOMIC ORANGE/GALAXY GRAY)

BOTTOM ASSEMBLY RIGHT (ROMAN GOLD/BURNT EMERALD)

BOTTOM ASSEMBLY RIGHT (DIAMOND DUST/OBSIDIAN)
