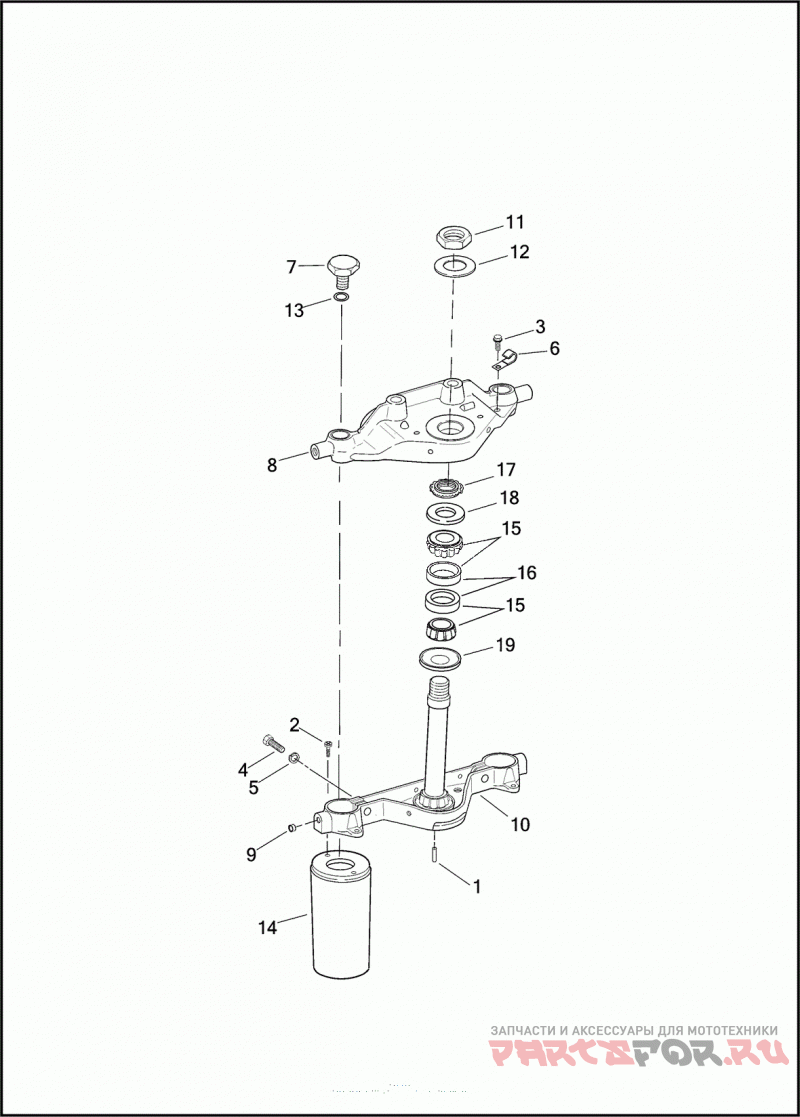

FORK BRACKETS, FRONT

Harley Davidson FLTRXSE2 1TC8 CVO ROAD GLIDE (2013)

Harley Davidson
#oem кодцена
1
608
Палец
2
3537
SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH
3
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
4
4855
SCREW 7/16-20 X 1-3/8 HEX HD. (GRADE 8)
5
7039
LOCKWASHER 7/16
6
10092
J-CLAMP
7
45419-80
BOLT FORK
8
45435-10
BRACKET UPPER
9
45442-86
GUIDE BUSHING FORK STEM BRACKET ASSEMBLY
10
45446-09
BRACKET ASSEMBLY LOWER, W/ 608 & 48365-48A
11
45718-60
NUT 1-24 X 1.5 X 0.47
12
45727-08
WASHER 1-1/32 X 2.0 X 1/16
13
45733-48
OIL SEAL FORK BRACKET BOLT
14
45964-10
FORK SLIDER COVER (PRIME)
14
45600015CPB
FORK SLIDER COVER (GALAXY GRAY)
14
45600015DRC
FORK SLIDER COVER (BURNT EMERALD)
14
45600015DRJ
FORK SLIDER COVER (OBSIDIAN)
15
48300-60
ROLLER BEARING STEERING HEAD, W/ 48315-60
16
48315-60
CUP BEARING
17
48333-80
SEAT UPPER HEAD CONE
18
48361-80
DUST SHIELD BEARING, UPPER
19
48365-48A
DIRT GUARD BEARING, STEERING HEAD
