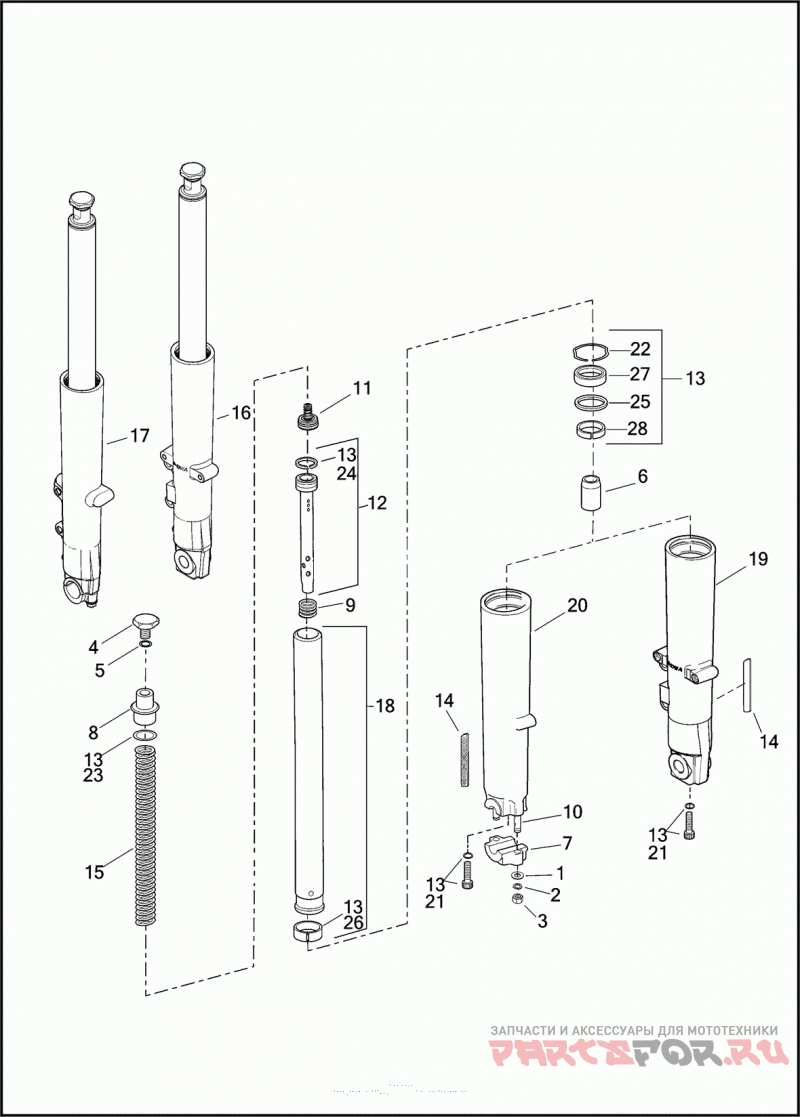

FORK, FRONT, LEFT & RIGHT

Harley Davidson FLHTCUTG ANV 1MAM_ANV TRI GLIDE ULTRA CLASSIC ANV (2013)

Harley Davidson
#oem кодцена
1
6702
WASHER 5/16 X 11/16 X 1/16
2
7041
LOCKWASHER 5/16
3
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
4
45419-80
BOLT FORK
5
45733-48
Сальник
6
45803-97
STOP OIL LOCK PIECE
7
45835-00
HOLDER AXLE (RIGHT)
8
45838-77
BOLT FRONT FORK
9
45933-86
REBOUND SPRING
10
45998-73
STUD (RIGHT)
11
46209-09
DAMPING VALVE
12
46422-09
DAMPER TUBE W/ PISTON RING
13
49377-09A
FORK REBUILD KIT
14
60253-07
REFLECTOR AMBER
15
83499-09
Пружина
16
83800-09
FORK ASSEMBLY COMPLETE (LEFT)
17
83801-09
FORK ASSEMBLY COMPLETE (RIGHT)
18
83804-09
FORK TUBE ASSEMBLY W/ BUSHING
19
83815-09
SLIDER FORK (LEFT)
20
83817-09
SLIDER FORK (RIGHT), W/ 45998-73
21
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
22
45842-77A
RETAINING RING OIL SEAL
23
45845-77
Уплотнительное кольцо
24
45859-77A
RING PISTON DAMPER TUBE
25
45865-84
SPACER SEAL
26
45866-84
BUSHING SLIDER
27
45875-84A
Сальник
28
45940-84
Втулка
