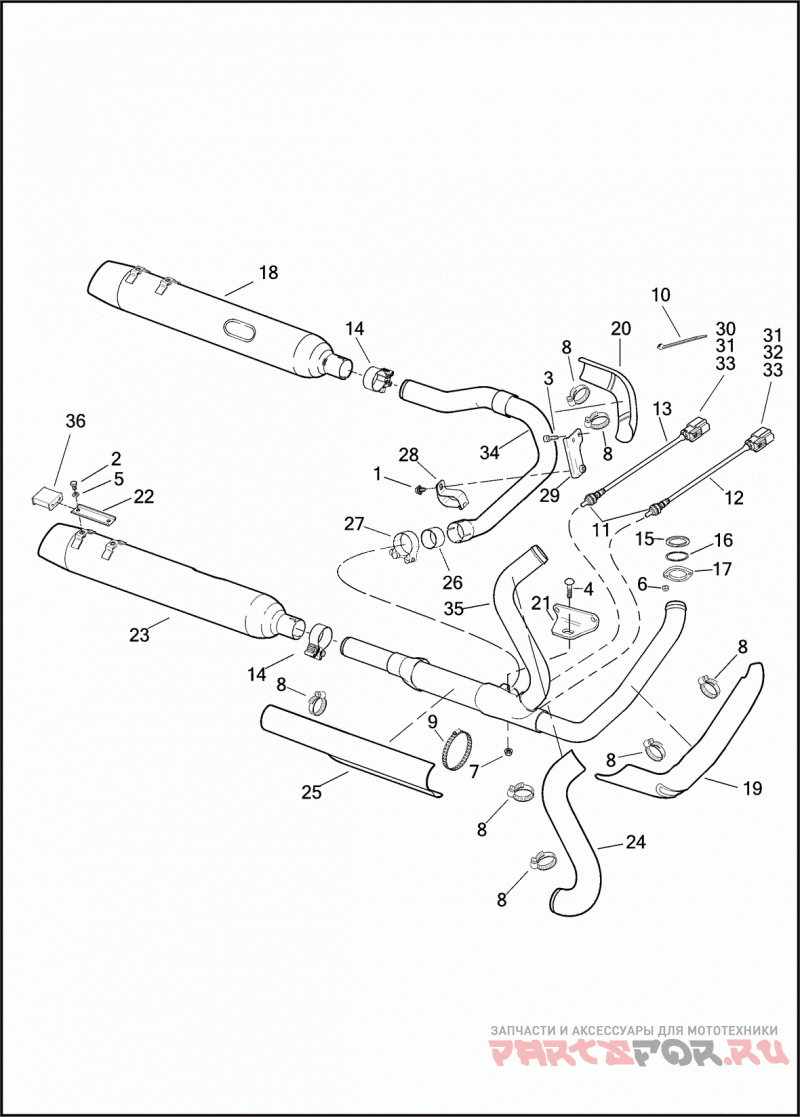

Глушитель

Harley Davidson FLHTCUTG ANV 1MAM_ANV TRI GLIDE ULTRA CLASSIC ANV (2013)

Harley Davidson
#oem кодцена
1
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
2
3929
SCREW 5/16-18 X 1/2 HEX HD.
3
4705
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH
4
5416
BOLT 3/8-16 X 1/8 CARRIAGE (GRADE 5)
5
7041
LOCKWASHER 5/16
6
7593
NUT 5/16-24 FLANGE
7
7601
LOCKNUT 3/8-16 FLANGE
8
9955
CLAMP WORM DRIVE #24
9
9956
CLAMP WORM DRIVE #40
10
10039
CABLE STRAP
11
11936
GASKET OXYGEN (O2) SENSOR
12
27729-10
SENSOR OXYGEN (O2), FRONT, W/ 11936, 72344-10, 72444-07GY & 73307-10
13
27809-10
SENSOR OXYGEN (O2), REAR, W/ 11936, 72177-07BK, 72344-10 & 73307-10
14
65296-95A
MUFFLER CLAMP
15
65324-83B
GASKET EXHAUST PORT
16
65325-83A
RETAINING RING EXHAUST GASKET
17
65328-83A
FLANGE EXHAUST PIPE
18
65538-09
MUFFLER LEFT, (CHROME) (DOMESTIC, CANADA, CALIFORNIA)
19
65634-09
SHIELD RIGHT EXHAUST PIPE, FRONT
20
65636-09
SHIELD LEFT EXHAUST PIPE, REAR
21
65678-09
BRACKET REAR EXHAUST MOUNT
22
65723-85
MOUNTING BRACKET
23
65846-10A
MUFFLER RIGHT, (CHROME) (DOMESTIC, CANADA, CALIFORNIA)
24
65951-09
HEAT SHIELD ASSEMBLY REAR EXHAUST PIPE
25
65952-09
HEAT SHIELD ASSEMBLY EXHAUST PIPE, RIGHT REAR LOWER
26
66813-09
GASKET CLAMP
27
66859-09
CLAMP EXHAUST
28
66861-09A
CLAMP EXHAUST PIPE, HINGED
29
66881-09
BRACKET EXHAUST PIPE HANGER
30
72177-07BK
HOUSING 4-WAY, SOCKET (BLACK)
31
72344-10
TERMINAL SOCKET, 22 AWG (GOLD)
32
72444-07GY
HOUSING 4-WAY, SOCKET (GRAY)
33
73307-10
TERMINAL SOCKET, 22 AWG
34
83448-09
CROSSOVER PIPE ASSEMBLY (CHROME)
35
83449-10
EXHAUST PIPE ASSEMBLY CATALYTIC (DOMESTIC, CANADA, CALIFORNIA) (CHROME)
36
84021-10
MOUNT RUBBER
