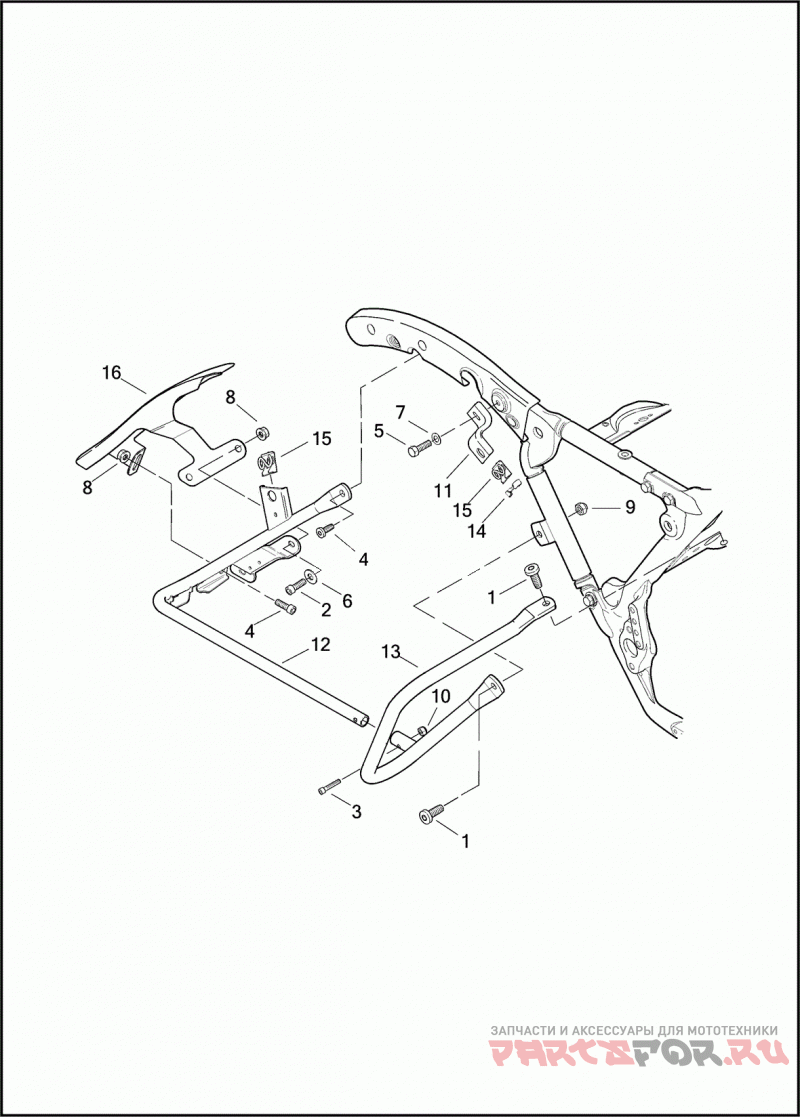

GUARDS, SADDLEBAG

Harley Davidson FLHTCU8 103 ANV 1PRM_ANV CVO ULTRA CLASSIC ANV (2013)

Harley Davidson
#oem кодцена
1
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
2
3275
SCREW 5/16-18 X 3/4 SOCKET HD. (GRADE 8)
3
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
6
6702
WASHER 5/16 X 11/16 X 1/16
7
6703
WASHER 1/4 X 5/8 X 1/16
8
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
9
7601
LOCKNUT 3/8-16 FLANGE
10
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
11
47449-09
BRACKET SADDLEBAG MOUNTING, FRONT (FLAT BLACK)
12
49194-09A
SUPPORT SADDLEBAG, LEFT
12
90781-09A
SUPPORT SADDLEBAG, RIGHT
13
49176-09
GUARD RIGHT
13
49187-09
GUARD LEFT
14
66069-10
BUMPER SADDLEBAG BRACKET
15
70909-95
RECEPTACLE
16
90200379CRP
FILLER STRIP SADDLEBAG TRIM, LEFT (BLACK DIAMOND) (NOT SHOWN)
16
90200379DDX
FILLER STRIP SADDLEBAG TRIM, LEFT (DARK SLATE) (NOT SHOWN)
16
90200379DLE
FILLER STRIP SADDLEBAG TRIM, LEFT (DIAMOND DUST) (NOT SHOWN)
16
90200380CRP
FILLER STRIP SADDLEBAG TRIM RIGHT (BLACK DIAMOND)
16
90200380DDX
FILLER STRIP SADDLEBAG TRIM RIGHT (DARK SLATE)
16
90200380DLE
FILLER STRIP SADDLEBAG TRIM RIGHT (DIAMOND DUST)
