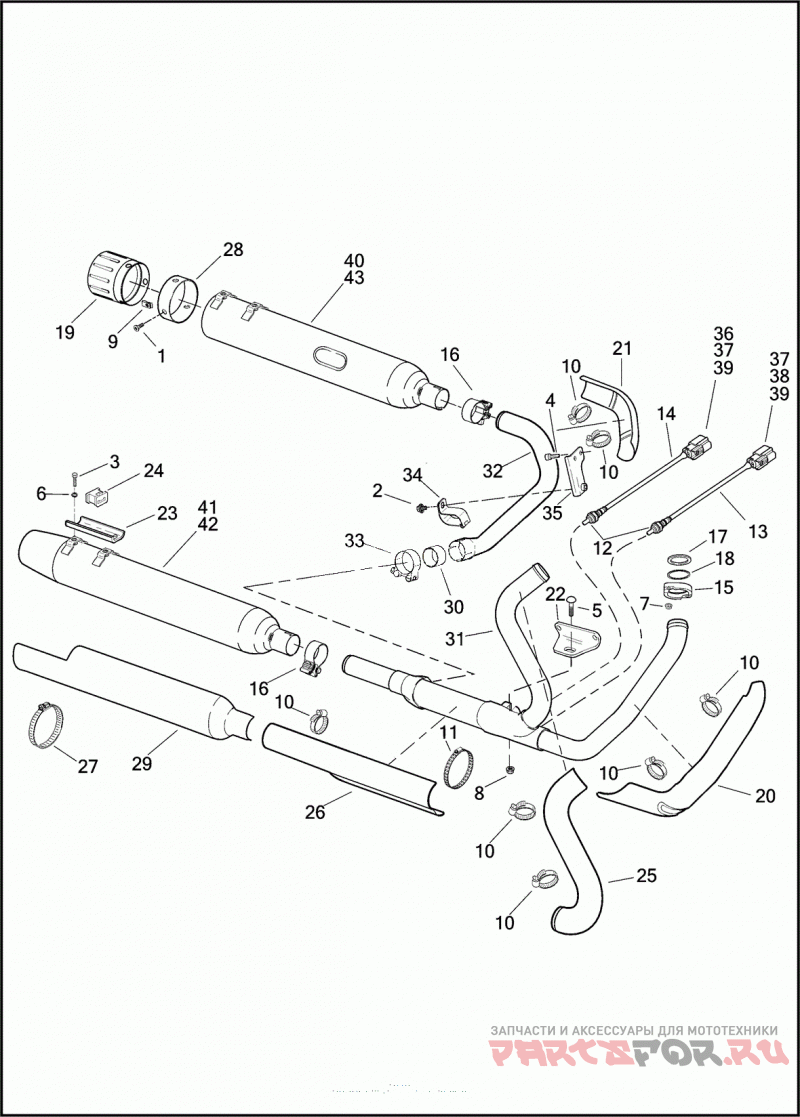

Глушитель

Harley Davidson FLHTCU8 103 ANV 1PRM_ANV CVO ULTRA CLASSIC ANV (2013)

Harley Davidson
#oem кодцена
1
10200384
SCREW 1/4-20 X 1/2 HEX SOCKET HD. (STAINLESS)
2
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
3
3929
SCREW 5/16-18 X 1/2 HEX HD.
4
4705
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH
5
5416
BOLT 3/8-16 X 1/8 CARRIAGE (GRADE 5)
6
7041
LOCKWASHER 5/16
7
7593
NUT 5/16-24 FLANGE
8
7601
LOCKNUT 3/8-16 FLANGE
9
8146
NUTCLIP
10
9955
CLAMP WORM DRIVE #24
11
9956
CLAMP WORM DRIVE #40
12
11936
GASKET OXYGEN (O2) SENSOR
13
27729-10
SENSOR OXYGEN (O2), FRONT, W/ 11936, 72344-10, 72444-07GY & 73307-10
14
27809-10
SENSOR OXYGEN (O2), REAR, W/ 11936, 72177-07BK, 72344-10 & 73307-10
15
65328-83A
FLANGE EXHAUST MANIFOLD
16
65296-95A
MUFFLER CLAMP
17
65324-83B
GASKET EXHAUST PORT
18
65325-83A
RETAINING RING EXHAUST GASKET
19
65586-11
END CAP
20
65634-09
SHIELD RIGHT EXHAUST PIPE, FRONT
21
65636-09
SHIELD LEFT EXHAUST PIPE, REAR
22
65678-09
BRACKET REAR EXHAUST MOUNT
23
65723-85
MOUNTING BRACKET
24
65724-85A
MOUNT RUBBER
25
65951-09
HEAT SHIELD ASSEMBLY REAR EXHAUST PIPE
26
65952-09
HEAT SHIELD ASSEMBLY EXHAUST PIPE, RIGHT REAR LOWER
27
66047-05
CLAMP WORM
28
66078-06
RING RETENTION
29
66219-06
HEAT SHIELD MUFFLER, RIGHT
29
66220-06
HEAT SHIELD MUFFLER, LEFT
30
66813-09
GASKET CLAMP
31
66849-10
EXHAUST PIPE ASSEMBLY CATALYTIC (CHROME)
32
66858-09
CROSSOVER PIPE ASSEMBLY (CHROME)
33
66859-09
CLAMP EXHAUST
34
66861-09A
CLAMP EXHAUST PIPE, HINGED
35
66881-09
BRACKET EXHAUST PIPE HANGER
36
72177-07BK
HOUSING 4-WAY, SOCKET (BLACK)
37
72344-10
TERMINAL SOCKET, 22 AWG (GOLD)
38
72444-07GY
HOUSING 4-WAY, SOCKET (GRAY)
39
73307-10
TERMINAL SOCKET, 22 AWG
40
64900198
MUFFLER LEFT, (CHROME) (DOMESTIC, CANADA, CALIFORNIA)
40
64768-09A
MUFFLER LEFT (CHROME) (HDI)
40
65949-09
MUFFLER LEFT (CHROME) (JAPAN, ASIA-PACIFIC)
41
64900199
MUFFLER RIGHT, (CHROME) (DOMESTIC, CANADA, CALIFORNIA)
41
64769-09A
MUFFLER RIGHT (CHROME) (HDI)
41
65748-09
MUFFLER RIGHT (CHROME) (JAPAN)
41
65863-09
MUFFLER RIGHT (CHROME) (ASIA-PACIFIC)
