  5. FLHTCU8 103 ANV 1PRM_ANV CVO ULTRA CLASSIC ANV (2013)

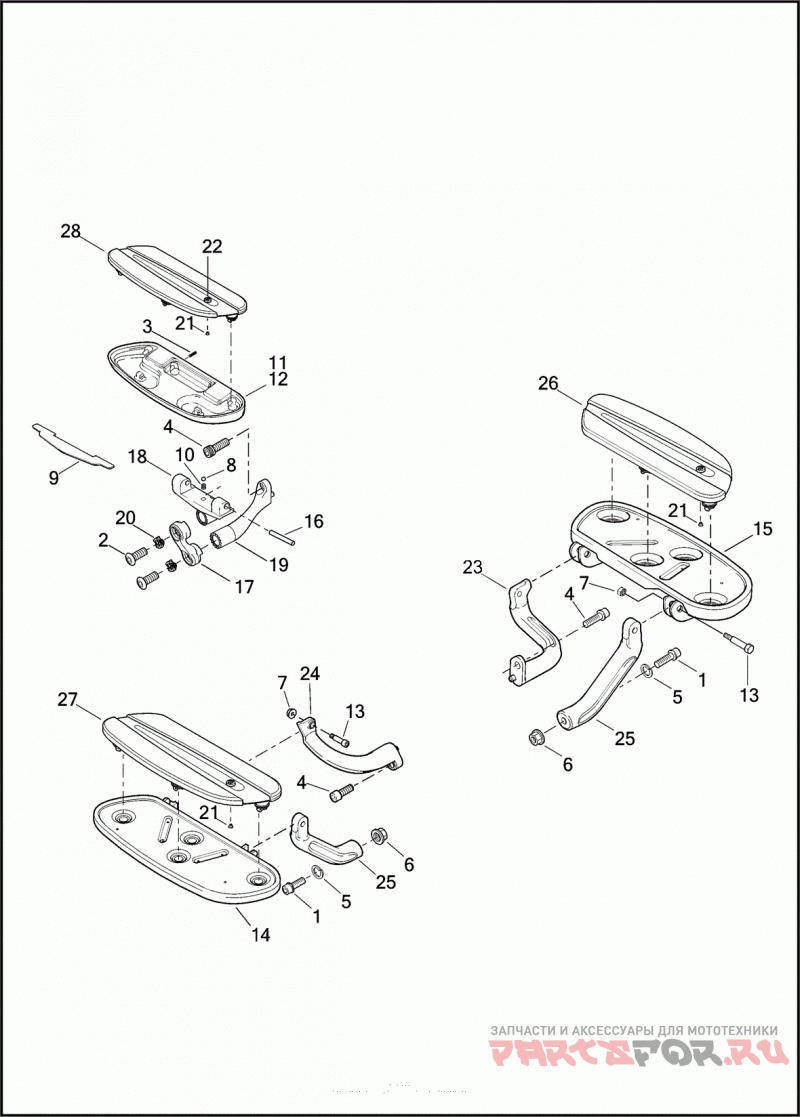

FOOTBOARDS

Harley Davidson FLHTCU8 103 ANV 1PRM_ANV CVO ULTRA CLASSIC ANV (2013)

Harley Davidson
#oem кодцена
1
4032A
SCREW 3/8-16 X 2-1/2 SOCKET HD.
2
4631
Винт
3
3341
SET SCREW NO. 10-24 X 1/2 HEX HEAD (STAINLESS)
4
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
5
7038
LOCKWASHER 3/8
6
7601
LOCKNUT 3/8-16 FLANGE
7
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
8
8861
Шарик
9
44430-04
PAD RUBBER (HDI)
10
51501-07
Пружина
11
50700-04
FOOTBOARD LEFT, PASSENGER (NOT SHOWN)
12
50701-04
FOOTBOARD RIGHT, PASSENGER
13
50635-82A
BOLT FOOTBOARD HINGE
14
50683-04
BOTTOM ASSEMBLY RIGHT, W/ HINGE
15
50688-04
BOTTOM ASSEMBLY LEFT, W/ HINGE
16
50933-86A
PIVOT PIN
17
50998-07
ARM ROTATING, RIGHT
17
51006-07
ARM ROTATING, LEFT
18
51007-07
SUPPORT FOOTBOARD
19
51008-07
ARM MAIN MOUNTING ASSEMBLY
20
51023-07
WAVE SPRING
21
12600025
Винт
22
14100119
MEDALLION
23
50500051
BRACKET SUPPORT FOOTBOARD, REAR LEFT
24
50500052A
BRACKET SUPPORT FOOTBOARD, REAR RIGHT
25
50500055A
MOUNTING BRACKET FRONT FOOTBOARD
26
50500058
INSERT ASSEMBLY LEFT, RIDER
27
50500059
INSERT ASSEMBLY RIGHT, RIDER
28
50500060
FOOTBOARD INSERT PASSENGER, W/ 12600025, 14100119, LEFT (NOT SHOWN)
28
50500061
FOOTBOARD INSERT PASSENGER, W/ 12600025, 14100119, RIGHT
