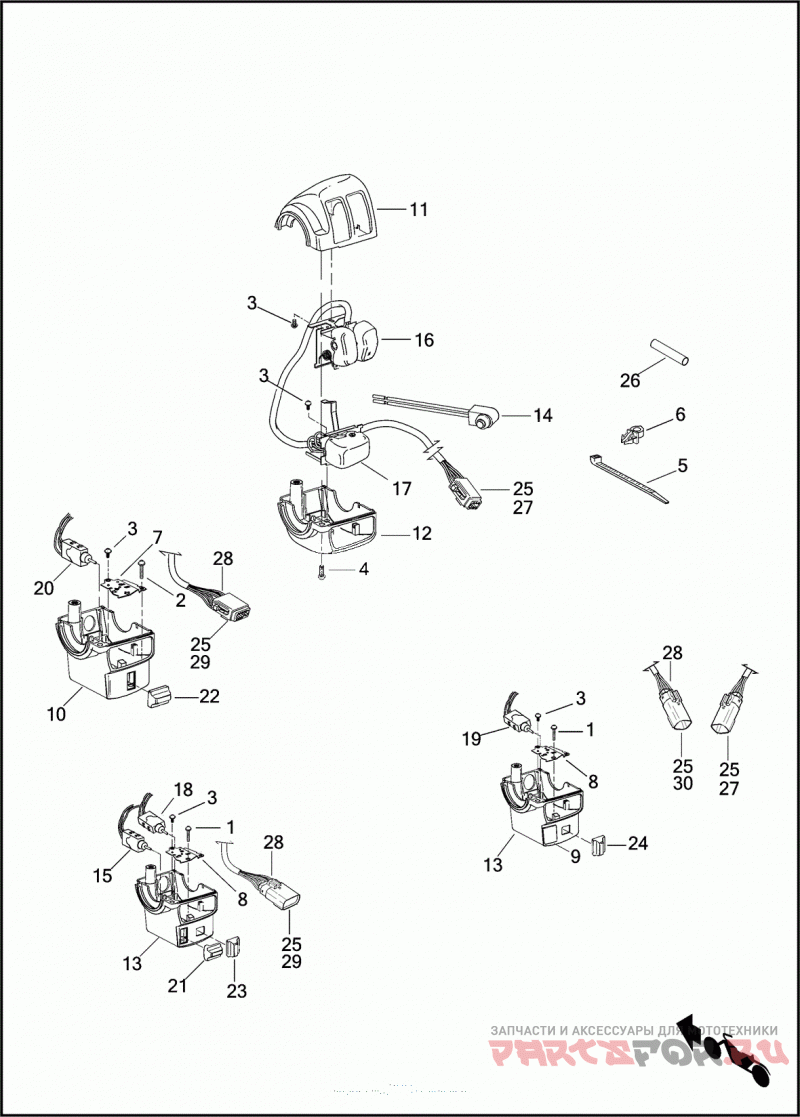

SWITCHES, HANDLEBAR, LEFT

Harley Davidson FLHR ANV 1FBM_ANV ROAD KING ANV (2013)

SWITCHES, HANDLEBAR, LEFT

#

oem код

название

цена

1

SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER

SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER

3

SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER

SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER

4

SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)

SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)

6

RETAINER WIRING

RETAINER WIRING

8

BRACKET SWITCH, LOWER LEFT, FBM CRUISE OPTIONAL

BRACKET SWITCH, LOWER LEFT, FBM CRUISE OPTIONAL

9

PLUG LEFT, FBM CRUISE OPTIONAL

PLUG LEFT, FBM CRUISE OPTIONAL

11

HOUSING UPPER LEFT

HOUSING UPPER LEFT

12

HOUSING LOWER LEFT, NON-CRUISE CONTROL

HOUSING LOWER LEFT, NON-CRUISE CONTROL

13

HOUSING LOWER LEFT, W/ CRUISE CONTROL, FBM CRUISE OPTIONAL

HOUSING LOWER LEFT, W/ CRUISE CONTROL, FBM CRUISE OPTIONAL

14

SWITCH KIT CLUTCH, W/ 10181 & 72266-94

SWITCH KIT CLUTCH, W/ 10181 & 72266-94

16

SWITCH KIT DIMMER/HORN, W/ 10181 & 72266-94

SWITCH KIT DIMMER/HORN, W/ 10181 & 72266-94

17

SWITCH KIT LEFT TURN SIGNAL, W/ 10181

SWITCH KIT LEFT TURN SIGNAL, W/ 10181

19

SWITCH KIT CRUISE, ON/OFF, FBM CRUISE OPTIONAL

SWITCH KIT CRUISE, ON/OFF, FBM CRUISE OPTIONAL

24

KNOB CRUISE, ON/OFF, FBM CRUISE OPTIONAL

KNOB CRUISE, ON/OFF, FBM CRUISE OPTIONAL

25

TERMINAL PIN, 16-20 AWG (FBM NON-CRUISE

TERMINAL PIN, 16-20 AWG (FBM NON-CRUISE

27

HOUSING PIN, 8-WAY (GRAY)

HOUSING PIN, 8-WAY (GRAY)

28

SEAL PIN (FBM CRUISE OPTIONAL)

SEAL PIN (FBM CRUISE OPTIONAL)

30

HOUSING PIN, 3-WAY (GRAY), FBM CRUISE OPTIONAL

HOUSING PIN, 3-WAY (GRAY), FBM CRUISE OPTIONAL
