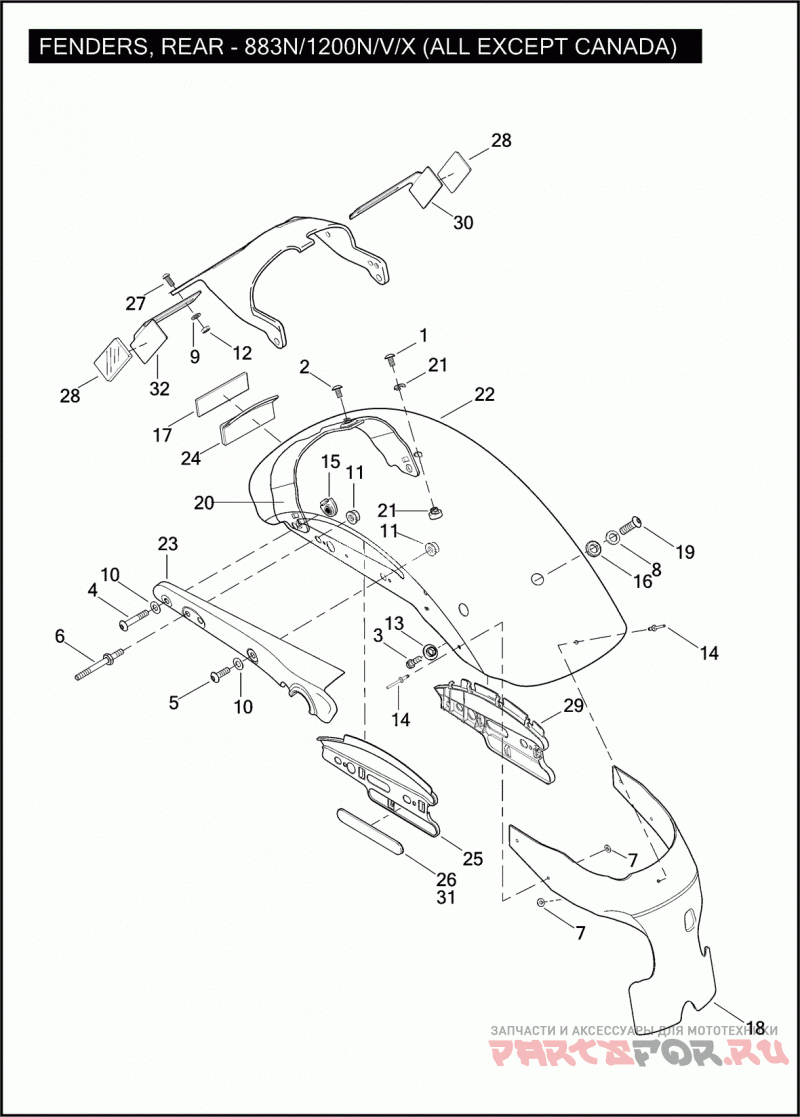

FENDERS, REAR - 883N/1200N/V/X (ALL EXCEPT CANADA)

Harley Davidson XL883N 4LE2 IRON 883 (2012)

Harley Davidson
#oem кодцена
1
2952A
SCREW 1/4-20 X 1/2 SEMS TRUSS HD.
2
3085
SCREW 1/4-20 X 1/2 W/WASHER
3
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
4
4778
SCREW 5/16-18 X 1-3/8 TORX BUTTON HD.
5
4779
SCREW 5/16-18 X 1-3/4 TORX BUTTON HD.
6
5531
Винт
7
6192
WASHER NO. 8 X 7/16 X 3/64
8
6702
WASHER 5/16 X 11/16 X 1/16
9
6703
WASHER 1/4 X 5/8 X 1/16
10
6798
WASHER 5/16 X 1/2 X 1/32
11
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
12
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
13
7882
TEE SPACER
14
8692
заклёпка
15
10323
CLIP THREADED
16
11474
Уплотнитель резиновый
17
59359-06
REFLECTOR (RED)
18
59502-04B
REAR FENDER EXTENSION
19
59723-04
SEAT POST
20
59727-07
FENDER SUPPORT
21
59768-97
FENDER SEAT NUT KIT
22
59865-10
FENDER REAR (PRIME)
23
60203-06
COVER REAR FENDER SUPPORT - RIGHT (VIVID BLACK)
23
60204-06
COVER REAR FENDER SUPPORT - LEFT (VIVID BLACK) (NOT SHOWN)
24
68724-07
MOUNTING BLOCK W/ TAPE
25
68704-07
BRACKET REFLECTOR MOUNT RIGHT
26
69490-07
REFLECTOR (RED)
27
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
28
59256-84A
REFLECTOR (AMBER) (HDI)
29
68857-07
BRACKET REFLECTOR MOUNT, LEFT (HDI)
30
68966-08
BRACKET REFLECTOR, LH (HDI)
31
69498-08
COVER SIDE REFLECTOR (HDI)
32
73504-11
BRACKET REFLECTOR, RH (HDI)
