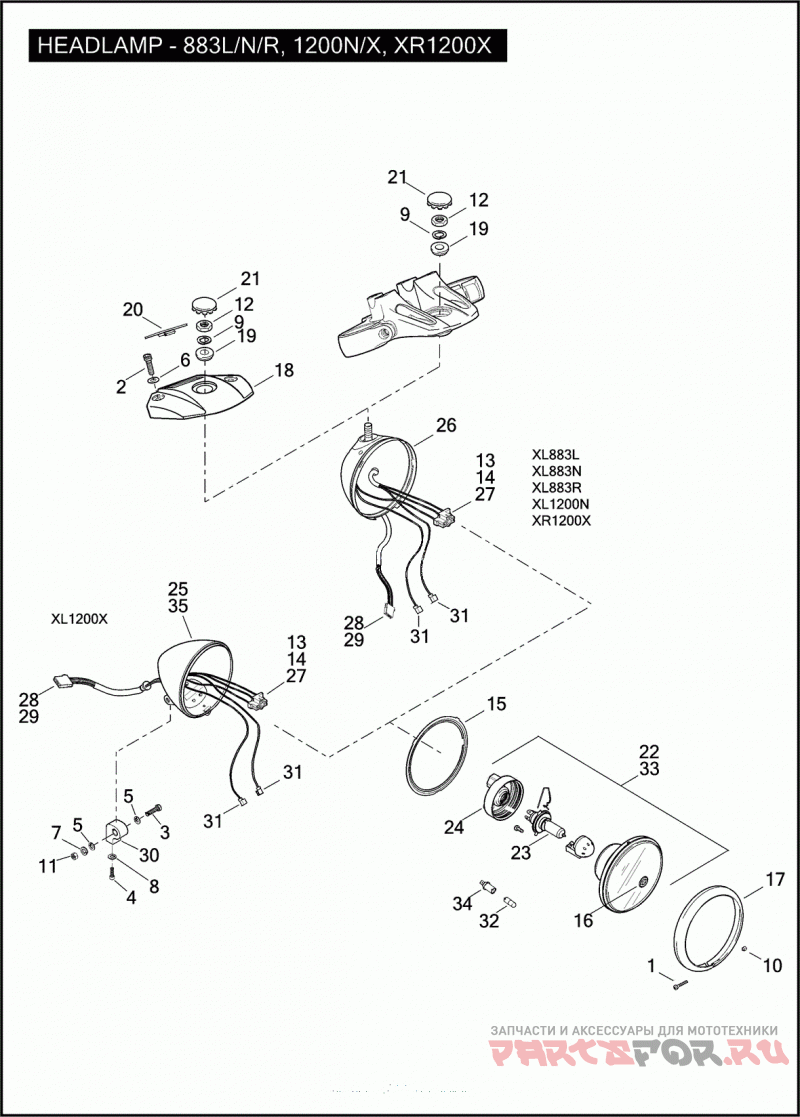

HEADLAMP - 883L/N/R, 1200N/X, XR1200X

Harley Davidson XL1200X 1LC3 FORTY-EIGHT (2012)

Harley Davidson
#oem кодцена
1
3514
Деталь SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
4724
Деталь BOLT 3/8-24 X 1-1/2 HEX HD. (GRADE 5)
4
4748
Деталь SCREW 3/8-16 X 1-1/8 SOCKET HD. (GRADE 8)
5
6701
Деталь WASHER 3/8 X 13/16 X 1/16
7
7038
Деталь LOCKWASHER 3/8
8
7045
Деталь LOCKWASHER 3/8 HIGH COLLAR
10
7606
Деталь LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
11
7800W
Деталь NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
13
9847
Деталь CONNECTOR RIGHT
14
9848
Деталь CONNECTOR LEFT
15
67883-04A
Деталь ADAPTER RING
16
67667-05
Деталь MEDALLION
17
67790-93A
Деталь BEZEL (CHROME)
22
68297-05A
Деталь LAMP ASSEMBLY WITH 15, 21, 22
23
68329-03
Деталь BULB
24
68380-05
чехол
25
73264-10
Деталь HEADLAMP SHELL W/ 13, 14, 27, 28, 29, 31 (BLACK)
27
72056-92
Деталь HOUSING FEMALE
28
73154-96BK
Деталь SOCKET HOUSING 4-WAY (BLACK)
29
73191-96
Деталь SOCKET TERMINAL 16-20 AWG
30
73266-10
Деталь MOUNT
30
7073
Деталь LOCKWASHER 1/4 EXTERNAL TOOTH
30
7230
Деталь LOCKWASHER 1/4 EXTERNAL TOOTH
30
7716
Деталь LOCKNUT 1/4-20 X 7/16 FLANGE
31
9898
Деталь TERMINAL FLAG
32
53436-97
Деталь BULB
33
68335-05A
Деталь LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
33
68341-05A
Деталь LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
34
68653-05
Деталь SOCKET BULB (2 SPADE)
35
67700094
Деталь HEADLAMP SHELL W/ 13, 14, 27, 28, 29, 31, 7073, 7230 & 7716 (INDIA) (NOT SHOWN)
