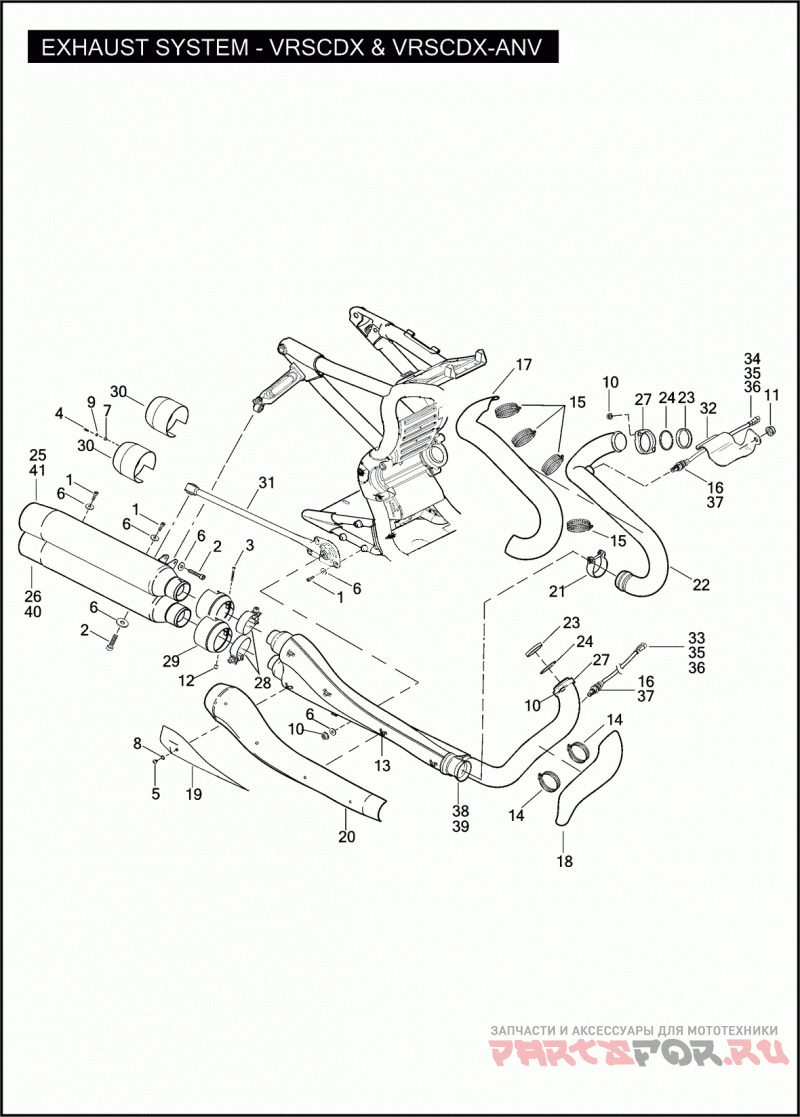

EXHAUST SYSTEM - VRSCDX & VRSCDX-ANV

Harley Davidson VRSCDX ANV 1HHH_ANV VRSCDX NIGHT ROD SPECIAL ANV (VRSCDX) (2012)

Harley Davidson
#oem кодцена
1
3709M
SCREW M8 X 1.25 X 20 SOCKET HD.
2
4485M
SCREW M8 X 1.25 X 45 SOCKET HD.
5
4608MA
SCREW 6 X 1 X 8.0 TORX BUTTON HD. (T25 TORX)
6
6302
WASHER 5/16 X 11/16 X 19/32
10
7432M
NUT M8 X 1.25 FLANGE
11
7495
NUT M6 FLANGE
13
8070MA
NUT M6 X 1 SQUARE
14
9954
Зажим
15
9955
Зажим
16
11936
Прокладка
17
65111-01A
SHIELD EXHAUST ASSEMBLY REAR (CHROME)
18
65110-01
SHIELD EXHAUST ASSEMBLY FRONT (CHROME)
19
65205-06
SHIELD LOWER EXHAUST (CHROME)
20
65400008
SHIELD UPPER EXHAUST (CHROME)
21
64832-09
Зажим
22
64966-09
EXHAUST PIPE REAR (CHROME)
23
64971-09
Уплотнение
24
65045-01
Стопорное кольцо
25
65215-06B
MUFFLER TOP (DOMESTIC, CALIFORNIA, CANADA, HDI, AUSTRALIA, ENGLAND, 105) (CHROME)
26
65226-06B
MUFFLER BOTTOM (DOMESTIC, CALIFORNIA, CANADA, HDI, AUSTRALIA, ENGLAND, 105) (CHROME)
27
65102-01
FLANGE
28
65108-01
Зажим
31
66777-07A
SUPPORT ASSEMBLY EXHAUST
32
70580-08
BRACKET OXYGEN SENSOR - REAR
33
72177-07BK
SOCKET HOUSING 4-WAY (BLACK)
34
72444-07GY
SOCKET HOUSING 4-WAY (GREY)
35
72344-10
TERMINAL SOCKET
36
73307-10
TERMINAL SOCKET
37
32700005
OXYGEN SENSOR FRONT W/ 11936, 72344-10, 72444-07GY & 73307-10
37
32700006
OXYGEN SENSOR REAR W/ 11936, 72177-07BK, 72344-10 & 73307-10
38
64900014
AUXILIARY VOLUME (DOMESTIC, CALIFORNIA, CANADA) (CHROME)
39
64900015A
AUXILIARY VOLUME (HDI, AUSTRALIA, ENGLAND, JAPAN, BRAZIL) (CHROME)
40
65429-06A
MUFFLER BOTTOM (JAPAN) (CHROME)
41
65428-06A
MUFFLER TOP (JAPAN) (CHROME)
