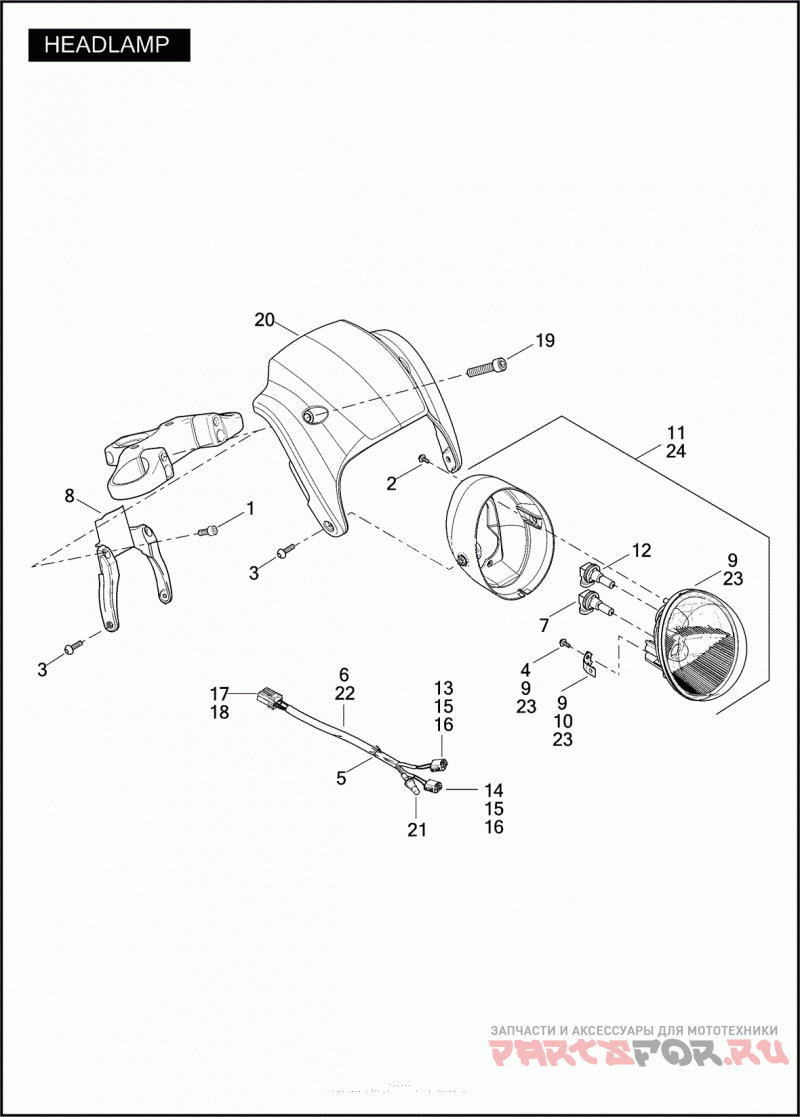

Фара

Harley Davidson VRSCDX ANV 1HHH_ANV VRSCDX NIGHT ROD SPECIAL ANV (VRSCDX) (2012)

Harley Davidson
#oem кодцена
2
3753M
SCREW M3 X 1.06 CROSS RECESSS PAN HD.
3
3832M
SCREW M6 X 1.0 X 20 HEX BUTTON HD.
4
3853M
SCREW M5 X 1.59 X1.30 HEX FLAT HD., SELF-TAPPING
5
10065
CABLE STRAP
6
67657-05
HARNESS HEADLAMP
7
67717-01
BULB, HIGH BEAM
9
68254-01
REFLECTOR ASSEMBLY HEADLAMP, W/ 3853M & 68807-01
10
68807-01
BRACKET REFLECTOR MOUNTING
11
68880-01
HEADLAMP ASSEMBLY (DOMESTIC, CALIFORNIA, CANADA) (SILVER)
12
68881-01
BULB LOW BEAM
13
72449-01
HOUSING SOCKET 2-WAY (BLACK)
14
72450-01
HOUSING SOCKET 2-WAY (GRAY)
15
72527-01
TERMINAL SOCKET #18-20 AWG.
16
72633-02
SEAL WIRE 14-16 AWG. (WHITE)
17
73154-96BK
HOUSING RECEPTACLE 4-WAY
18
73191-96
RECEPTACLE CONTACT 20-16 GAUGE (AS REQUIRED)
19
10200078
SCREW M6 X 1.0 X 20 HEX SOCKET CAP
20
67700045
BRACKET HEADLAMP MOUNTING (CHROME)
21
53436-97
BULB POSITION LAMP (HDI)
22
67658-05
HARNESS HEADLAMP (HDI)
23
68255-01
REFLECTOR ASSEMBLY HEADLAMP - RIGHT DIP (HDI, H105)
23
68256-01
REFLECTOR ASSEMBLY HEADLAMP - LEFT DIP (ENGLAND, AUSTRALIA, JAPAN)
24
68882-01A
HEADLAMP ASSEMBLY - LEFT DIP (ENGLAND, AUSTRALIA, JAPAN) (SILVER)
24
68883-01A
HEADLAMP ASSEMBLY - RIGHT DIP (HDI, H105) (SILVER)
