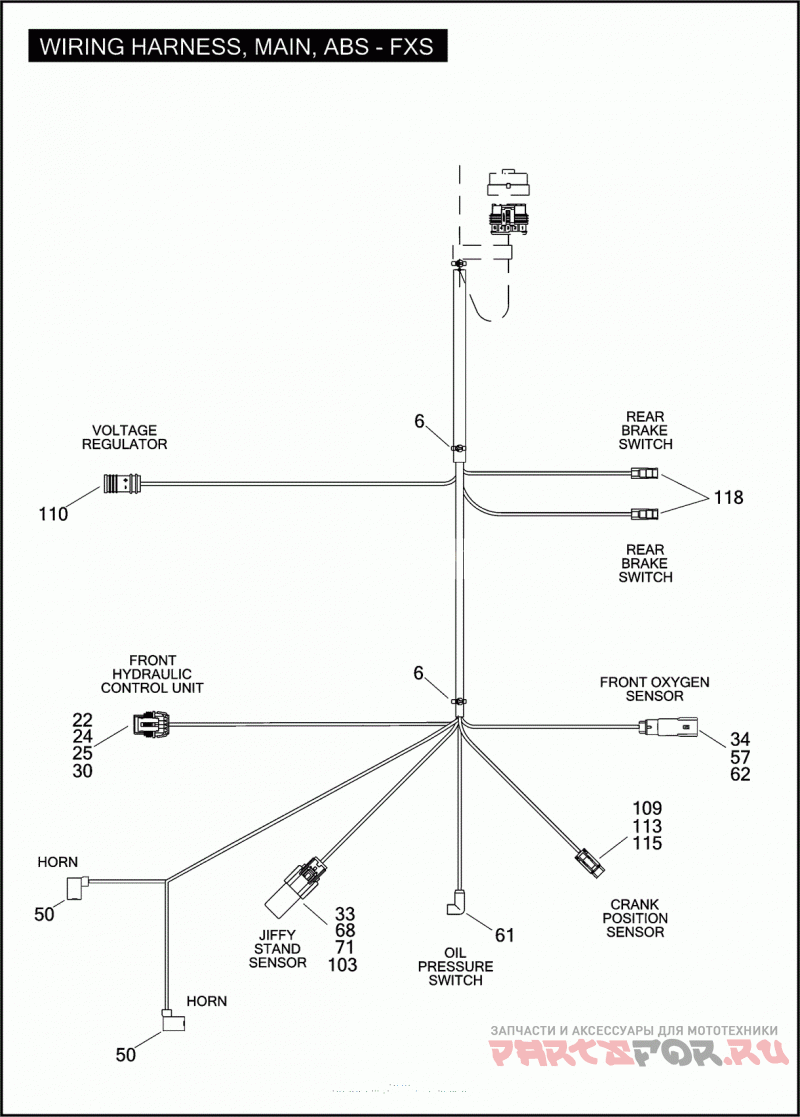

WIRING HARNESS, MAIN, ABS - FXS (5 OF 5)

Harley Davidson FXS 103 1JPV BLACKLINE (2012)

Harley Davidson
#oem кодцена
71065-12
WIRING HARNESS, MAIN (CONTINUED)
95
72905-11
HOUSING 2-WAY PIN
96
72907-11
HOUSING 4-WAY PIN
97
72909-11
TERMINAL PIN, #20-21 AWG
98
73104-96BK
HOUSING 4-PIN
99
73106-96BK
HOUSING 6-PIN
100
73154-96BK
HOUSING 4-WAY, SOCKET
101
73190-96
TERMINAL PIN, #16-20 AWG
102
73191-96
TERMINAL SOCKET, #16-20 AWG
103
73213-07
RETAINER X-MAS TREE CLIP
104
73229-11
BRACKET FUSE BLOCK MOUNTING
105
73304-04
TERMINAL .31 SOCKET, #10 AWG
106
73305-04
SEAL WIRE #10 AWG (BLUE)
107
74103-98BK
HOUSING 3-WAY PIN
108
74104-98BK
HOUSING 4-WAY PIN(BLACK)
109
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
110
74120-08
DC LEAD ASSEMBLY
111
74143-98
SECONDARY LOCK 3-WAY PIN
112
74144-98
SECONDARY LOCK 4-WAY PIN
113
74152-98
SECONDARY LOCK 2-WAY SOCKET
114
74190-98
TERMINAL PIN, #16-20 AWG
115
74191-98
TERMINAL SOCKET
116
69200010
CONNECTOR 4-WAY PIN (GRAY)
117
69200012
BRACKET PIN HOUSING
118
69200238
TERMINAL INSULATED
