  5. FLTRXSE 1TC8 CVO ROAD GLIDE (2012)

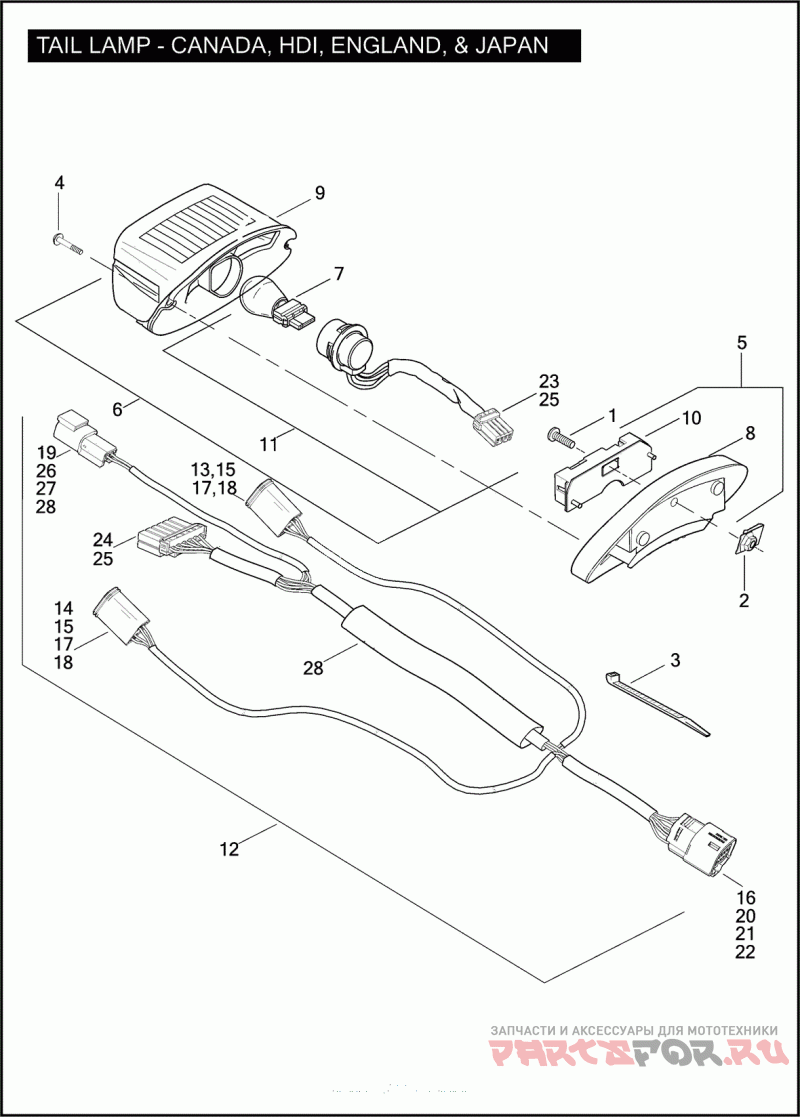

TAIL LAMP - CANADA, HDI, ENGLAND, & JAPAN

Harley Davidson FLTRXSE 1TC8 CVO ROAD GLIDE (2012)

Harley Davidson
#oem кодцена
1
3022A
Деталь SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
2
7964
Деталь J-NUT
3
10006
Деталь CABLE STRAP
3
56073-83
Деталь CLIP RETAINER 2 PER SIDE TURN SIGNAL WIRES (NOT ILLUSTRATED)
4
68026-99
Деталь SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
5
68066-99A
Деталь TAIL LAMP BASE ASSEMBLY W/ 68296-99A & 68830-99A
6
68142-04
Деталь LIGHT ASSEMBLY TAIL LAMP, W/ 68558-03 & 69187-03A
7
68167-04
Деталь BULB TAIL LIGHT, WEDGE MOUNT
8
68296-99A
Деталь TAIL LAMP BASE (CHROME)
9
68558-03
Деталь LENS TAIL LAMP, W/ 68026-99
10
68830-99A
Деталь CIRCUIT BOARD & COVER
11
69187-03A
Деталь BULB SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK, & 73191-96
12
70450-09
Деталь HARNESS REAR LIGHTING, W/ 3, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 25, 26, 27 & 28
13
72114-94BK
Деталь SOCKET HOUSING 4-WAY (BLACK)
14
72154-94
Деталь SECONDARY LOCK 4-WAY SOCKET
15
72168-07
Деталь TERMINAL SOCKET 16-20GA
16
72191-94
Деталь TERMINAL SOCKET
17
72195-94
Деталь SEAL PIN
18
72199-94
Деталь ANCHOR T-STUD
19
72272-07
Деталь TERMINAL SOCKET 14-16GA
20
72473-07
Деталь SEAL PIN
21
72479-07BK
Деталь SOCKET HOUSING 8-WAY (BLACK)
22
73154-96BK
Деталь SOCKET HOUSING 4-PLACE
23
73156-96BK
Деталь SOCKET HOUSING 6-PLACE
24
73191-96
Деталь SOCKET TERMINAL #16-20 AWG
25
74102-98BK
Деталь PIN HOUSING 2-WAY (BLACK)
26
74142-98
Деталь SECONDARY LOCK 2-WAY PIN
27
74190-98
Деталь TERMINAL PIN 16-20AWG
28
69200018
Деталь CONDUIT SELF-ADHESIVE, 50FT.
