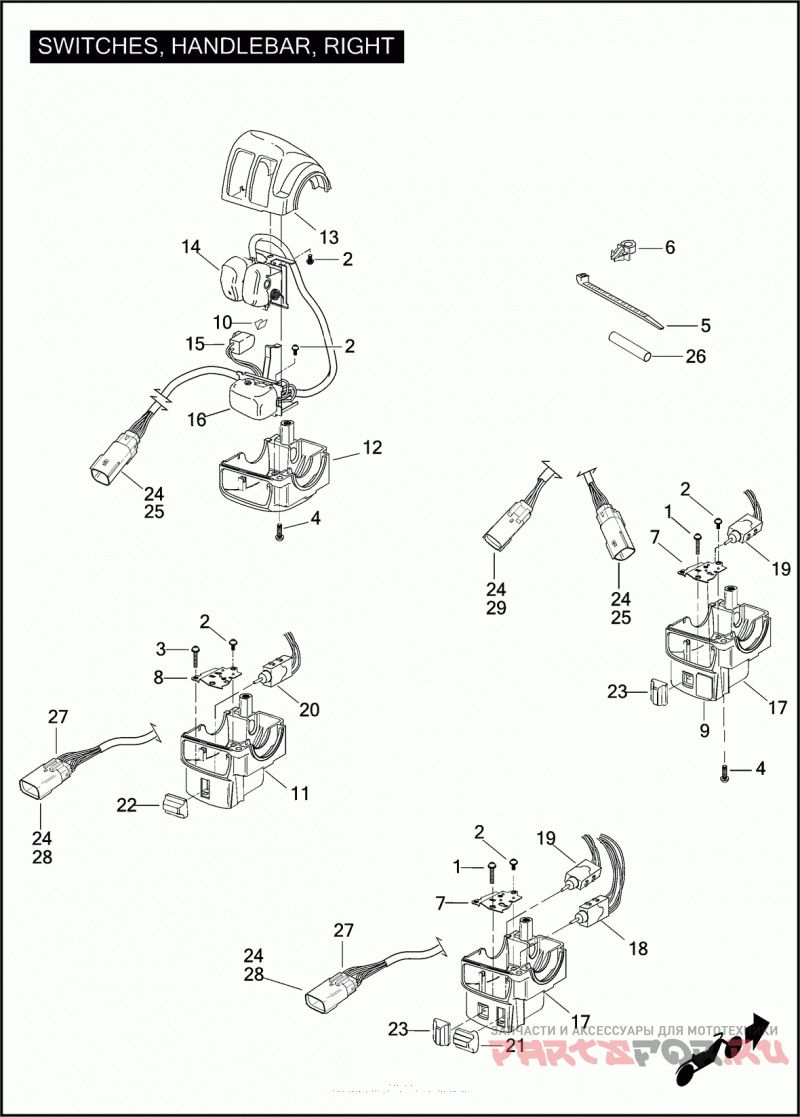

SWITCHES, HANDLEBAR, RIGHT

Harley Davidson FLTRX 1KHM ROAD GLIDE CUSTOM (2012)

Harley Davidson
#oem кодцена
1
2559
SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER
2
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
2960
SCREW NO. 6-32 X 5/8 PAN HD.
4
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
5
10181
CABLE STRAP NON-CRUISE
6
70345-84
RETAINER WIRING
7
70375-96
BRACKET SWITCH, LOWER RIGHT, FBM/KBM/KHM CRUISE OPTIONAL
8
70376-96
BRACKET SWITCH, LOWER RIGHT, NON-CRUISE
10
71587-04
V-CLIP
11
71553-08
HOUSING LOWER RIGHT, NON-CRUISE
13
71564-96
HOUSING UPPER RIGHT
14
71684-06A
SWITCH KIT ENGINE STOP/START, W/ 10181 & 72266-94
15
71621-08
STOPLAMP SWITCH KIT W/ 10181 & 72266-94
16
71683-06A
SWITCH KIT RIGHT TURN SIGNAL, W/ 10181 & 72266-94
17
71595-08
HOUSING LOWER RIGHT, W/CRUISE CONTROL, FBM/FFM/KBM/KHM CRUISE OPTIONAL
18
71787-08
SWITCH KIT MODE SELECT UP/DOWN, W/ 10181 & 72266-94, FFM/KBM/KHM CRUISE OPTIONAL
19
71788-08
SWITCH KIT CRUISE CONTROL, SET/RESUME, W/ 10181 & 72266-94, FBM/KBM/KHM WITH CRUISE
20
71789-08
SWITCH MODE SELECT UP/DOWN, W/ 10181 & 72266-94, NON-CRUISE
21
71822-98
KNOB MODE SELECT UP/DOWN, KBM/KHM CRUISE OPTIONAL
22
71823-98
KNOB MODE SELECT UP/DOWN, NON-CRUISE
23
71825-96A
KNOB CRUISE CONTROL, SET/RESUME, FBM/KBM/KHM CRUISE OPTIONAL
24
72169-07
TERMINAL PIN, 16-20 AWG, NON-CRUISE
26
72266-94
HEAT SHRINK TUBE DUAL WALL, .3 X 2 INCHES, CRUISE OPTIONAL
27
72473-07
SEAL PIN NON-CRUISE
28
72488-07BK
HOUSING 12-WAY (BLACK)
