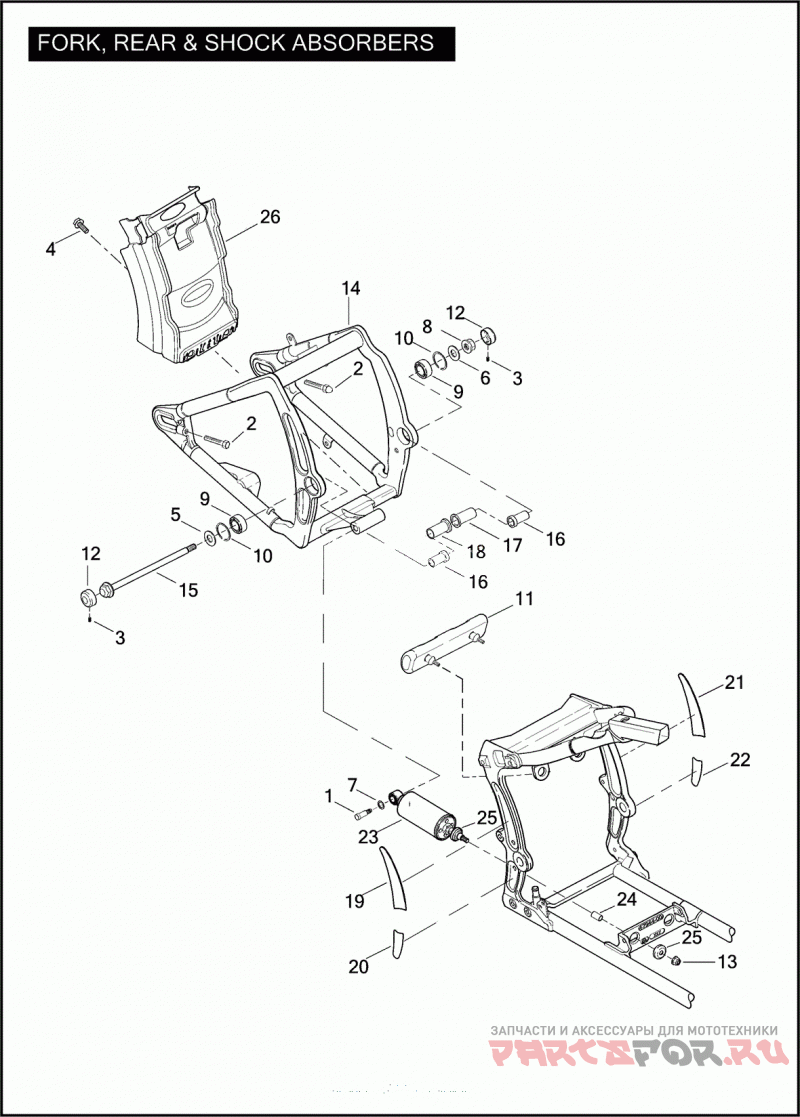

FORK, REAR & SHOCK ABSORBERS

Harley Davidson FLSTSE3 1PY9 CVO SOFTAIL CONVERTIBLE (2012)

Harley Davidson
#oem кодцена
1
4074A
BOLT 1/2-13 X 2 HEX HD., SHOULDER
2
4433
ADJUSTER SCREW RIGHT SIDE
2
8195
ADJUSTER SCREW LEFT SIDE
3
4695
SET SCREW 1/4-20 X 1/4 HEX DRIVE
4
4867
SCREW HEX HD., SOCKET
5
6534
WASHER 3/8 X 1-3/4 X 3/32 HARDENED
6
6535
WASHER 5/16 X 1-1/4 X 3/32 HARDENED
7
6724
WASHER 21/32 X 1-1/16 X 1/16
8
7479
NUT 5/8-11 FLANGE (GRADE 6)
9
9209
BEARING W/ 11282
10
11282
RETAINING RING FORK BEARING
11
11514
BUMPER REAR FORK
12
44502-03
COVER PIVOT
13
45764-00
LOCKNUT FLANGE
14
49404-10CCR
REAR FORK (ABYSS BLUE)
14
49404-10COZ
REAR FORK (CRIMSON RED SUNGLO)
14
49404-12DLL
REAR FORK (TINTED DENIM CLEAR)
15
47610-08
PIVOT SHAFT
16
48048-00A
BUSHING REAR FORK
17
48076-08
SPACER REAR FORK, LEFT HAND
18
48619-07A
SPACER REAR FORK, RIGHT HAND
19
48185-10CCR
INSERT RIGHT HAND/TOP FRAME (ABYSS BLUE)
19
48185-10COZ
INSERT RIGHT HAND/TOP FRAME (CRIMSON RED SUNGLO)
19
48185-12DLL
INSERT RIGHT HAND/TOP FRAME (TINTED DENIM CLEAR)
20
48186-10CCR
INSERT RIGHT HAND/BOTTOM FRAME (ABYSS BLUE)
20
48186-10COZ
INSERT RIGHT HAND/BOTTOM FRAME (CRIMSON RED SUNGLO)
20
48186-12DLL
INSERT RIGHT HAND/BOTTOM FRAME (TINTED DENIM CLEAR)
21
48194-10CCR
INSERT LEFT HAND/TOP FRAME (ABYSS BLUE)
21
48194-10COZ
INSERT LEFT HAND/TOP FRAME (CRIMSON RED SUNGLO)
21
48194-12DLL
INSERT LEFT HAND/TOP FRAME (TINTED DENIM CLEAR)
22
48195-10COZ
INSERT LEFT HAND/BOTTOM FRAME (ABYSS BLUE)
22
48195-10CCR
INSERT LEFT HAND/BOTTOM FRAME (CRIMSON RED SUNGLO)
22
48195-12DLL
INSERT LEFT HAND/BOTTOM FRAME (TINTED DENIM CLEAR)
23
54549-04
SHOCK ABSORBER W/ 45764-00, 56182-00A & 56183-00
24
56182-00A
Втулка
25
56183-00
WASHER W/ GROMMET
26
60456-11
Защита
