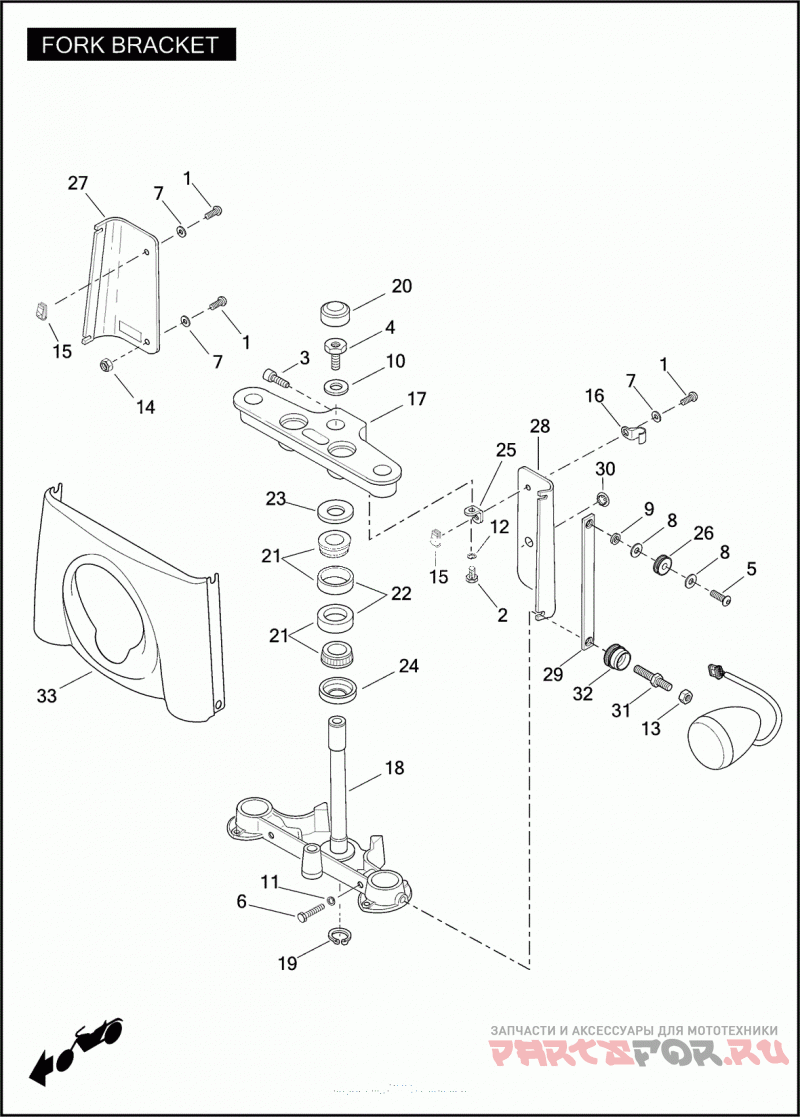

FORK BRACKET

Harley Davidson FLSTSE3 1PY9 CVO SOFTAIL CONVERTIBLE (2012)

Harley Davidson
#oem кодцена
1
941
SCREW 1/4-20 X 5/8 SOCKET BUTTON HD. (GRADE 8)
2
3953W
BOLT 5/16-24 X 1/2 HEX HD. (GRADE 5)
3
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
4
4453
BOLT 1/4-20 X 7/8 HEX HD. SPECIAL WITH TAPPED HOLE
5
4481
SCREW 5/16-24 X 1 SOCKET BUTTON HD., W/LOCKPATCH (GRADE 8)
6
4945
SCREW 7/16-20 UNRF X 1-1/4 HEX HD. (ZINC PLATE)
7
6119
WASHER 1/4 X 9/16 X 1/16
8
6235
WASHER 1/4 X 23/32 X 1/16
9
6314W
WASHER 21/64 X 9/16 X 1/8 (ZINC)
10
6655
WASHER 5/8 X 1-1/2 X 7/64
11
7039
LOCKWASHER 7/16
12
7041
LOCKWASHER 5/16
13
7753
NUT 5/16-24 X 1/4 X 1/2 (GRADE 2)
14
7792
NUT 1/4-20 X 1/4 (GRADE 2)
15
8108
SPEEDNUT 1/4-20
16
38902-08
Зажим
17
45456-86B
BRACKET UPPER
18
45605-00A
STEM & BRACKET ASSEMBLY W/ 45611-86, 48365-48A & LOWER BEARING CONE
19
45611-86
RETAINING RING FORK STEM
20
45670-80A
CAP FORK STEM
21
48300-60
ROLLER BEARING W/ CUP
22
48315-60
BEARING CUP
23
48361-80
DUST SHIELD BEARING, UPPER
24
48365-48A
DUST SHIELD BEARING, LOWER
25
50991-86
BRACKET FRONT PANEL
26
67621-94
Втулка
27
67887-91A
BACK PANEL RIGHT REAR (CHROME)
28
67888-91A
BACK PANEL LEFT REAR W/ SWITCH HOLE, W/ 90357-89 (CHROME)
29
67891-99
MOULDING KIT TRIPLE CLAMP COVER
30
90357-89
Заглушка
31
52300089
STUD, DOCKING TURN SIGNAL
32
52300130
DOCKING ASSEMBLY TURN SIGNAL (CHROME)
33
61300085
FRONT PANEL (CHROME)
