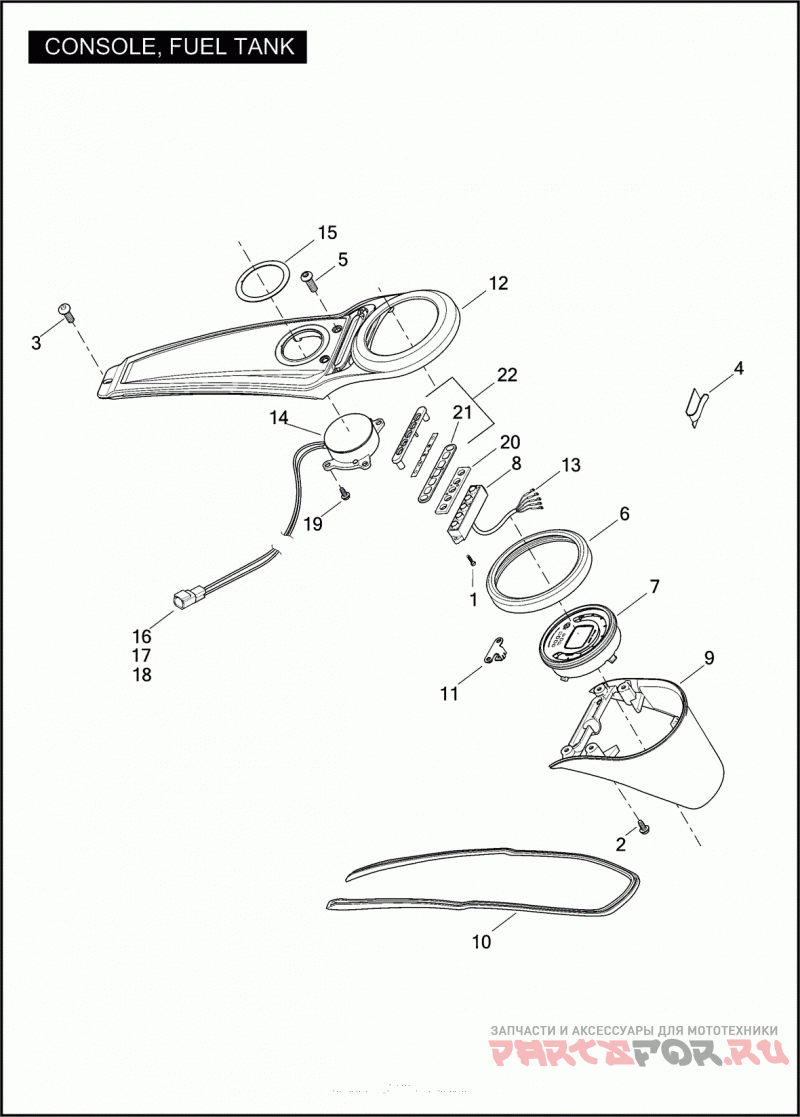

CONSOLE, FUEL TANK

Harley Davidson FLSTSE3 1PY9 CVO SOFTAIL CONVERTIBLE (2012)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
3
4620
SCREW NO. 10-24 X 5/8 HEX SOCKET BUTTON HD.
4
10103
CLIP ADHESIVE, LARGE
5
53202-04
SCREW 1/4-20 X 3/4 CAP INTERNAL HEX
6
67223-00A
GASKET SPEEDOMETER
7
70900001A
DIGITAL SPEEDO/ANALOG TACH, 5in.
8
71104-11
HARNESS ASSEMBLY INDICATOR, W/ 72662-11
9
71758-11A
CONSOLE FUEL TANK, BOTTOM (CHROME)
10
71759-10
TRIM INSTRUMENT PANEL
11
71786-10
NUT PLATE ASSEMBLY CONSOLE MOUNT
12
71815-11
CONSOLE FUEL TANK, TOP (CHROME)
12
72448-10
CONNECTOR 12 PIN HOUSING (NOT SHOWN)
13
72662-11
TERMINAL SOCKET, #22 AWG
14
73359-11
LED CONSOLE LIGHT CVO LOGO, W/ 74102-98BK, 74142-98 & 74190-98
15
73423-11
NAMEPLATE KEYLESS, GREY
16
74102-98BK
HOUSING 2-WAY PIN (BLACK)
17
74142-98
SECONDARY LOCK 2-WAY PIN
18
74190-98
TERMINAL PIN, #16-20 AWG
19
10200010
Винт
20
25700059
RUBBER GASKET INDICATOR LIGHTS
21
69200155
GASKET INDICATOR LIGHTS
22
70900252
BEZEL ASSEMBLY HOUSING, WARNING LAMP, W/ 69200155
