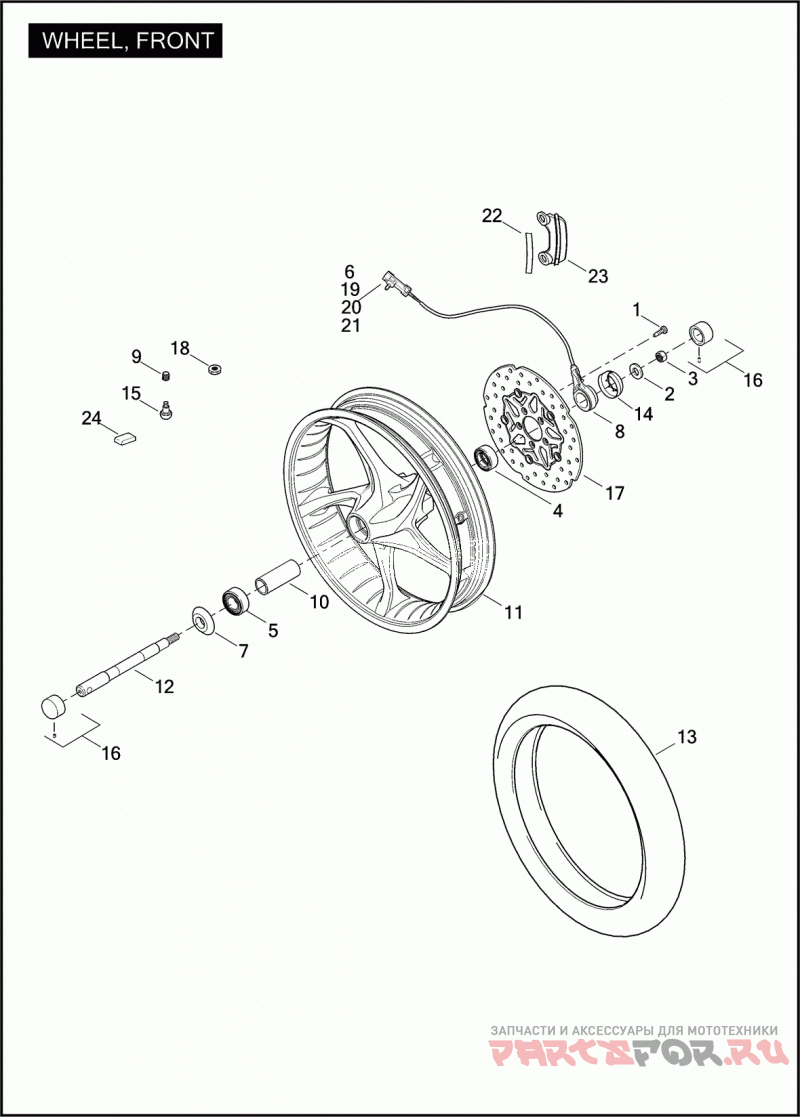

Колесо переднее

Harley Davidson FLSTSE3 1PY9 CVO SOFTAIL CONVERTIBLE (2012)

Harley Davidson
#oem кодцена
1
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
2
6594
WASHER 5/8 X 1-1/8 X 3/32
3
7813A
NUT 5/8-18 X 9/16 X 15/16 (GRADE 2)
4
9252
BALL BEARING 25 MM, W/ ENCODER, ABS
5
9276A
BALL BEARING 25 MM
6
10147
CLIP CONNECTOR
7
11924
SPACER RIGHT SIDE OF WHEEL
8
40982-11
SENSOR WHEEL SPEED, ABS, W/ 10147, 72607-08, 72608-08 & 72639-10
9
41148-98
KIT, VALVE STEM CAPS BAR & SHIELD (SET OF 2)
10
41349-07
SLEEVE SPACER
11
41503-10
WHEEL ASSEMBLY FRONT, 16 IN., W/O BEARINGS & SLEEVE (CHROME)
12
41545-07A
AXLE FRONT
13
41999-07B
TIRE 18 IN.
14
42106-11
COVER WHEEL SPEED SENSOR
15
43206-01
VALVE STEM ASSEMBLY
16
44117-07A
KIT, COVER AXLE NUT, W/ SCREWS (SET OF 2)
17
48993-10
BRAKE DISC KIT FRONT
18
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
19
72607-08
HOUSING 2-WAY PIN
20
72608-08
TERMINAL PIN, #16-20 AWG
21
72639-10
SECONDARY LOCK 2-WAY
22
11100019
TAPE WHEEL SPEED SENSOR BRACKET
23
32700002
BRACKET WHEEL SPEED SENSOR
24
95615-04
WEIGHT 1/2 OZ., CAST WHEELS (CHROME)
