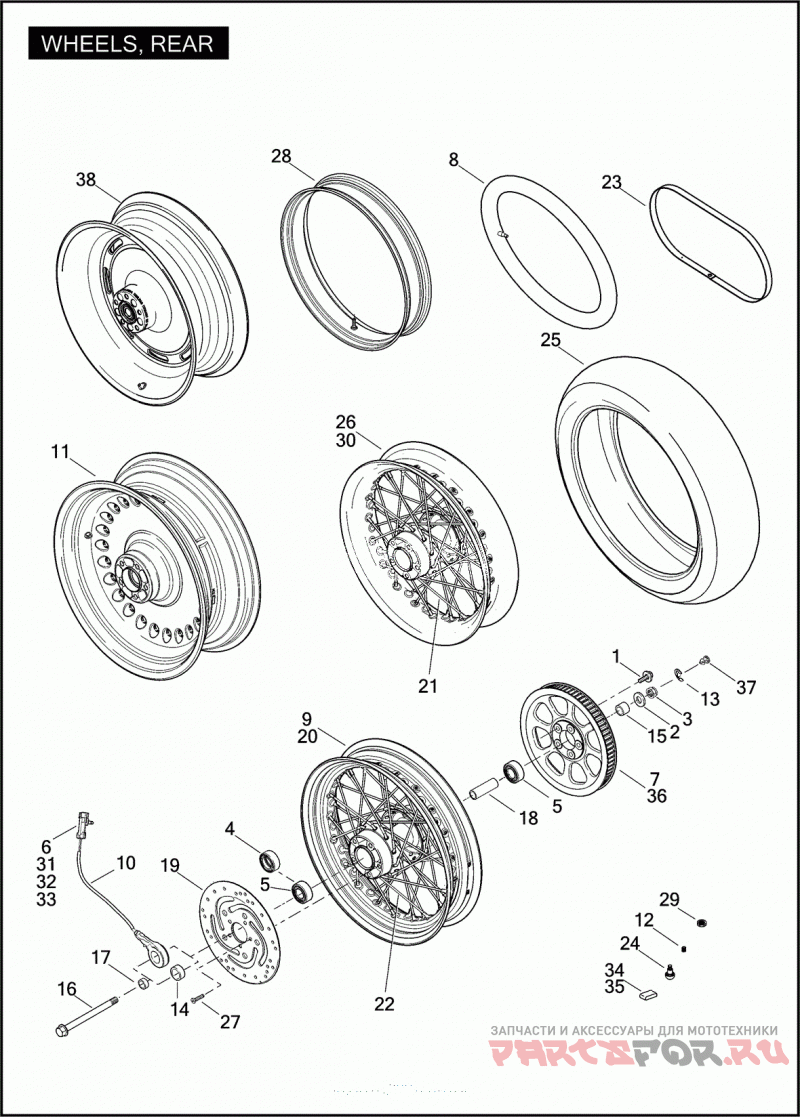

Колесо заднее

Harley Davidson FLSTF 103 1BXV FAT BOY (2012)

Harley Davidson
#oem кодцена
1
3109
SCREW 7/16-14 X 2-5/8 HEX CAP W/WASHER, LOCK PATCH
2
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
3
8020
NUT M24 X 2.0 X 15
4
9252
BALL BEARING W/ ENCODER, ABS
5
9276A
BALL BEARING 25 MM (NON-ABS)
6
10147
CLIP CONNECTOR, ABS
7
40325-07
SPROCKET REAR, 66 T (BLACK)
10
40985-11
SENSOR WHEEL SPEED, ABS, W/ 10147, 72607-08, 72608-08 & 72639-10
11
40900181
WHL,RR,HOLE,CLR,17X6
11
40900180
WHEEL ASSEMBLY REAR, 17 IN. DISC, W/O BEARINGS & SLEEVE (CHROME)
12
41123-79
VALVE CAP
13
41229-08
RETAINING PIN
14
41242-08
SPACER WHEEL, NON-ABS
15
41359-08
SPACER REAR AXLE, LEFT
16
41641-08
AXLE ASSEMBLY
17
41694-08
SPACER REAR WHEEL ADJUSTMENT
18
41696-08
SLEEVE SPACER
19
41797-00
BRAKE DISC REAR
24
43157-83A
VALVE STEM ASSEMBLY
25
43242-06B
TIRE 17 IN.
27
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
29
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
31
72607-08
HOUSING 2-WAY PIN
32
72608-08
TERMINAL PIN, #16-20 AWG
33
72639-10
SECONDARY LOCK 2-WAY
35
95595-84B
WHEEL WEIGHT 5 grams (plain)
37
40964-08
COVER AXLE NUT (HDI)
