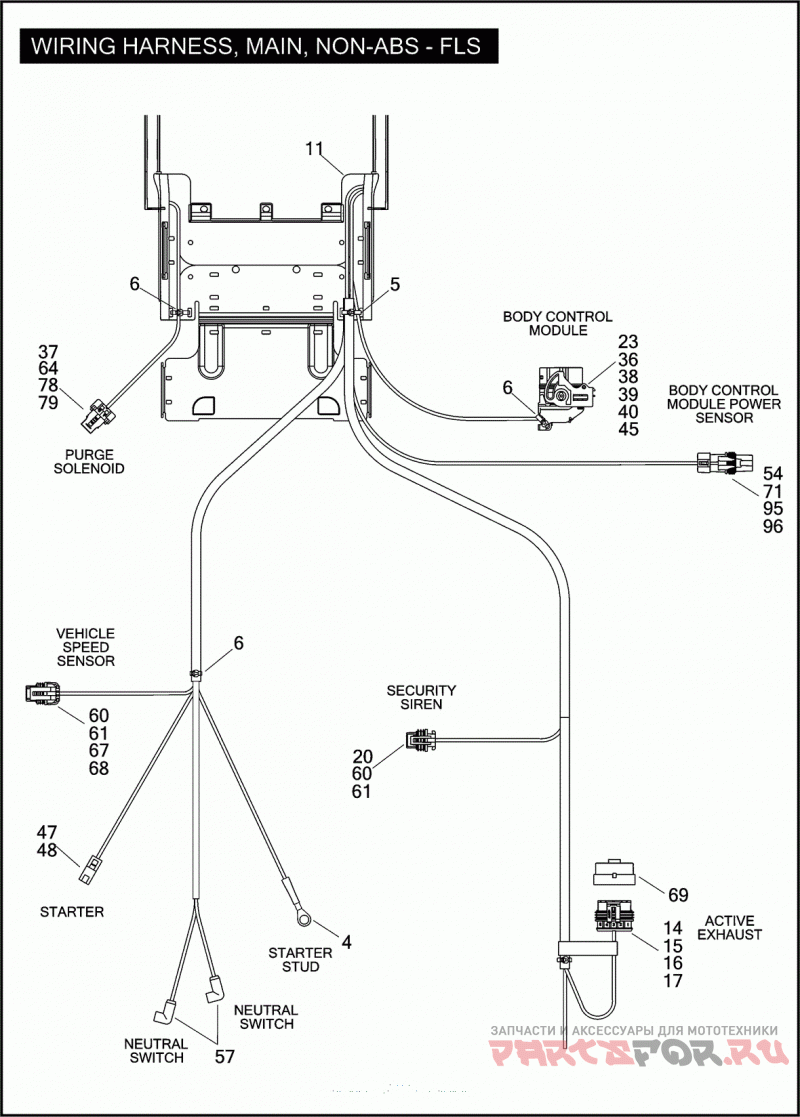

WIRING HARNESS, MAIN, NON-ABS - FLS (4 OF 5)

Harley Davidson FLS 103 1JRV SOFTAIL SLIM (2012)

Harley Davidson
#oem кодцена
69200318
WIRING HARNESS, MAIN (CONTINUED)
61
72486-08
WIRE SEAL #20 AWG (GREEN)
62
72499-07
WIRE SEAL #20-22 AWG (GREEN)
63
72512-07BK
HOUSING 3-WAY SOCKET (BLACK)
64
72518-01
HOUSING SOCKET, 2-WAY (RED)
65
72519-09BK
DUST CAP 3-WAY SOCKET
66
72533-06
DUST CAP 2-PIN
67
72543-07BK
HOUSING 3-WAY SOCKET (BLACK)
68
72544-07
SECONDARY LOCK 3-WAY FEMALE
69
72553-07
DUST CAP 5-PIN
70
72569-08
TERMINAL SOCKET, #20-22 AWG
71
72575-11
SECONDARY LOCK
72
72582-11
FUSE BLOCK MAXI/MINI
73
72586-11
COVER FUSE BLOCK, MAXI/MINI
74
72587-11
SECONDARY LOCK FUSE BLOCK, MAXI/MINI
75
72595-11
SEAL FUSE BLOCK, MAXI/MINI
76
72596-11
BRACKET ELECTRICAL CONNECTOR, RH
77
72597-11
BRACKET ELECTRICAL CONNECTOR, LH
78
72609-08
SECONDARY LOCK 2-WAY SOCKET (BLACK)
79
72610-08
SEAL CABLE, #18-20 AWG (WHITE)
80
72664-12A
HOUSING 18-WAY, SOCKET, KEY A (BLACK)
81
72665-12A
HOUSING 18-WAY SOCKET, KEY B (BLACK)
82
72666-12
TERMINAL SOCKET, #18-20 AWG (SILVER)
83
72720-07
HOUSING 2-WAY SOCKET
84
72721-07
TERMINAL SOCKET, #18-20 AWG
