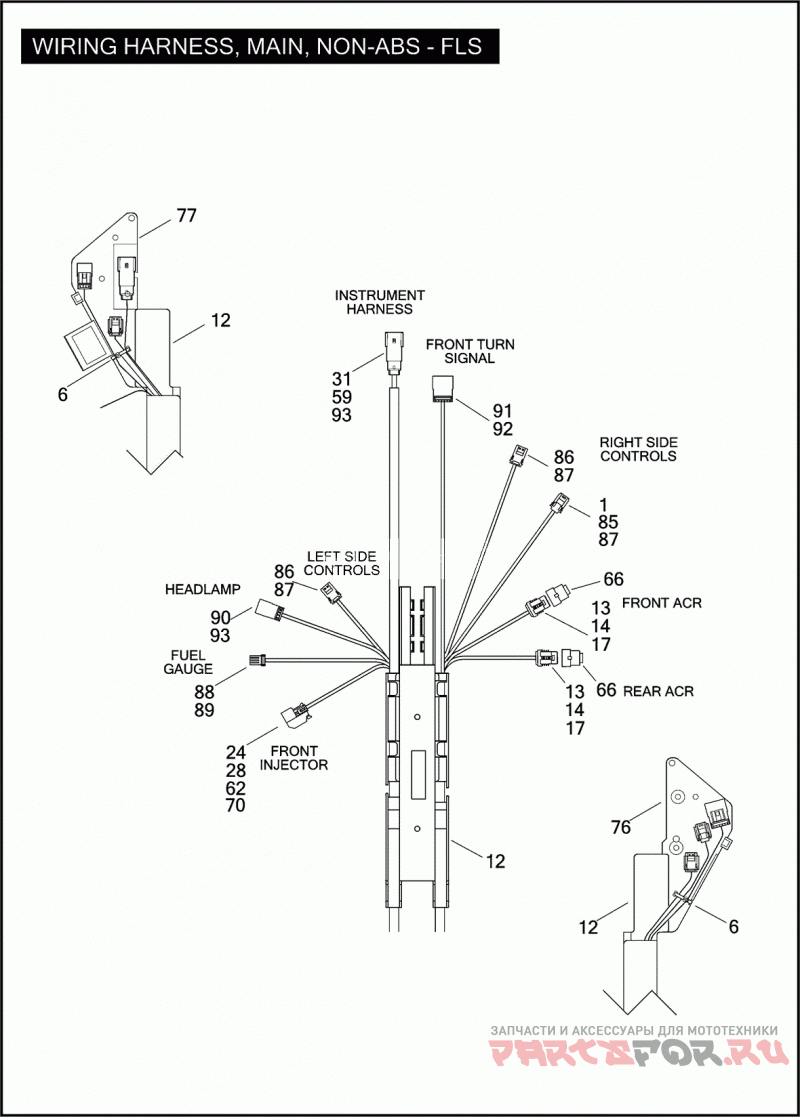

WIRING HARNESS, MAIN, NON-ABS - FLS

Harley Davidson FLS 103 1JRV SOFTAIL SLIM (2012)

Harley Davidson
#oem кодцена
69200318
WIRING HARNESS, MAIN
1
5118
SEAL PIN
2
6990
PLUG WEATHER, 6-WAY PIN
3
9819
TERMINAL RING .25 STUD, #12 AWGX2
4
9842
TERMINAL RING .31 10-12 GA
5
10006
CABLE STRAP
6
10065
CABLE STRAP
7
10287
CABLE STRAP X-MAS TREE
8
11785
FASTENER PUSH-IN
9
70974-08A
LOOM SHIELD WIRE HARNESS
10
70976-06
WIRE GUIDE TPS
11
70982-08
WIRE SHIELD
12
71044-11
WIRE TROUGH
13
72007-05
HOUSING 2-WAY SOCKET
14
72010-05
WIRE SEAL #22-26 AWG (GREEN)
15
72012-07
HOUSING 5-WAY SOCKET
16
72014-07
SEAL PIN
17
72024-08
TERMINAL SOCKET, #20-22 AWG
18
72062-06
HOUSING 2-WAY SOCKET
19
72063-06
HOUSING 2-WAY SOCKET
20
72064-06
HOUSING 3-WAY SOCKET
