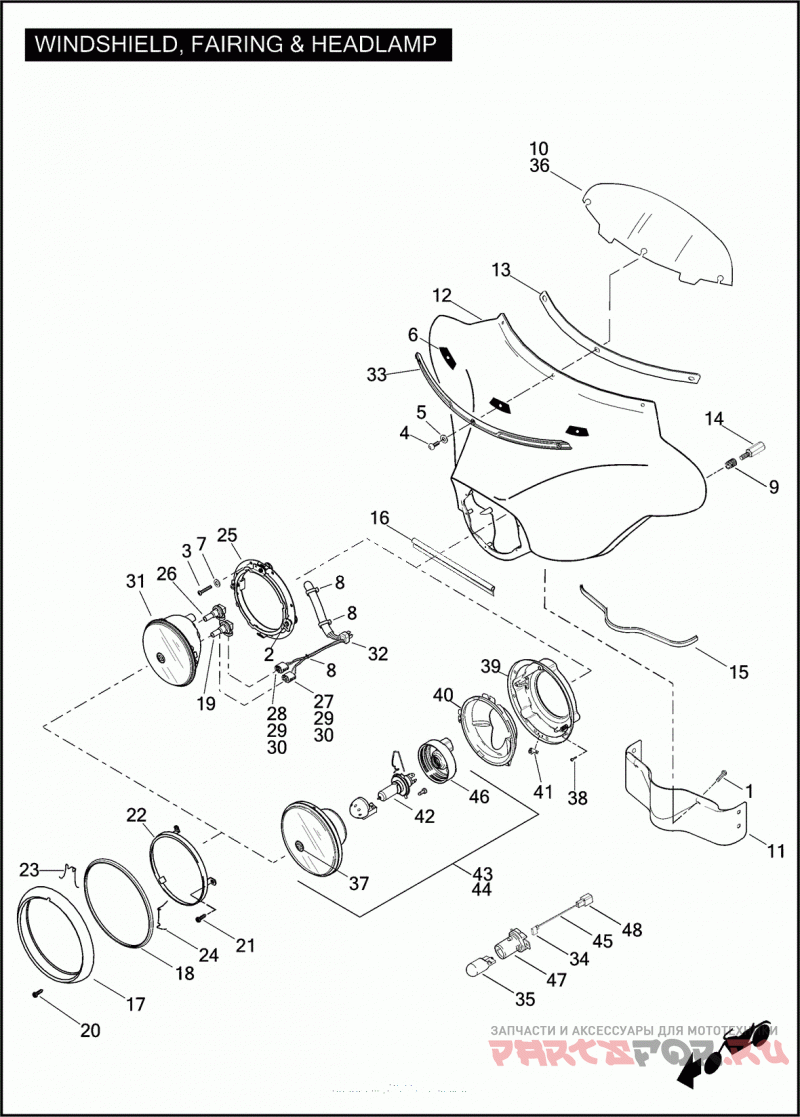

WINDSHIELD, FAIRING & HEADLAMP

Harley Davidson FLHXSE3 1PZ8 CVO STREET GLIDE (2012)

Harley Davidson
#oem кодцена
1
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
2
3088
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (CHROME)
3
4790
SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING
4
4976
SCREW 1/4-20 X 3/4 TORX SOCKET BUTTON HD., STAINLESS STEEL
5
6383
WASHER 17/64 X 1/2 X 1/16 STAINLESS STEEL
6
6549
PAD RUBBER
7
6717
WASHER NO. 6 X 3/8 X 3/64
8
10006
CABLE STRAP
9
16585-96
INSERT THREADED
10
57185-05
Ветровое стекло
11
58208-96A
SKIRT OUTER FAIRING (CHROME)
12
58236-96
FAIRING OUTER (PRIME)
12
57000076DKW
FAIRING OUTER (RUBY RED/TYPHOON MAROON)
12
57000076DKX
FAIRING OUTER (HOT CITRUS/ANTIQUE GUNSTOCK)
12
57000076DKY
FAIRING OUTER (DARK SLATE/BLACK DIAMOND)
13
58247-96
CUSHION TAPE WINDSHIELD MOUNTING
14
58949-96
NUT EXTENSION
15
62786-96
TRIM STRIP SKIRT
16
62787-96
SEAL FAIRING SKIRT
17
67712-83B
DOOR chrome
18
67716-60C
GASKET headlamp door (used w/ 67702-81A)
19
67717-01
BULB HIGH BEAM HALOGEN
20
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
21
67721-48
SCREW HEADLAMP RETAINER RING
22
67726-08
RETAINING RING HEADLAMP
22
67001-08
RETAINING RING KIT HEADLAMP, W/ 67721-48, 67726-08, & 67732-48 (DOMESTIC)
23
67778-60A
SPRING TOP
24
67780-60A
SPRING BOTTOM
25
68124-04B
MOUNTING RING ASSEMBLY W/ 3088
26
68881-01
BULB LOW BEAM HALOGEN
27
72449-01
HOUSING 2-WAY (BLACK)
28
72450-01
HOUSING 2-WAY (GREY)
29
72527-01
SOCKET TERMINAL 18-20 AWG
30
72633-02
SEAL 14-16 AWG (WHITE)
31
73271-11
HEADLAMP HALOGEN
31
67700032
HALOGEN HEADLAMP KIT 7 in., w/ 6717, 10006, 68124-04A, 73271-11 & 73272-11 (Domestic & Canada) (replaces 67894-04A)
32
73272-11
HARNESS W/ 8, 27, 28, 29 & 30
33
61400042
TRIM ASSEMBLY WINDSHIELD, W/ 6549
34
9898
TERMINAL FLAG, FEMALE, 14-16 GAUGE (ENGLAND, HDI, JAPAN, AUSTRALIA)
35
53436-97
BULB POSITION LAMP (ENGLAND, HDI, JAPAN, AUSTRALIA)
36
57699-11
WINDSHIELD (ENGLAND, HDI, JAPAN, AUSTRALIA)
37
67668-05
MEDALLION LENS (ENGLAND, HDI, JAPAN, AUSTRALIA)
38
67724-71
ADJUSTING SCREW HEADLAMP (ENGLAND, HDI, JAPAN, AUSTRALIA)
39
67728-02A
BUCKET ASSEMBLY W/ 67724-71 & 67782-60A (ENGLAND, HDI, JAPAN, AUSTRALIA)
40
67732-08
MOUNTING RING HEADLAMP (ENGLAND, HDI, JAPAN, AUSTRALIA)
41
67782-60A
BRACKET DOOR (ENGLAND, HDI, JAPAN, AUSTRALIA)
42
68329-03
BULB HB2/H4 (ENGLAND, JAPAN, AUSTRALIA)
43
68344-05A
REFLECTOR ASSEMBLY LEFT DIP (AUSTRALIA, ENGLAND, JAPAN)
44
68345-05A
REFLECTOR ASSEMBLY RIGHT DIP (HDI, ASIA-PACIFIC)
45
68359-05
HARNESS JUMPER POSITION BULB, W/ 9898 & 72253-94 (ENGLAND, HDI, JAPAN, AUSTRALIA)
46
68380-05
BOOT (ENGLAND, HDI, JAPAN, AUSTRALIA)
47
68653-05
SOCKET POSITION LAMP (ENGLAND, HDI, JAPAN, AUSTRALIA)
48
72253-94
TERMINAL 18-20 GA (ENGLAND, HDI, JAPAN, AUSTRALIA)
