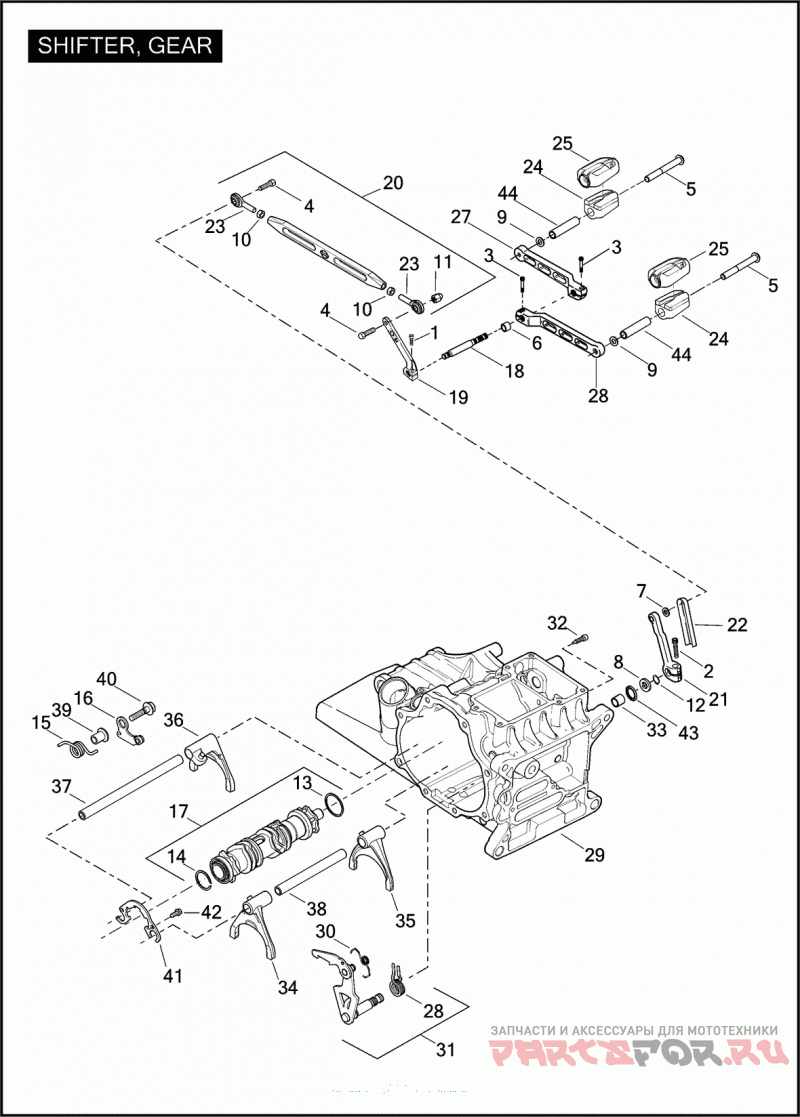

SCREW 1/4-20 X 7/8 SEMS HEX HD. (GRADE 8)

SCREW 5/16-24 X 1 SOCKET HD. (GRADE 8)

SCREW 5/16-18 X 3/4 SOCKET HD. (GRADE 8)

SCREW 5/16-24 X 59/64 HEX HD.

SCREW 5/16-24 X 2-3/4 TORX BUTTON HD.

Проставка

SPACER SHIFTER COVER

WASHER 29/64 X 1-1/8 X 1/16

LOCKWASHER 5/16

NUT 5/16-18 POLISHED STAINLESS STEEL

ACORN NUT 0.312-24 (STAINLESS)

RING RETAINING, EXTERNAL

RING SHIFT CAM RETAINING

RING SHIFT CAM RETAINING

SPRING DETENT

DETENT ARM ASSEMBLY W/ 33389-07

SHIFTER CAM ASSEMBLY W/ 11389, 11575 & BEARING

Вал

LEVER GEARSHIFT (CHROME)

SHIFTER LINKAGE KIT W/ 4192, 5826, 7326, 7904, 33899-08 & 33890-99A

LEVER SHIFTER ROD

COVER SHIFTER ROD

ROD END SELF-ALIGNING

TREAD SHIFTER PEG

COVER SHIFTER PEG (CHROME)

SPRING SHIFTER RETURN

LEVER SHIFTER HEEL (CHROME)

LEVER SHIFTER TOE (CHROME)

TRANSMISSION CASE SUBASSEMBLY W/ 3594, 8963, 8967, 9701, 11161, 12074, 16574-99A, 35082-07, 35122-06, 35186-06, 35241-06, 35242-06, 37101-84B, 40659-06 & 66290-06 (GRANITE)

SPRING RATCHET LEVER

SHIFT MECHANISM W/ 34064-00C, & 34987-06

CENTERING SCREW SHIFT LEVER

Гильца

FORK SHIFT 1 - 2

FORK SHIFT 3 - 4

FORK SHIFT 5 - 6

SHAFT 5 - 6 SHIFT FORK

SHAFT 1 - 2 & 3 - 4 SHIFT FORK

Гильца

SCREW 5/16-18 X 1-1/4 HEX FLANGE HD.

LOCK PLATE SHIFT CAM

GEAR PACK, FORKS & DRUM SUBASSEMBLY W/ 1, 2, 3, 4, 7, 8, 9, 11, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 7340, 35256-08A, SHIFTER CAM AND FORKS (GRANITE)

SCREW NO. 10-24 X 1/2 HEX HD. (GRADE 8)

Сальник

Гильца
