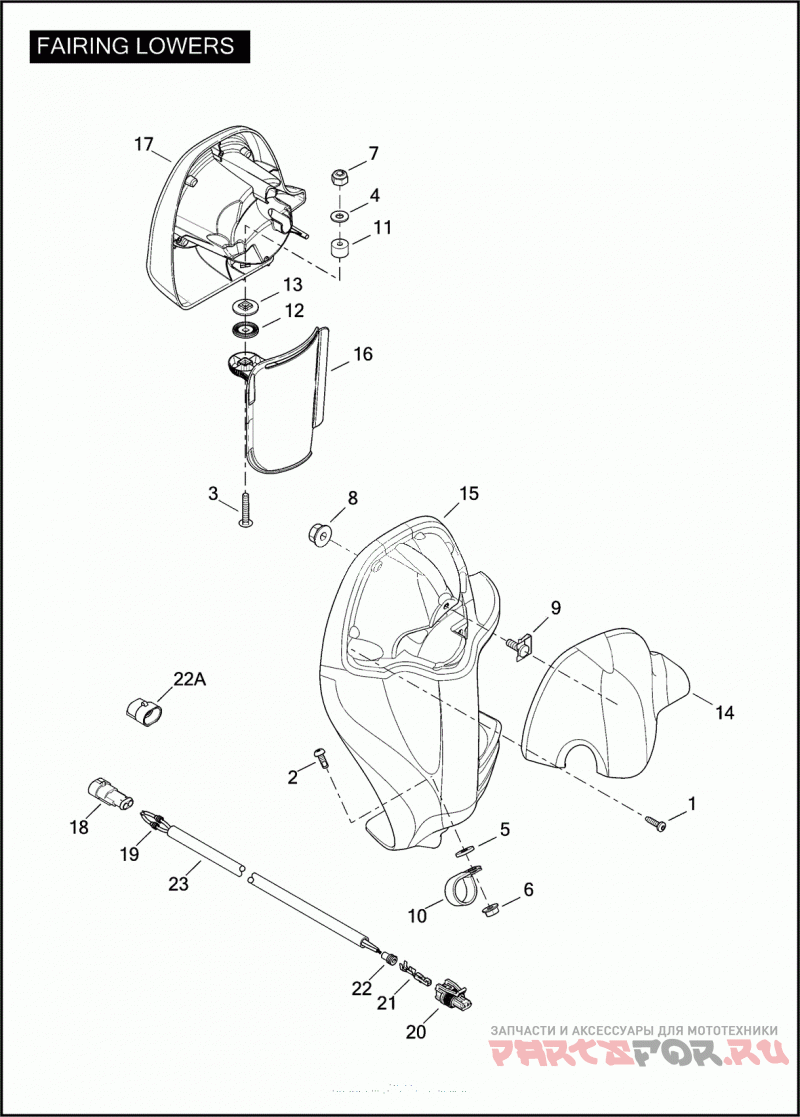

FAIRING LOWERS

Harley Davidson FLHXSE3 1PZ8 CVO STREET GLIDE (2012)

Harley Davidson
#oem кодцена
1
2995
SCREW NO. 10-16 X 3/4 PAN HD.
2
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
3
5429
BOLT 1/4-20 X 1-1/2 CARRIAGE (GRADE 2)
4
6235
WASHER 1/4 X 23/32 X 1/16
5
7415A
WASHER 11/32 X 7/8 X 1/8 RUBBER
6
7576
NUT 5/16-18 UNC KEPS FLANGE
7
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
8
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
9
8175
Зажим
10
27048-84
Зажим
11
58104-05
Пружина сжатия
12
58105-05
Шайба
13
58173-05
Шайба
14
58491-10
CAP LOWER FAIRING, LEFT (PRIME)
14
58491-12DAB
CAP LOWER FAIRING, LEFT (TYPHOON MAROON)
14
58491-11CRP
CAP LOWER FAIRING, LEFT (BLACK DIAMOND)
14
58491-11DFZ
CAP LOWER FAIRING, LEFT (ANTIQUE GUNSTOCK)
14
58492-10
CAP LOWER FAIRING, RIGHT (PRIME)
14
58492-12DAB
CAP LOWER FAIRING, RIGHT (TYPHOON MAROON)
14
58492-11CRP
CAP LOWER FAIRING, RIGHT (BLACK DIAMOND)
14
58492-11DFZ
CAP LOWER FAIRING, RIGHT (ANTIQUE GUNSTOCK)
15
58817-05A
LOWER FAIRING RIGHT (PRIME)
15
58922-12DAB
LOWER FAIRING RIGHT (TYPHOON MAROON)
15
58922-11CRP
LOWER FAIRING RIGHT (BLACK DIAMOND)
15
58922-11DFZ
LOWER FAIRING RIGHT (ANTIQUE GUNSTOCK)
15
58816-05A
LOWER FAIRING LEFT (PRIME)
15
58923-12DAB
LOWER FAIRING LEFT (TYPHOON MAROON)
15
58923-11CRP
LOWER FAIRING LEFT (BLACK DIAMOND)
15
58923-11DFZ
LOWER FAIRING LEFT (ANTIQUE GUNSTOCK)
16
58889-05
VENT RIGHT
16
58890-05
VENT LEFT
17
57419-11
SPEAKERBOX RIGHT (PRIME)
17
58891-11CRP
SPEAKERBOX RIGHT (BLACK DIAMOND)
17
58891-12DAB
SPEAKERBOX RIGHT (TYPHOON MAROON)
17
58891-11DFZ
SPEAKERBOX RIGHT (ANTIQUE GUNSTOCK)
17
57410-11
SPEAKERBOX LEFT (PRIME)
17
58901-11CRP
SPEAKERBOX LEFT (BLACK DIAMOND)
17
58901-12DAB
SPEAKERBOX LEFT (TYPHOON MAROON)
17
58901-11DFZ
SPEAKERBOX LEFT (ANTIQUE GUNSTOCK)
18
72009-05
HOUSING 2-WAY PIN
19
72011-05
WIRE SEAL (YELLOW)
20
72063-06
HOUSING 2-WAY, FEMALE
21
72094-06
TERMINAL 18-GAUGE
22
72096-06
WIRE SEAL 18-GAUGE (YELLOW)
22A
72533-06
DUST CAP 2-PIN CONNECTOR
23
72676-11
JUMPER SPEAKER
