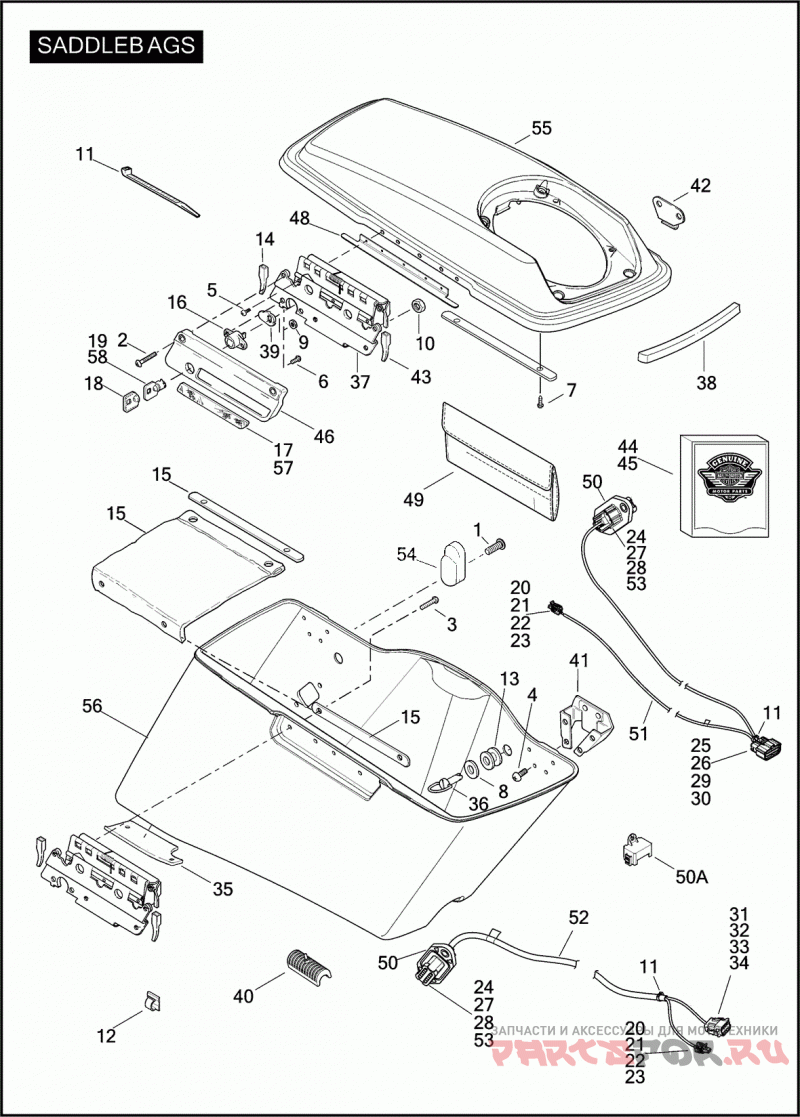

Кофры боковые

Harley Davidson FLHXSE3 1PZ8 CVO STREET GLIDE (2012)

Harley Davidson
#oem кодцена
1
940
SCREW 1/4-20 X 3/4 TORX BUTTON HD.
2
2524B
SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING
3
3592A
SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)
4
3593
SCREW NO. 8-32 X 5/16 TORX TRUSS HD.
5
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
6
3656
SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5)
7
5233
SCREW #10-16 X 1/2 HI-LO, TORX HD T-25
8
6229W
WASHER 5/16 X 1-1/16 X 3/64
9
7586
JAMNUT 9/32-28 X 1/4
10
7608
NUT NO. 8-32 X 1/8 X 11/32 (GRADE 2)
11
10065
CABLE STRAP
11
10102
CLIP ADHESIVE BACKED (NOT ILLUSTRATED)
12
10120
CLIP RIGHT
13
11468
Уплотнитель резиновый
14
53482-93
RUB BAR LEFT, REAR (PLASTIC)
14
53483-93
RUB BAR RIGHT, REAR (PLASTIC)
15
53567-93
CHECK STRAP LEFT
15
90200002
CHECK STRAP RIGHT, IPOD (NOT SHOWN)
16
53710-93
LOCKSET W/ 7586, 90682-93 & KEYS (SPECIFY KEY CODE) (SET OF 2)
17
59287-92
REFLECTOR RIGHT (RED) (DOMESTIC, CANADA)
17
59288-92
REFLECTOR LEFT (RED) (DOMESTIC, CANADA)
18
61081-92
COVER KEY
19
90115-04
PROTECTOR SADDLEBAG (NOT ILLUSTRATED)
20
72063-06
HOUSING 2-WAY
21
72094-06
TERMINAL SOCKET, 18 AWG
22
72096-06
WIRE SEAL 18 AWG (YELLOW)
23
72111-06
SECONDARY LOCK 2-WAY (GREY)
24
72149-94
PIN LOCK
25
72166-07BK
HOUSING SOCKET, 16-WAY (BLACK)
26
72168-07
TERMINAL SOCKET, 18-20 AWG
27
72190-94
TERMINAL PIN, 16-18 AWG
28
72195-94
SEAL PIN 4-WAY RECEPTACLE
29
72272-07
TERMINAL SOCKET, 14-16 AWG
30
72473-07
SEAL PIN
31
74118-98BK
HOUSING SOCKET 8-WAY (BLACK)
32
74158-98
SECONDARY LOCK 8-WAY, SOCKET
33
74191-98
SOCKET TERMINAL
34
74195-98
SEAL PIN
35
88335-09
PROTECTOR LEFT HAND
35
88336-09
PROTECTOR RIGHT HAND
36
90400-00A
BAIL HEAD STUD (BAIL MUST BE REMOVED FOR ALL HDI MODELS EXCEPT JAPAN)
37
90664-93
LATCH ASSEMBLY LEFT, W/ 53482-93 & SPRING, ALSO ORDER 90981-09
37
90665-93
LATCH ASSEMBLY RIGHT, W/ 53483-93 & SPRING, ALSO ORDER 90980-09
38
90675-93A
GASKET COVER
39
90682-93
CAM HOOK
40
90764-93
CUSHION FRONT
41
90958-93
MOUNTING BRACKET
42
90962-93
WEARPLATE COVER
43
90980-09
RUB BAR RIGHT, FRONT (PLASTIC)
43
90981-09
RUB BAR LEFT, FRONT (PLASTIC)
44
91636-09
COVER INDOOR STORAGE
45
91885-97A
LINER REMOVABLE
46
91999-12DAA
LATCH COVER RIGHT (RUBY RED)
46
91999-12DED
LATCH COVER RIGHT (HOT CITRUS)
46
91999-12DDX
LATCH COVER RIGHT (DARK SLATE)
46
92000-12DAA
LATCH COVER LEFT (RUBY RED)
46
92000-12DED
LATCH COVER LEFT (HOT CITRUS)
46
92000-12DDX
LATCH COVER LEFT (DARK SLATE)
47
12100001
GROMMET RIGHT SADDLEBAG
48
12700035
BACKING PLATE
49
14900001
Комплект инструментов
50
25700155
GASKET PLUG
50A
25700176
Крышка
51
69200159
WIRE HARNESS JUMPER, LEFT
52
69200160
WIRE HARNESS JUMPER, RIGHT
53
69200290
RECEPTACLE 12-WAY (GREY)
54
69200329
COVER PLUG
55
90200609DAA
COVER ASSEMBLY LEFT W/ 38, 42 & LABEL (RUBY RED)
55
90200609DED
COVER ASSEMBLY LEFT W/ 38, 42 & LABEL (HOT CITRUS)
55
90200609DDX
COVER ASSEMBLY LEFT W/ 38, 42 & LABEL (DARK SLATE)
55
90200610DAA
COVER ASSEMBLY RIGHT W/ 38, 42 & LABEL (RUBY RED)
55
90200610DED
COVER ASSEMBLY RIGHT W/ 38, 42 & LABEL (HOT CITRUS)
55
90200610DDX
COVER ASSEMBLY RIGHT W/ 38, 42 & LABEL (DARK SLATE)
56
90200580DKW
BOTTOM ASSEMBLY LEFT (RUBY RED/TYPHOON MAROON)
56
90200580DKX
BOTTOM ASSEMBLY LEFT (HOT CITRUS/ANTIQUE GUNSTOCK)
56
90200580DKY
BOTTOM ASSEMBLY LEFT (DARK SLATE/BLACK DIAMOND)
56
90200581DKW
BOTTOM ASSEMBLY RIGHT (RUBY RED/TYPHOON MAROON)
56
90200581DKX
BOTTOM ASSEMBLY RIGHT (HOT CITRUS/ANTIQUE GUNSTOCK)
56
90200581DKY
BOTTOM ASSEMBLY RIGHT (DARK SLATE/BLACK DIAMOND)
57
59289-92
REFLECTOR RIGHT (AMBER) (HDI, ENGLAND, JAPAN)
57
59290-92
REFLECTOR LEFT (AMBER) (HDI, ENGLAND, JAPAN)
