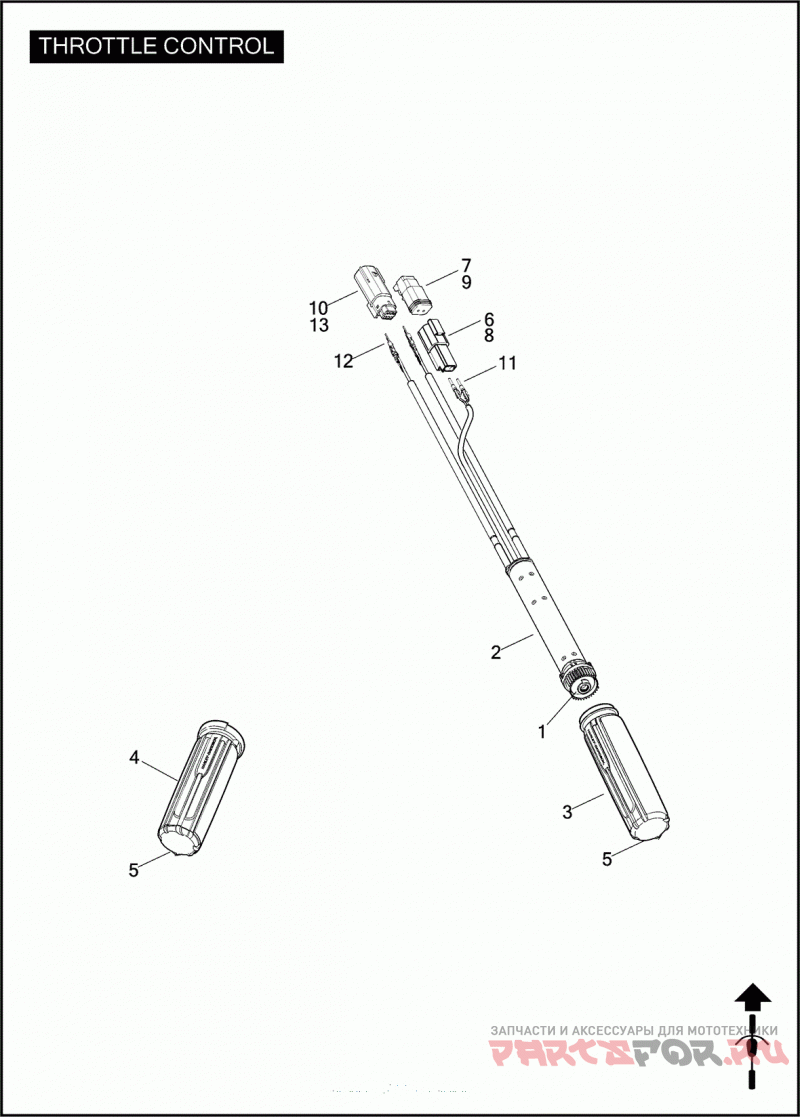

CABLE STRAP (NOT ILLUSTRATED)

SEAL CAP THROTTLE SENSOR

SENSOR TWIST GRIP, W/ 10006, 32306-08, 72102-94BK, 72112-94BK, 72142-94, 72152-94, 72188-07BK, 72194-94, 72195-94, 72549-07 & 73212-07 (72195-94 SEAL PIN NOT USED W/ HEATED GRIPS)

HANDGRIP ASSEMBLY RIGHT, W/ 56162-09

HANDGRIP ASSEMBLY LEFT, W/ 56162-09

ENDCAP (CHROME)

PIN HOUSING 2-WAY

SOCKET HOUSING 2-WAY

LOCK SECONDARY, 2-WAY

SEAL FRONT, 2-WAY

PIN HOUSING 6-WAY

TERMINAL PIN, #20 AWG

TERMINAL PIN, #22 AWG

CONNECTOR ANCHOR, T-STUD
