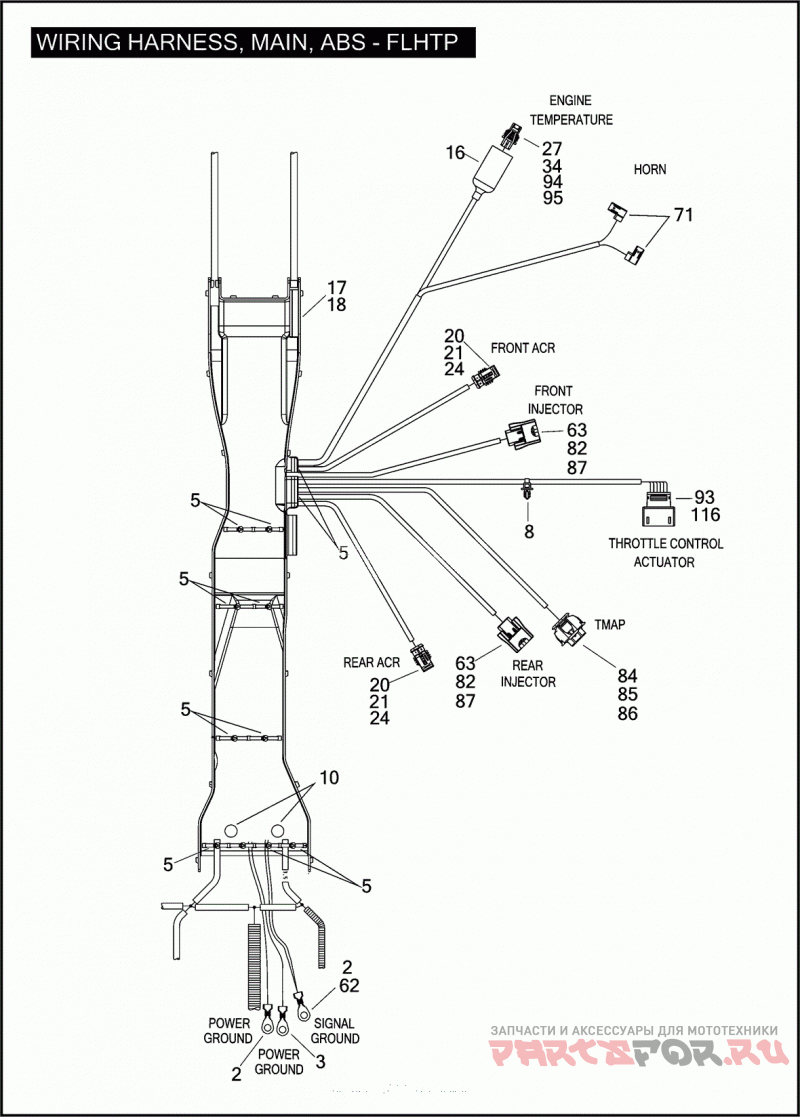

WIRING HARNESS, MAIN, ABS - FLHTP (2 OF 5)

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2012)

Harley Davidson
#oem кодцена
70269-11
MAIN WIRING HARNESS - ABS
28
72066-06A
SOCKET HOUSING 4-WAY FEMALE (BLACK)
29
72079-08
SOCKET HOUSING 73-WAY
30
72094-06
TERMINAL SOCKET, 18 AWG
31
72096-06
WIRE SEAL 18-20 AWG (YELLOW)
32
72100-04
HOUSING 1-WAY, MALE (GRAY)
33
72104-94BK
HOUSING 4-PIN (BLACK)
34
72111-06
LOCK SECONDARY, 2-WAY, FEMALE (GRAY)
35
72112-94BK
SOCKET HOUSING SEALED, 2-WAY (BLACK)
36
72114-94BK
SOCKET HOUSING 4-WAY (BLACK) (REPLACES GRAY CONNECTOR)
37
72115-08
COVER 73-WAY SOCKET HOUSING
38
72119-94BK
SOCKET HOUSING 12-WAY, W/ 72179-94 (BLACK)
39
72124-94GY
HOUSING 4-PIN (GRAY)
40
72135-06
LOCK SECONDARY, 4-WAY SOCKET, FEMALE
41
72139-94GY
SOCKET HOUSING 12-WAY W/ 72179-94 (GRAY)
42
72144-94
PIN LOCK SECONDARY, 4-WAY
43
72152-94
SOCKET LOCK SECONDARY, 2-WAY
44
72154-94
SOCKET LOCK SECONDARY, 4-WAY
45
72155-08
LOCK SECONDARY, 73-WAY, SOCKET HOUSING
46
72157-08
LOCK BLUE
47
72159-94
SOCKET LOCK SECONDARY, 12-WAY
48
72164-94A
WEATHER PLUG 4-WAY
49
72166-07BK
SOCKET HOUSING 16-WAY 18-20 AWG (BLACK)
50
72168-07
TERMINAL SOCKET, 16-18 AWG
51
72169-07
TERMINAL PIN, 16-20 AWG
52
72175-07BK
PIN HOUSING 4-WAY (BLACK)
53
72179-94
SEAL INTERNAL, 12 CIRCUIT
54
72190-94
TERMINAL PIN, 16-18 AWG
55
72191-94
TERMINAL SOCKET, 16-18 AWG
56
72195-94
SEAL PIN
