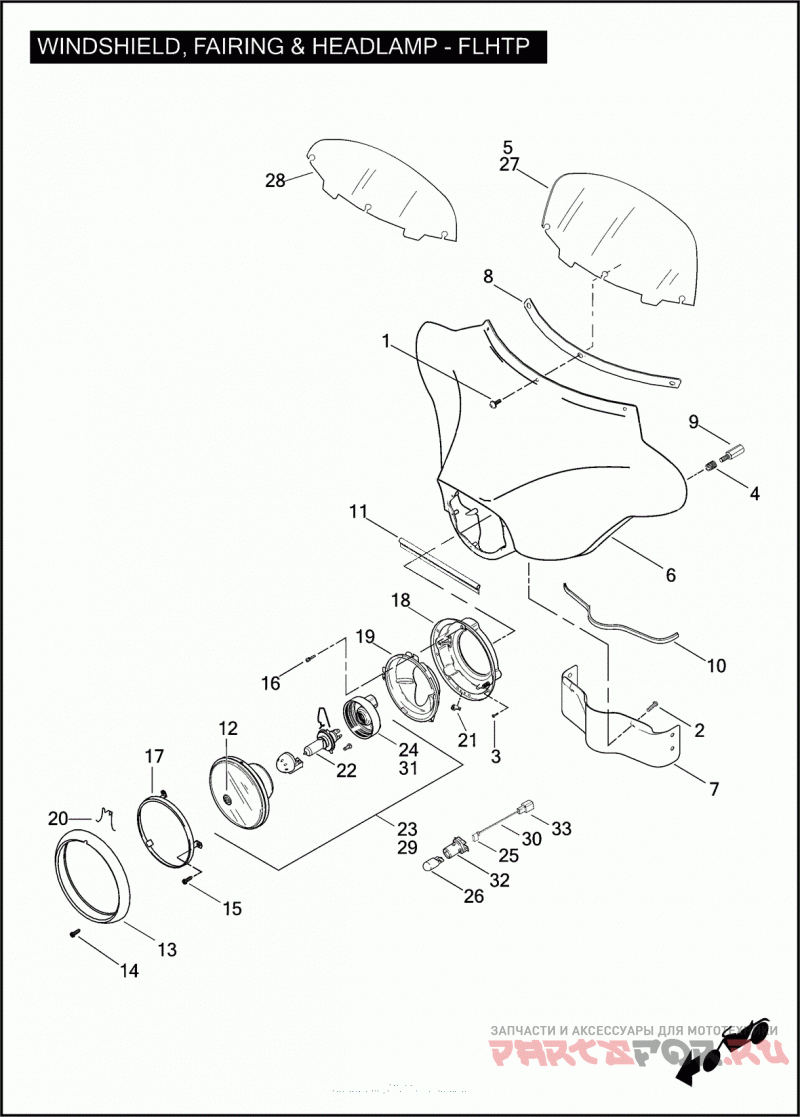

WINDSHIELD, FAIRING & HEADLAMP - FLHTP

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2012)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
3
4790
SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING
4
16585-96
INSERT THREADED
5
58187-96
WINDSHIELD (DOMESTIC)
6
58236-96
FAIRING OUTER (PRIME)
7
58208-96A
SKIRT OUTER FAIRING
8
58247-96
CUSHION TAPE WINDSHIELD MOUNTING
9
58949-96
NUT EXTENSION
10
62786-96
TRIM STRIP SKIRT
11
62787-96
SEAL FAIRING SKIRT
12
67668-05
MEDALLION
13
67712-83B
DOOR chrome
14
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
15
67721-48
SCREW HEADLAMP RETAINER RING
16
67724-71
ADJUSTING SCREW HEADLAMP
17
67726-08
RETAINING RING HEADLAMP
18
67728-02A
BUCKET ASSEMBLY W/ 67724-71 & 67782-60A
19
67732-08
MOUNTING RING HEADLAMP
20
67778-60A
TOP SPRING
21
67782-60A
BRACKET DOOR
22
68329-03
BULB
23
68342-05A
LENS ASSEMBLY 7 IN, WITH 67668-05, 68329-03 AND 68390-05 (DOMESTIC)
24
68390-05
чехол
25
9898
TERMINAL FLAG 18-20 GA, (HDI, AUSTRALIA, ASIA-PACIFIC)
26
53436-97
BULB POSITION LAMP (HDI, AUSTRALIA, ASIA-PACIFIC)
27
58187-96
WINDSHIELD CLEAR (AUSTRALIA)
27
58324-97
WINDSHIELD CLEAR (HDI)
28
58216-04
WINDSHIELD CLEAR (ASIA-PACIFIC)
29
68344-05A
REFLECTOR ASSEMBLY LEFT DIP (AUSTRALIA, ENGLAND, JAPAN)
29
68345-05A
REFLECTOR ASSEMBLY RIGHT DIP (HDI, ASIA-PACIFIC)
30
68359-05
JUMPER HARNESS POSITION BULB, W/ 9898 & 72253-94 (HDI, AUSTRALIA, ASIA-PACIFIC)
31
68380-05
BOOT BULB (HDI, AUSTRALIA, ASIA-PACIFIC)
32
68653-05
SOCKET POSITION LAMP (HDI, AUSTRALIA, ASIA-PACIFIC)
33
72253-94
TERMINAL 18-20 GA (HDI, AUSTRALIA, ASIA-PACIFIC)
