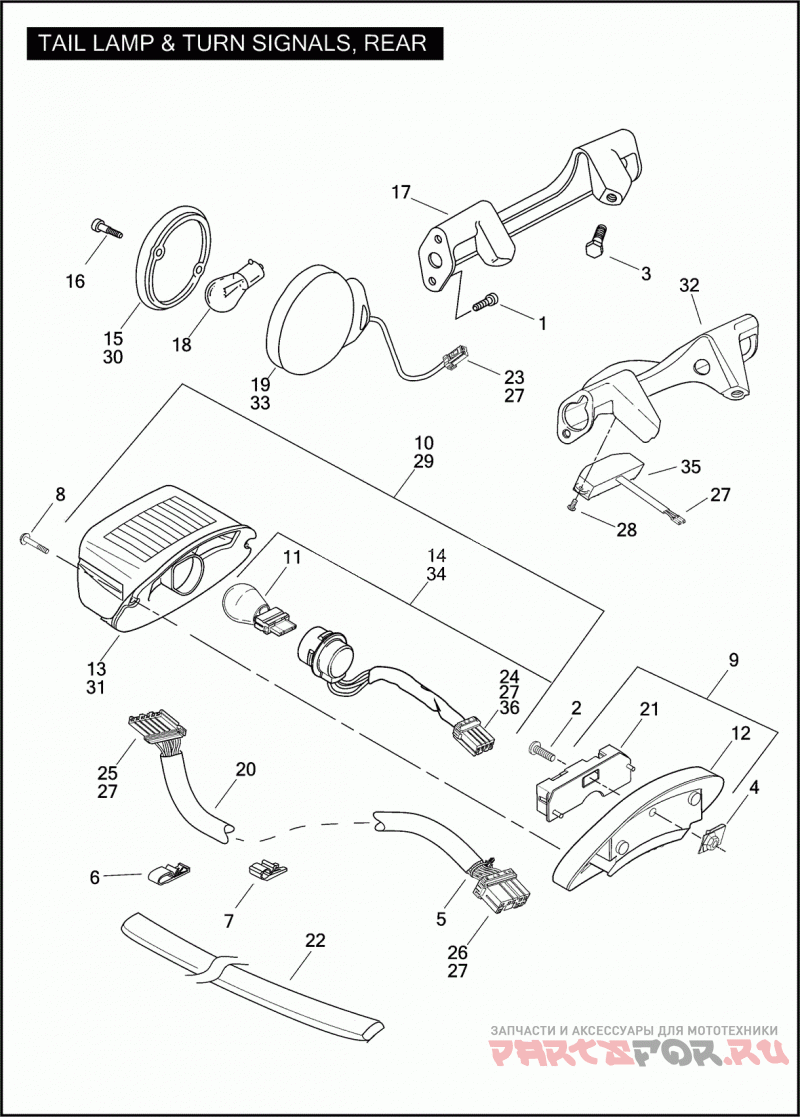

TAIL LAMP & TURN SIGNALS, REAR

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2012)

Harley Davidson
#oem кодцена
1
2692WB
SCREW NO. 10-24 X 1/2 SOCKET FILLISTER HD. (GRADE 8)
2
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
3
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
4
7964
J-NUT
5
10006
CABLE STRAP
6
10183
CLIP T-STUD
7
10184
CLIP T-STUD
8
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
9
68066-99A
TAIL LAMP BASE ASSEMBLY W/ 68296-99A & 68830-99A
10
68140-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68369-03 & 68370-03A (DOMESTIC)
11
68167-04
BULB TAIL LAMP, WEDGE MOUNT
12
68296-99A
TAIL LIGHT BASE (CHROME)
13
68369-03
LENS TAIL LAMP W/ 68026-99
14
68370-03A
BULB SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK & 73191-96
15
68440-86
LENS TURN SIGNAL (DOMESTIC)
16
68452-86
Винт
17
68510-74C
BRACKET REAR TURN SIGNAL (DOMESTIC)
18
68572-64B
BULB REAR TURN SIGNAL
19
68713-94A
LAMP ASSEMBLY REAR, W/ 68440-86, 68452-86 & 68572-64B (AMBER) (DOMESTIC)
20
68772-09A
HARNESS REAR LAMPS, W/ 10006, 70522-06B, 73156-96BK, 73158-96BK & 73191-96
21
68830-99A
CIRCUIT BOARD & COVER
22
70522-06B
CONDUIT SELF-ADHESIVE
23
73152-96BK
SOCKET HOUSING 2-WAY
24
73154-96BK
SOCKET HOUSING 4-WAY
25
73156-96BK
SOCKET HOUSING 6-WAY
26
73158-96BK
SOCKET HOUSING 8-WAY
27
73191-96
TERMINAL SOCKET, 16-20 AWG
28
2482
SCREW 6-32 X 5/16 SOCKET BUTTON HD. (STAINLESS)
29
68142-04
LAMP ASSEMBLY TAIL LAMP, W/ 68558-03 & 69187-03A (HDI)
30
68506-92
LENS TURN SIGNAL (AMBER) (2) (HDI)
31
68558-03
LENS TAIL LAMP, W/ 68026-99 (RED) (HDI)
32
68742-09
BRACKET REAR TURN SIGNAL
33
68765-94A
LAMP ASSEMBLY REAR, W/ 68452-86, 68506-92 & 68572-64B (2) (HDI)
34
69187-03A
BULB SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK & 73191-96 (HDI)
35
69378-09
LIGHT ASSEMBLY W/ 73191-96 & LENS (HDI)
36
73153-96BK
SOCKET HOUSING 3-WAY (BLACK) (HDI)
