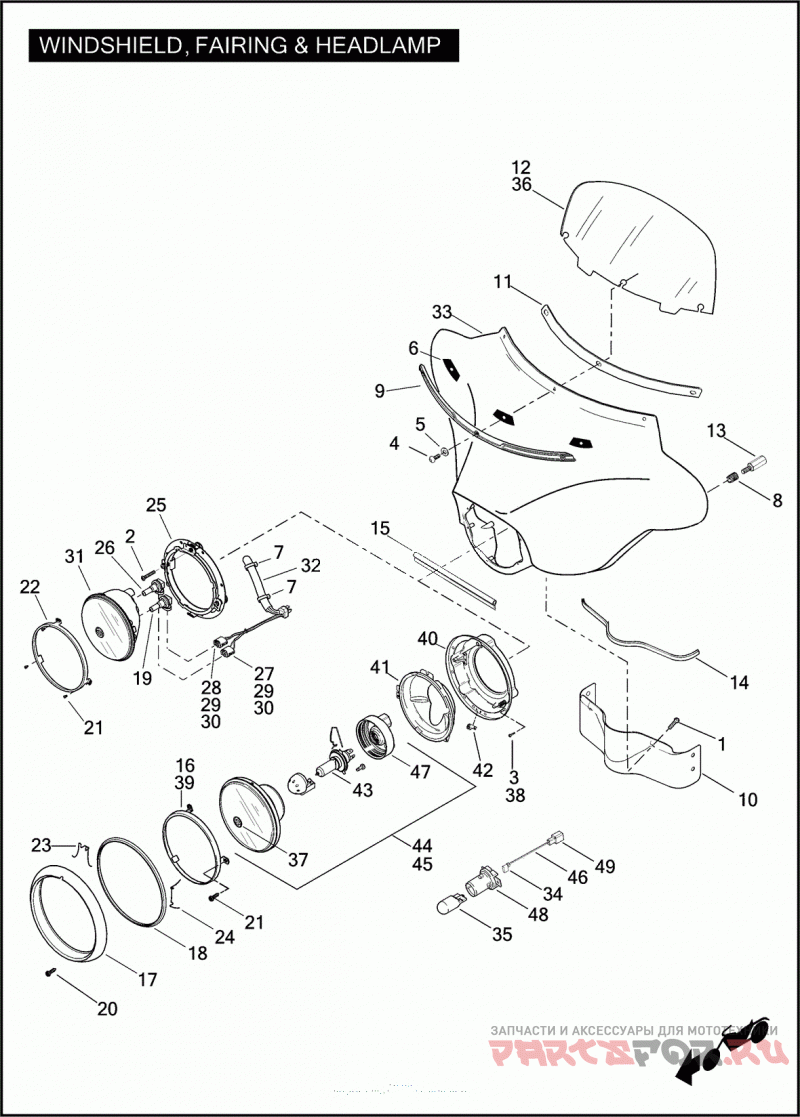

WINDSHIELD, FAIRING & HEADLAMP

Harley Davidson FLHTCUSE7 1PR8 CVO ULTRA CLASSIC (2012)

Harley Davidson
#oem кодцена
1
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
2
3088
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (CHROME)
3
4790
SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING
4
4976
SCREW 1/4-20 X 3/4 TORX SOCKET BUTTON HD., STAINLESS STEEL
5
6383
WASHER 17/64 X 1/2 X 1/16 STAINLESS STEEL
6
6566
PAD RUBBER
7
10065
CABLE STRAP
8
16585-96
INSERT THREADED
9
59261-09
TRIM ASSEMBLY WINDSHIELD, W/ 6566
10
58208-96A
SKIRT OUTER FAIRING
11
58247-96
CUSHION TAPE WINDSHIELD MOUNTING
12
58303-96
WINDSHIELD LIGHTLY SMOKED,
13
58949-96
NUT EXTENSION
14
62786-96
TRIM STRIP SKIRT
15
62787-96
SEAL FAIRING SKIRT
16
67001-08
RETAINING RING KIT W/ 67721-48 & 67732-08 (DOMESTIC)
17
67712-83B
DOOR chrome
18
67716-60C
GASKET headlamp door (used w/ 67702-81A)
19
67717-01
BULB HIGH BEAM HALOGEN
20
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
21
67721-48
SCREW HEADLAMP RETAINER RING
22
67726-08
Стопорное кольцо
23
67778-60A
SPRING TOP
24
67780-60A
SPRING BOTTOM
25
68124-04B
MOUNTING RING ASSEMBLY W/ 3088
26
68881-01
BULB LOW BEAM HALOGEN
27
72449-01
HOUSING 2-WAY SOCKET (BLACK)
28
72450-01
HOUSING 2-WAY SOCKET (GREY)
29
72527-01
SOCKET TERMINAL 18-20 AWG
30
72633-02
SEAL 14-16 AWG (WHITE)
31
73271-11
HEADLAMP W/ 67717-01 & 68881-01
32
73272-11
WIRE HARNESS INTERCONNECT, W/ 7, 27, 28, 29 & 30
33
57000076DLB
FAIRING OUTER, W/ 58247-96 & 62787-96 (ELECTRIC ORANGE/BLACK DIAMOND)
33
57000076DLC
FAIRING OUTER, W/ 58247-96 & 62787-96 (CRYSTAL CITRON/DIAMOND DUST)
33
57000076DLF
FAIRING OUTER, W/ 58247-96 & 62787-96 (WICKED SAPPHIRE/STARDUST SILVER)
33
58236-96
FAIRING OUTER (PRIME)
34
9898
TERMINAL FEMALE FLAG, 14-16 GAUGE
35
53436-97
BULB POSITION LAMP (HDI, JAPAN)
36
58324-97
WINDSHIELD CLEAR (HDI)
37
67668-05
MEDALLION LENS (HDI, JAPAN)
38
67724-71
ADJUSTING SCREW HEADLAMP (HDI, JAPAN)
39
67726-08
RETAINING RING HEADLAMP (HDI, JAPAN)
40
67728-02A
BUCKET ASSEMBLY W/ 67724-71 & 67782-60A (HDI, JAPAN)
41
67732-08
MOUNTING RING HEADLAMP (HDI, JAPAN)
42
67782-60A
BRACKET DOOR (HDI, JAPAN)
43
68329-03
BULB HB2/H4 (HDI, JAPAN)
44
68344-05A
REFLECTOR ASSEMBLY LEFT DIP (AUSTRALIA, ENGLAND, JAPAN)
45
68345-05A
REFLECTOR ASSEMBLY RIGHT DIP (HDI, ASIA-PACIFIC)
46
68359-05
HARNESS JUMPER W/ 9898 & 72253-94 (HDI, JAPAN)
47
68380-05
BOOT (HDI, JAPAN)
48
68653-05
SOCKET POSITION LAMP (HDI, JAPAN)
49
72253-94
TERMINAL 18-20 GAUGE (HDI, JAPAN)
