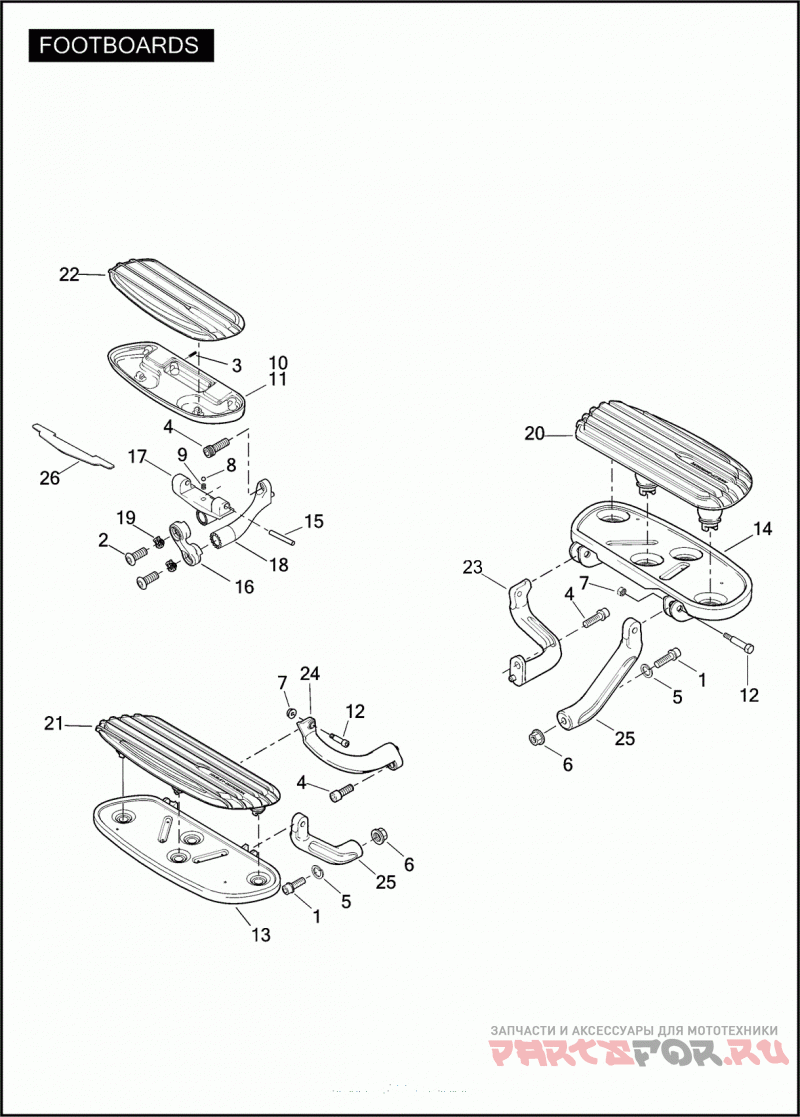

FOOTBOARDS

Harley Davidson FLHTCUSE7 1PR8 CVO ULTRA CLASSIC (2012)

Harley Davidson
#oem кодцена
1
4032A
SCREW 3/8-16 X 2-1/2 SOCKET HD.
2
4631
Винт
3
3341
SET SCREW NO. 10-24 X 1/2 HEX HEAD (STAINLESS)
4
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
5
7038
LOCKWASHER 3/8
6
7601
LOCKNUT 3/8-16 FLANGE
7
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
8
8861
Шарик
9
51501-07
Пружина
10
50700-04
FOOTBOARD LEFT, PASSENGER (NOT ILLUSTRATED)
11
50701-04
FOOTBOARD RIGHT, PASSENGER
12
50635-82A
BOLT FOOTBOARD HINGE
13
50683-04
BOTTOM ASSEMBLY RIGHT, W/ HINGE
14
50688-04
BOTTOM ASSEMBLY LEFT, W/ HINGE
15
50933-86A
PIVOT PIN
16
50998-07
ARM ROTATING, RIGHT
16
51006-07
ARM ROTATING, LEFT
17
51007-07
SUPPORT FOOTBOARD
18
51008-07
ARM MAIN MOUNTING ASSEMBLY
19
51023-07
WAVE SPRING
20
51498-09A
INSERT ASSEMBLY LEFT, RIDER
21
51499-09A
INSERT ASSEMBLY RIGHT, RIDER
22
51502-09
FOOTBOARD INSERT PASSENGER, LEFT (NOT ILLUSTRATED)
22
51510-09
FOOTBOARD INSERT PASSENGER, RIGHT
23
50500051
BRACKET SUPPORT FOOTBOARD, REAR LEFT
24
50500052A
BRACKET SUPPORT FOOTBOARD, REAR RIGHT
25
50500055A
MOUNTING BRACKET FRONT FOOTBOARD
26
44430-04
PAD RUBBER (HDI)
