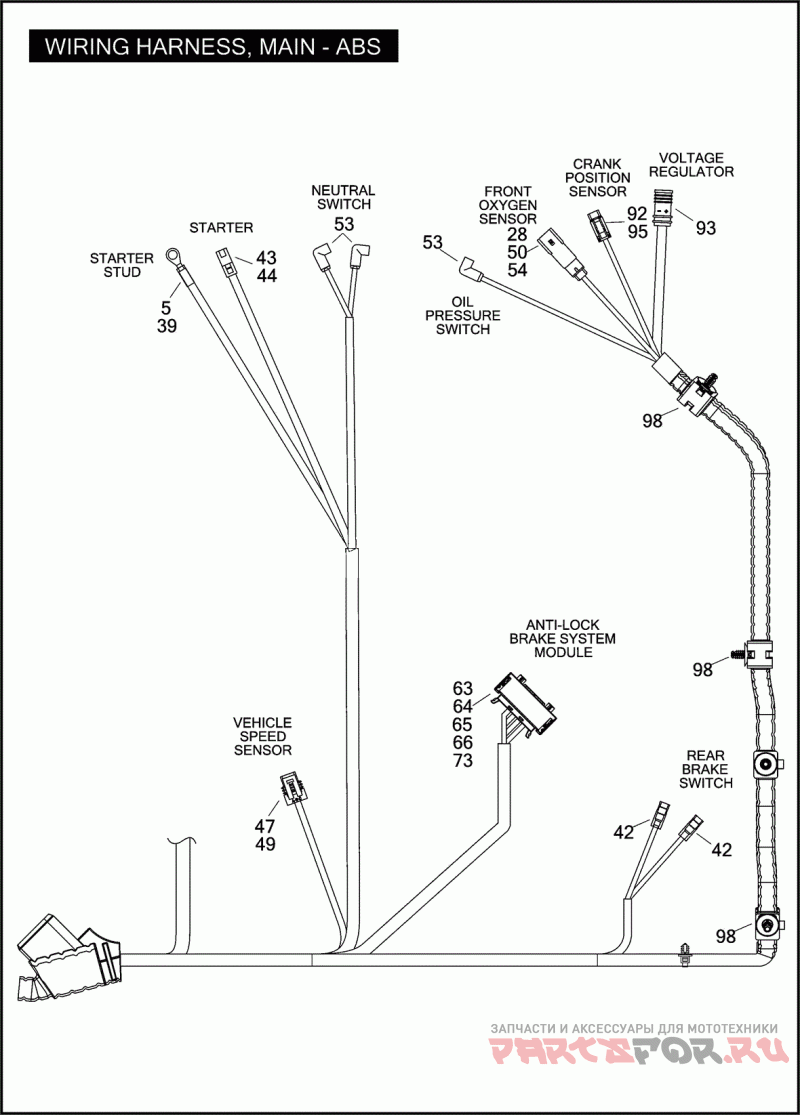

WIRING HARNESS, MAIN, ABS (3 OF 5)

Harley Davidson FLD 1GZ4 DYNA SWITCHBACK (2012)

Harley Davidson
#oem кодцена
71075-12A
Деталь WIRING HARNESS, MAIN (CONTINUED)
41
72283-09
Деталь TERMINAL FEMALE, #14-16 AWG
42
72290-94
Деталь TERMINAL INSULATED
43
72291-94
Деталь TERMINAL #14-16 AWG
44
72295-94
Деталь HOUSING STARTER CONNECTION
45
72298-95
Деталь WIRE SEAL #14-18 AWG (GREEN)
46
72308-97
Деталь TERMINAL FEMALE, #12-14 AWG
47
72312-04
Деталь HOUSING SOCKET, 3-WAY
47A
72314-01
Деталь FUSE, MAXI 40 AMP, NOTE: FUSE IS SOLD SEPARATELY AND IS NOT PART OF THE MAIN WIRING HARNESS.
48
72330-95
Деталь FUSE 15 AMP (BLUE)
49
72335-10
Деталь TERMINAL SOCKET, #20-22 AWG
50
72343-10
Деталь TERMINAL PIN, #16-20 AWG
51
72350-11
Деталь HOUSING ONE-WAY
52
72356-95
Деталь TERMINAL SOCKET, #18-20 AWG
53
72405-98BK
Деталь PUSH ON 90 DEGREE CONNECTOR
54
72415-07GY
Деталь HOUSING 4-WAY PIN (GREY)
55
72479-07BK
Деталь HOUSING 8-WAY SOCKET (BLACK)
56
72484-08
Деталь TERMINAL SOCKET, #20 AWG
57
72486-08
Деталь WIRE SEAL #20 AWG (GREEN)
58
72512-07BK
Деталь HOUSING 3-WAY SOCKET (BLACK)
59
72518-01
Деталь HOUSING SOCKET, 2-WAY (RED)
60
72519-09BK
Деталь DUST CAP 3-WAY SOCKET
61
72533-06
Деталь DUST CAP 2-PIN
