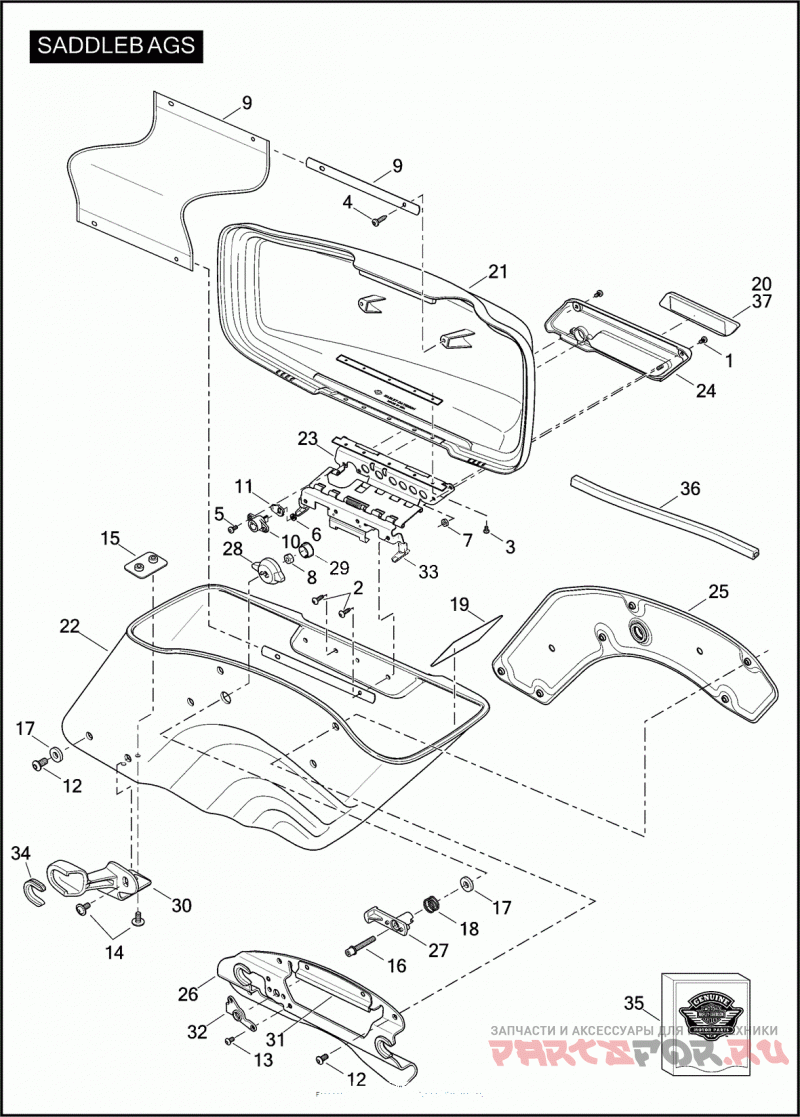

SADDLEBAGS - FLD

Harley Davidson FLD 103 1GZM DYNA SWITCHBACK (2012)

Harley Davidson
#oem кодцена
1
2524B
SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING
2
3592A
SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)
3
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
4
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
5
3656
SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5)
6
7586
JAMNUT 9/32-28 X 1/4
7
7608
NUT NO. 8-32 X 1/8 X 11/32 (GRADE 2)
8
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
9
53567-93
TETHER
10
53710-93
LOCK W/ 7586 & 90682-93 (SPECIFY KEY CODE)
11
90682-93
SADDLEBAG CAM
12
10200032
Винт
13
10200070
Винт
14
10200053
Винт
15
10400003
NUT PLATE ASSEMBLY
16
10500009
Винт
17
10600010
Шайба
18
11700004
Пружина сжатия
19
14000069
WARNING LABEL
20
67900040
REFLECTOR RIGHT, RED
20
67900041
REFLECTOR LEFT, RED
21
90200010BDK
COVER RIGHT, PRIMED
21
90200011BDK
COVER LEFT, PRIMED
22
90200018BDK
BOTTOM RIGHT, PRIMED
22
90200019BDK
BOTTOM LEFT, PRIMED
23
90200426
LATCH RIGHT
23
90200427
LATCH LEFT
24
90200428
FACEPLATE RIGHT
24
90200429
FACEPLATE LEFT
25
90200471
SUPPORT BRACKET INNER, RIGHT
25
90200474
SUPPORT BRACKET INNER, LEFT
26
90200476
SUPPORT BRACKET OUTER, RIGHT
26
90200478
SUPPORT BRACKET OUTER, LEFT
27
90200481
LATCHING ARM
28
90200483
LATCH HANDLE
29
90200484
LATCH CAP
30
90200513
BRACKET SADDLEBAG MOUNT, RIGHT
30
90200514
BRACKET SADDLEBAG MOUNT, LEFT
31
90200565
WEAR STAMPING
32
90200568
BRACKET THEFT PROTECTION, LEFT
32
90200569
BRACKET THEFT PROTECTION, RIGHT
33
90200574
RUB BAR SET RIGHT
33
90200575
RUB BAR SET LEFT
34
90200576
DOCKING BUSHINGS SET
35
90200647
GASKET KIT INNER BRACKET
36
90200702
Прокладка
37
67900042
REFLECTOR RIGHT, AMBER
37
67900043
REFLECTOR LEFT, AMBER
