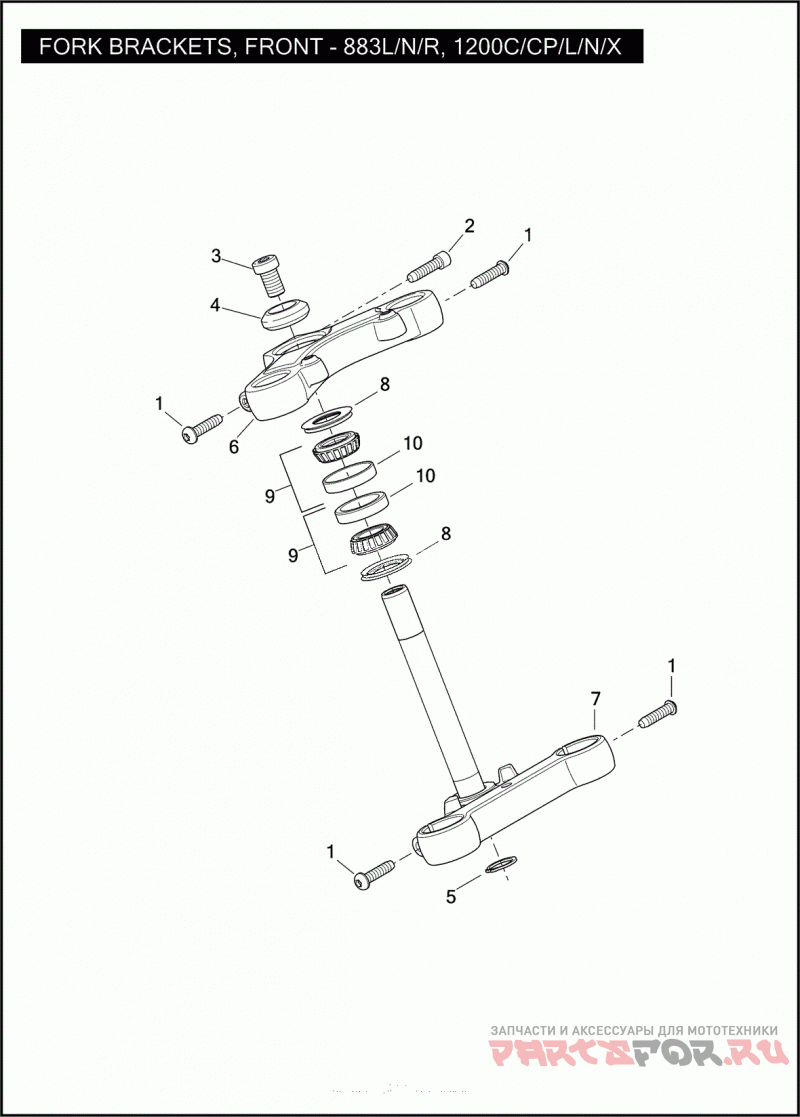

FORK BRACKETS, FRONT - 883L/N/R, 1200C/CP/L/N/X

Harley Davidson XL883L 4CR2 SPORTSTER 883 LOW (2011)

FORK BRACKETS, FRONT - 883L/N/R, 1200C/CP/L/N/X

#

oem код

название

цена

1

SCREW 3/8-16 X 1-1/2 TORX HD., SELF-TAPPING (GRADE 8)

SCREW 3/8-16 X 1-1/2 TORX HD., SELF-TAPPING (GRADE 8)

2

SCREW 3/8-16 X 1-1/2 TORX, SELF-TAPPING (GRADE 8)

SCREW 3/8-16 X 1-1/2 TORX, SELF-TAPPING (GRADE 8)

3

Болт

Болт

4

Шайба

Шайба

5

Стопорное кольцо

Стопорное кольцо

6

BRACKET UPPER (NOT SHOWN)

BRACKET UPPER (NOT SHOWN)

7

BRACKET LOWER, W/ BEARING, SEAL & RETAINING RING

BRACKET LOWER, W/ BEARING, SEAL & RETAINING RING

8

SEAL TAPERED BEARING

SEAL TAPERED BEARING

9

ROLLER BEARING W/ CUP

ROLLER BEARING W/ CUP

10

BEARING CUP

BEARING CUP
