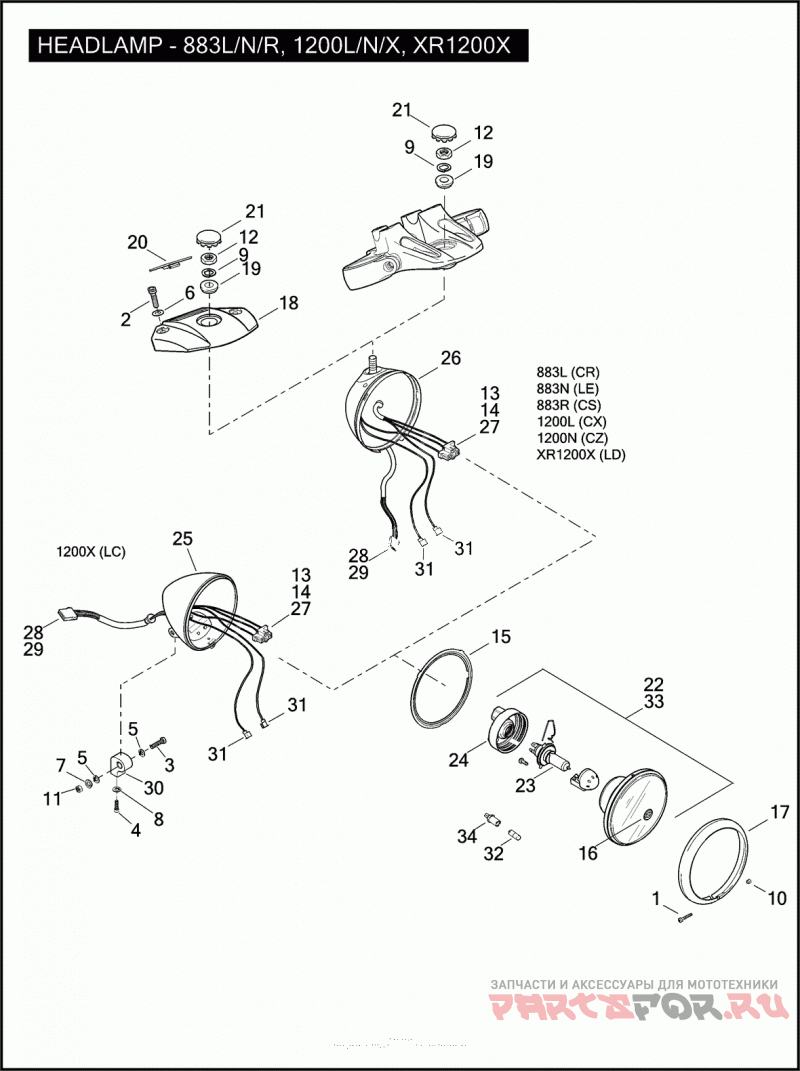

HEADLAMP - 883L/N/R, 1200L/N/X, XR1200X

Harley Davidson XL1200L 1CX3 SPORTSTER 1200 LOW (2011)

Harley Davidson
#oem кодцена
1
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
2
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
6
6702
WASHER 5/16 X 11/16 X 1/16
9
7068
LOCKWASHER 1/2
10
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
12
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
13
9847
CONNECTOR RIGHT
14
9848
CONNECTOR LEFT
15
67883-04A
ADAPTER RING
16
67667-05
MEDALLION
17
67790-93A
BEZEL (CHROME)
18
69709-00A
KIT-BRACKET,HDLAMP/CHRM
19
67815-59A
Шайба
21
67865-89
PLUG (CHROME)
22
68297-05A
LAMP ASSEMBLY WITH 15, 21, 22
23
68329-03
BULB
24
68380-05
BOOT HEADLAMP CONNECTOR
26
69774-07A
HEADLAMP SHELL W/ 13, 14, 27, 28, 29, 31 (BLACK)
27
72056-92
HOUSING FEMALE
28
73154-96BK
SOCKET HOUSING 4-WAY (BLACK)
29
73191-96
SOCKET TERMINAL 16-20 AWG
31
9898
TERMINAL FLAG
32
53436-97
BULB
33
68335-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
33
68341-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
34
68653-05
SOCKET BULB (2 SPADE)
