SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING

SWITCH BANK ANGLE

TERMINAL SOCKET 18 AWG

WIRE SEAL 18 AWG (YELLOW)

PIN HOUSING 12-WAY (GRAY)

SOCKET HOUSING 12-WAY, W/ 72179-94 (GRAY)

PIN LOCK

SOCKET LOCK 12-WAY

SEAL INTERNAL

TERMINAL PIN, 16-18 AWG

TERMINAL SOCKET, 16-18 AWG

SECONDARY LOCK 3-WAY, FEMALE

SOCKET HOUSING 3-WAY, FEMALE

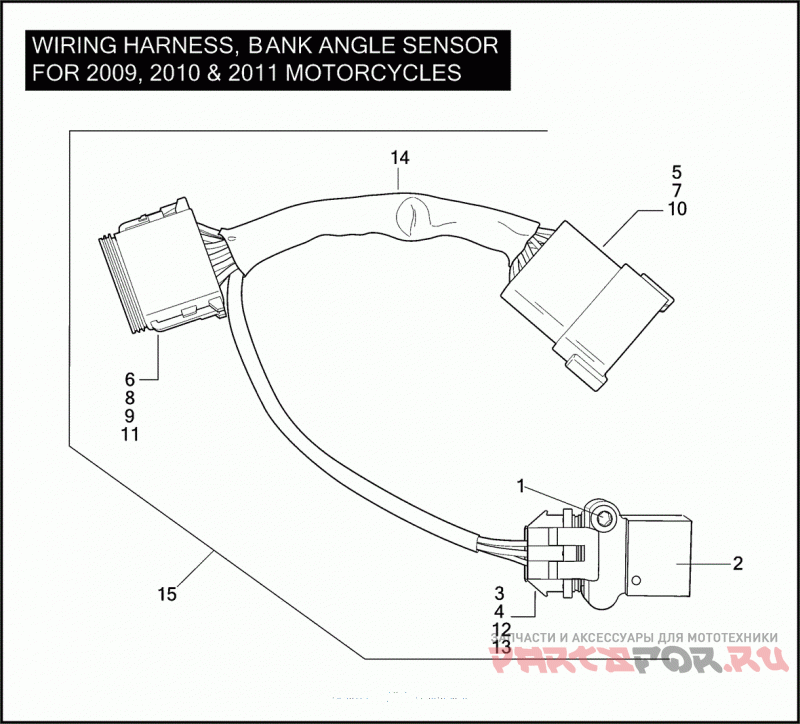

WIRING HARNESS BANK ANGLE SENSOR, W/ 72094-06, 72096-06 72129-94GY, 72139-94GY, 72149-94, 72159-94, 72179-94, 72190-94, 72191-94, 72544-07 & 72589-09

ROLLOVER SWITCH KIT W/ 4790, 32495-98 & 88104-09
