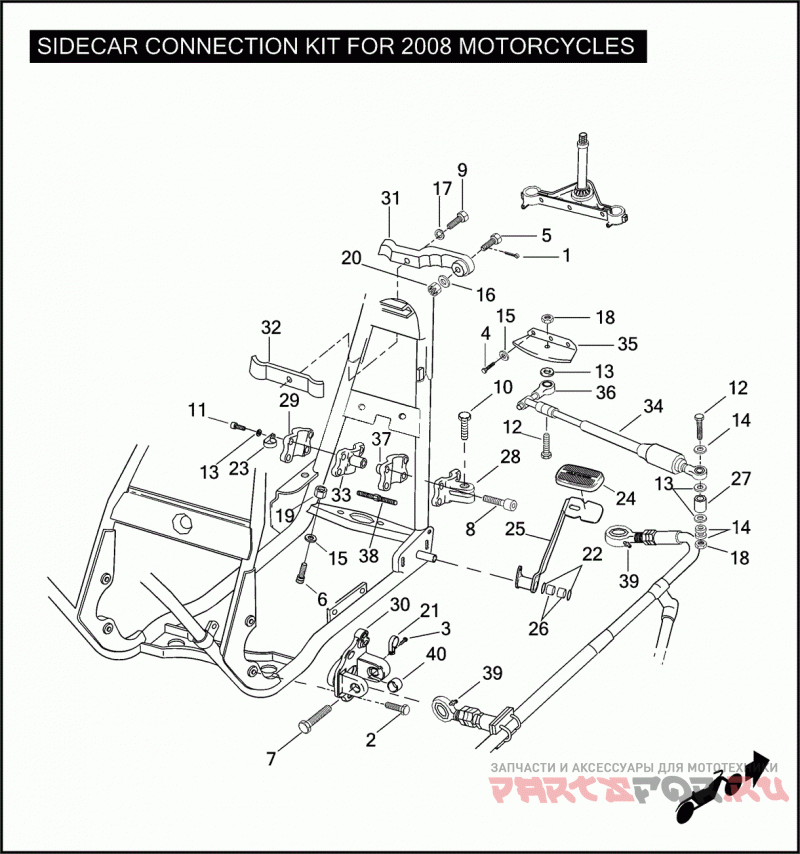

SIDECAR CONNECTION KIT FOR 2008 MOTORCYCLES

Harley Davidson TLE 8SZX STANDARD SIDECAR (2011)

Harley Davidson
#oem кодцена
1
559
Шплинт
2
3057
SCREW 7/16-14 X 1-1/4 HEX HEAD W/WASHER, W/LOCK PATCH
3
3764
BOLT 7/16-14 X 2 HEX HD. (GRADE 5)
4
3892
SCREW 1/4 X 5/8 SELF-TAPPING
5
3902A
SCREW 1/2-13 X 1-3/4 HEX HD.
6
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
7
4045
SCREW 3/4-10 X 2-3/4 HEX HD. (GRADE 8)
8
4357
SCREW 3/8-16 X 1-3/4 KNURLED HD. (GRADE 8)
9
4052
BOLT 1/2-13 X 1-3/4 HEX HD. (GRADE 5)
10
4151
SCREW 3/4-10 X 2-1/4 HEX HD. (GRADE 8)
11
4356
SCREW 3/8-16 X 1-1/2 KNURLED HD. (GRADE 8)
12
4420
SCREW 3/8-16 X 2.75 HEX HD. (GRADE 5)
12
4720W
BOLT 3/8-16 X 1-3/4 HEX HD. (GRADE 5)
13
6519
WASHER 13/32 X 1-1/32 X 1/8
14
6701
WASHER 3/8 X 13/16 X 1/16
15
6703
WASHER 1/4 X 5/8 X 1/16
16
6723
WASHER 17/32 X 1-1/2 X 9/64
17
7068
LOCKWASHER 1/2
18
7601
LOCKNUT 3/8-16 FLANGE
19
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
20
7843
NUT 1/2-13 SLOTTED
21
10036
Зажим
22
11364
Уплотнительное кольцо
23
42327-70
CLAMP CLUTCH CABLE RETAINER
24
42416-06
PAD BRAKE PEDAL
25
42631-08
BRAKE PEDAL ASSEMBLY REAR, W/ 57217-02
26
57217-02A
BUSHING BRAKE LEVER
27
59938-72
SPACER MOUNTING
28
87122-07
MOUNTING BRACKET LOWER FRONT
29
87123-83
BACKPLATE
30
87126-07
MOUNT KIT REAR, W/ 87181-02
31
87131-83C
UPPER CONNECTION FRONT, W/ 3902A
32
87132-92
UPPER CONNECTION CENTER
33
87137-92
STABILIZER MOUNT LEFT
34
87141-83
STEERING DAMPER
35
87143-83
BRACKET STEERING DAMPER
36
87144-83
ROD END BALL JOINT
37
87148-07
STABILIZER MOUNT RIGHT
38
87156-83
STABILIZER ADJUSTER
38
87166-09
CONNECTION KIT sidecar
39
87162-01
Масленка
40
87181-02
Проставка
40
26337-99B
ELBOW USED ON SIDECAR-EQUIPPED MOTORCYCLES TO RELOCATE OIL PRESSURE SENDER (NOT SHOWN)
