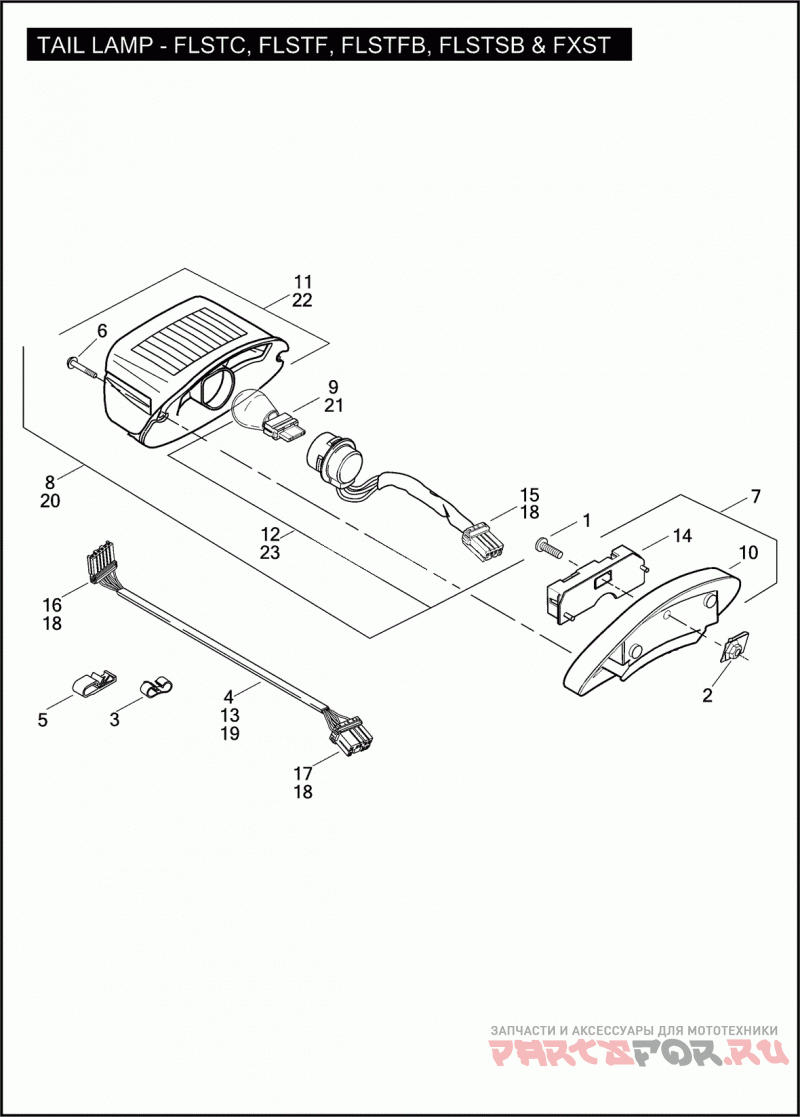

TAIL LAMP - FLSTC, FLSTF, FLSTFB, FLSTSB & FXST

Harley Davidson FXST 1BV5 SOFTAIL STANDARD (2011)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
6
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
11
68369-03
LENS TAIL LAMP, W/ 68026-99
13
68819-06A
HARNESS REAR LAMPS, W/ 70523-06, 73156-96BK, 73158-96BK, & 73191-96
14
68830-99A
CIRCUIT BOARD & COVER
16
73156-96BK
HOUSING 6-WAY SOCKET
17
73158-96BK
HOUSING 8-WAY SOCKET
18
73191-96
TERMINAL SOCKET, #16-20 AWG
19
69200018
CONDUIT HARNESS
20
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03, & 69187-03A (HDI)
21
68167-04
BULB TAIL LAMP (HDI), WEDGE MOUNT (HDI)
22
68372-03
LENS TAIL LAMP, W/ 68026-99 (HDI)
23
69187-03A
BULB SOCKET ASSEMBLY W/ 68167-04, 73154-96BK & 73191-96 (HDI)
