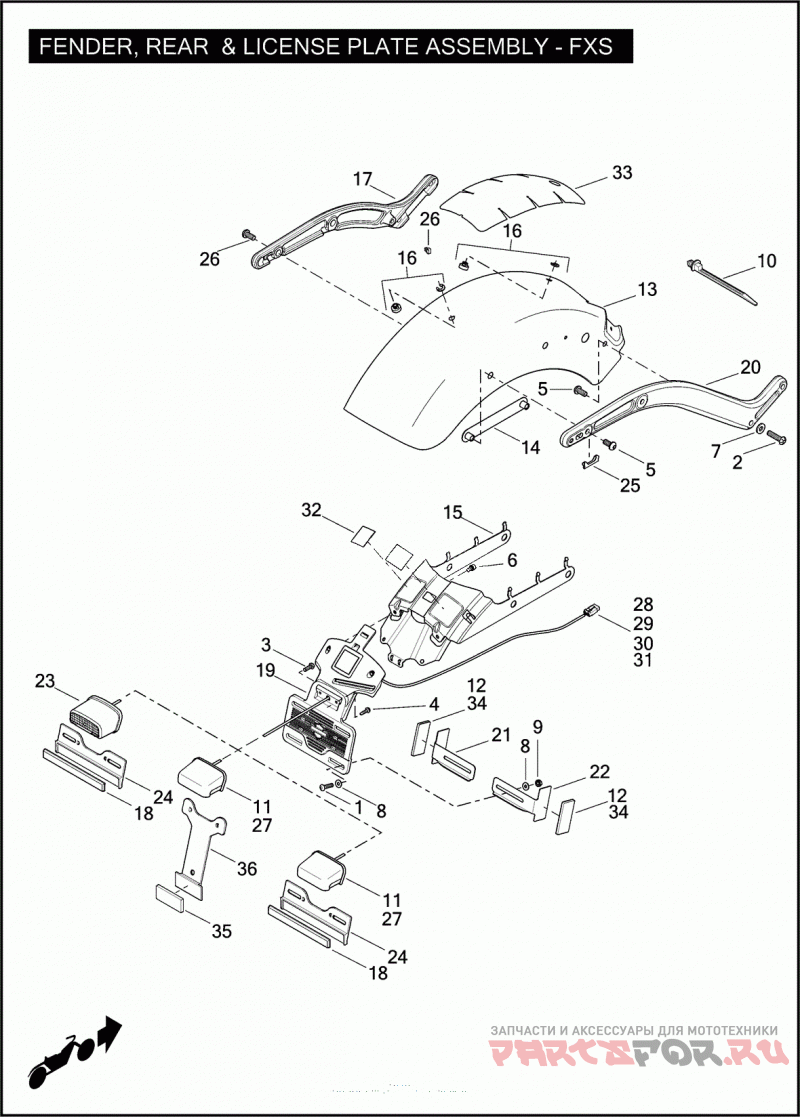

FENDER, REAR & LICENSE PLATE ASSEMBLY - FXS

Harley Davidson FXS 1JP5 BLACKLINE (2011)

Harley Davidson
#oem кодцена
1
940
SCREW 1/4-20 X 3/4 TORX BUTTON HD.
2
3056
SCREW 3/8-16 X 1-1/2 TORX BUTTON HD.
3
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
4
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
5
4266A
SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)
6
4705
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH
7
6400HB
WASHER 5/16 X 13/16 X 3/32
8
6703
WASHER 1/4 X 5/8 X 1/16
9
7792
NUT 1/4-20 X 1/4 (GRADE 2)
10
10177
CABLE STRAP X-MAS TREE
11
52441-95
BULB ILLUMINATOR
12
59259-90
Отражатель Красный
13
59500-11
FENDER
14
59548-11
BRACKET FENDER MOUNT
15
59679-11
BRACKET ASSEMBLY LICENSE PLATE SUPPORT
16
59768-97
FENDER SEAT NUT KIT
17
59904-11BYM
SUPPORT LEFT SIDE FENDER
18
59988-72A
Отражатель Красный
19
60154-11
BRACKET LICENSE PLATE
20
60187-11BYM
SUPPORT RIGHT SIDE FENDER
21
68966-08
BRACKET LEFT REFLECTOR MOUNT
22
68992-08
BRACKET RIGHT REFLECTOR MOUNT
23
73403-11
TAIL LAMP ASSEMBLY (CANADA)
24
73410-11
BRACKET REFLECTOR
25
73412-11
WIRE GUIDE
26
73422-11
WIRE CLIP
27
73504-11
ILLUMINATOR LICENSE PLATE
28
74113-98BK
HOUSING 3-WAY SOCKET (BLACK)
29
74153-98
SECONDARY LOCK 3-WAY SOCKET (BLACK)
30
74191-98
SOCKET TERMINAL
31
74195-98
SEAL PIN
32
11100010
TAPE PAD MOUNTING
33
11100014
PROTECTIVE TAPE FENDER
34
59256-84A
REFLECTOR AMBER (HDI)
35
59259-90
REFLECTOR RED (HDI)
36
60123-02
BRACKET REFLECTOR, LICENSE PLATE
