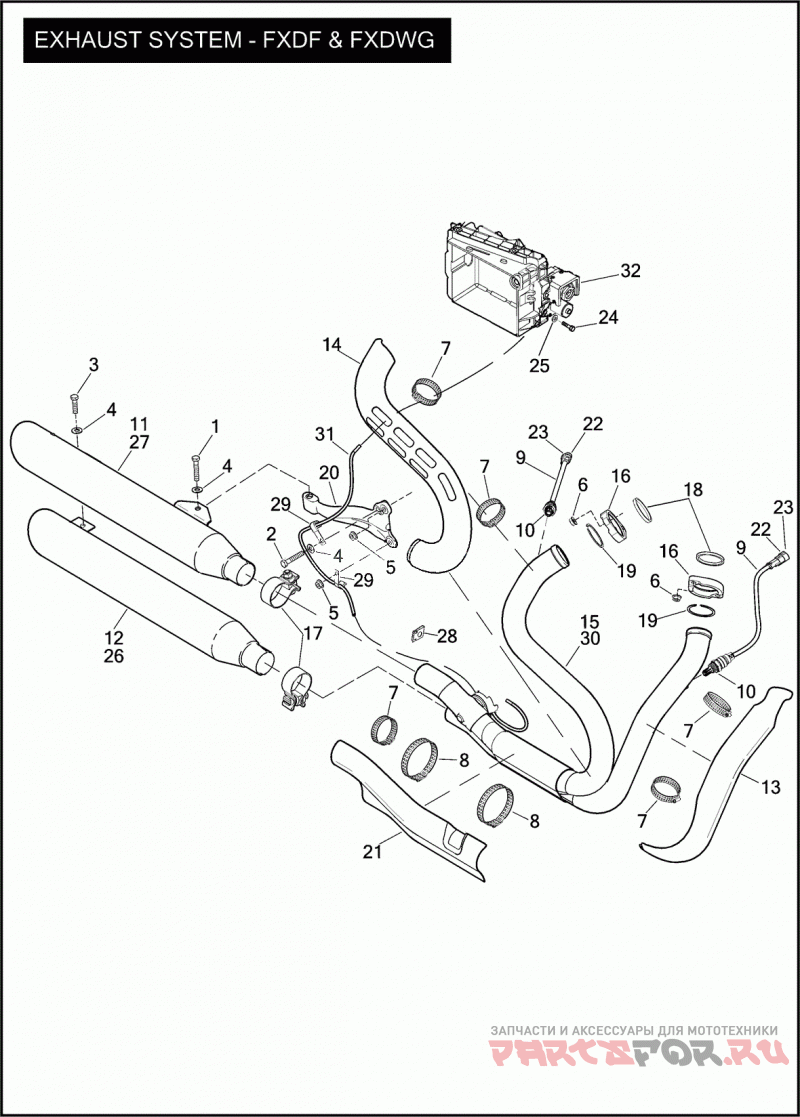

EXHAUST SYSTEM - FXDF & FXDWG

Harley Davidson FXDF 1GY4 DYNA FAT BOB (2011)

Harley Davidson
#oem кодцена
1
2667
BOLT 5/16-18 X 2 HEX HD. (GRADE 5)
2
2887WA
SCREW 5/16-18 X 1-3/4 HEX HD. (GRADE 5)
3
4269
SCREW 5/16-18 X 3/4, FLANGE HD.
4
6702
WASHER 5/16 X 11/16 X 1/16
5
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
6
7593
NUT 5/16-24 FLANGE
7
9955
Зажим
8
9956
Зажим
9
27683-07
SENSOR OXYGEN, W/ 27714-06, 72009-05 & 72011-05
10
27714-06
WASHER OXYGEN SENSOR
11
64705-08B
MUFFLER REAR (CHROME) (AUSTRALIA, CANADA, DOMESTIC)
12
64987-08A
MUFFLER FRONT (CHROME) (DOMESTIC, CALIFORNIA, CANADA)
13
64819-08
SHIELD FRONT EXHAUST (CHROME)
14
64830-08
SHIELD REAR EXHAUST (CHROME)
15
64997-08A
EXHAUST PIPE ASSEMBLY
16
65184-02
FLANGE PIPE
17
65296-95A
CLAMP MUFFLER
18
65324-83B
GASKET EXHAUST
19
65325-83A
RETAINING RING EXHAUST GASKET
20
65696-08B
BRACKET REAR EXHAUST
21
66840-08
HEATSHIELD ASSEMBLY COLLECTOR (FORWARD CONTROLS)
21
66841-08
HEATSHIELD ASSEMBLY COLLECTOR (MID-CONTROLS)
22
72009-05
HOUSING 2-WAY PIN
23
72011-05
WIRE SEAL #16-20 AWG (YELLOW)
24
923
SCREW 1/4-20 X 3/4 SOCKET PAN HD.
25
6703
WASHER 1/4 X 5/8 X 1/16
26
64700-08
MUFFLER LOWER (CHROME) (HDI, AUSTRALIA, ENGLAND, JAPAN)
26
64987-08A
MUFFLER FRONT (CHROME) (DOMESTIC, CALIFORNIA, CANADA)
27
64701-08
MUFFLER UPPER (CHROME) (ASIA-PACIFIC, JAPAN)
27
64705-08B
MUFFLER REAR (CHROME) (AUSTRALIA, CANADA, DOMESTIC)
28
66767-07
RETAINER CABLE (HDI, AUSTRALIA, ENGLAND)
29
66798-07
CLAMP EXHAUST VALVE (HDI, AUSTRALIA, ENGLAND)
30
66808-08A
EXHAUST PIPE ASSEMBLY (ASIA-PACIFIC, AUSTRALIA, ENGLAND, HDI)
30
64997-08A
EXHAUST PIPE ASSEMBLY (ASIA-PACIFIC, JAPAN)
31
66852-08
CABLE EXHAUST VALVE W/ 66767-07 (HDI, AUSTRALIA, ENGLAND)
32
70991-07
ACTUATOR EXHAUST (HDI, AUSTRALIA, ENGLAND)
32
71019-07
SHROUD EXHAUST ACTUATOR (NOT ILLUSTRATED) (HDI, AUSTRALIA, ENGLAND)
