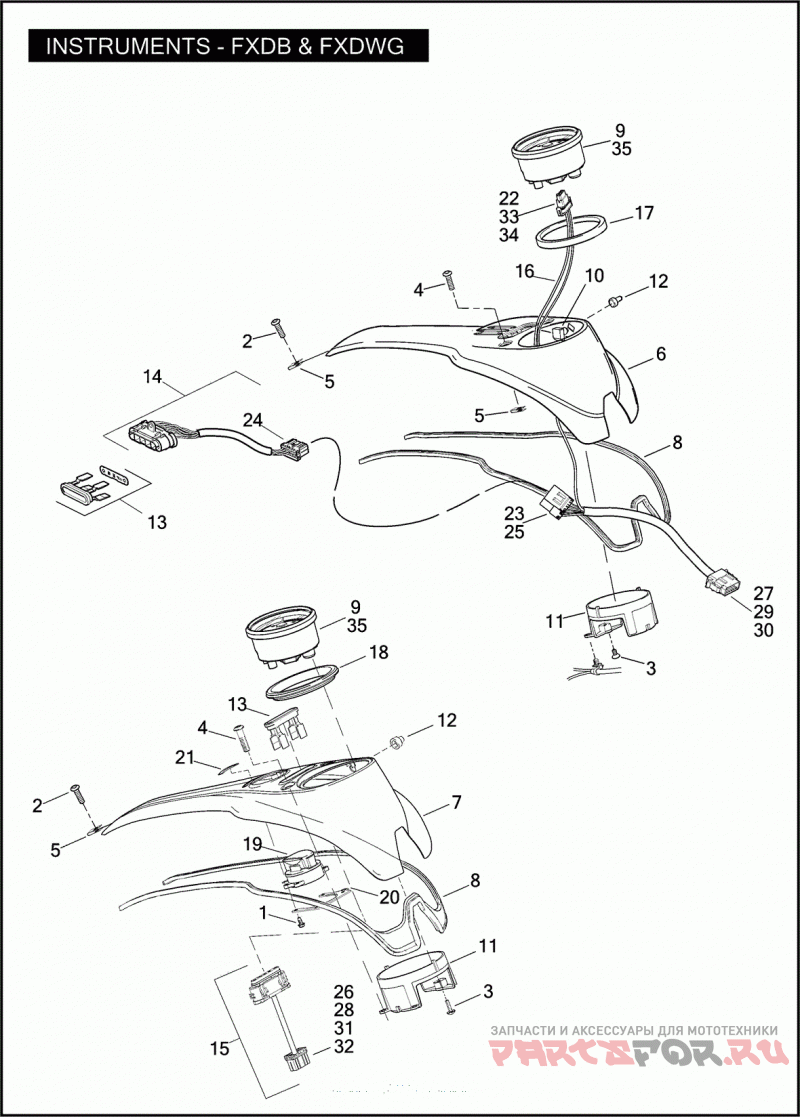

INSTRUMENTS - FXDB & FXDWG

Harley Davidson FXDB 1GX4 DYNA STREET BOB (2011)

Harley Davidson
#oem кодцена
2
3540
SCREW 5/16-18 X 5/8 SOCKET BUTTON HD.
3
3691
SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.
4
4007
SCREW 5/16-18 X 1-1/4 SOCKET BUTTON HD.
5
8173
SPEED NUT
6
61705-06
CONSOLE W/ 67185-04 (BLACK WRINKLE)
8
67185-04
TRIM CONSOLE
9
67478-09
SPEEDOMETER MPH
10
67488-04
SWITCH RESET
11
67689-04
CLAMP GAUGE
12
67880-94
BOOT RESET SWITCH
13
68382-07B
BEZEL ASSEMBLY INDICATOR LAMPS
14
68789-96B
INDICATOR LAMP ASSEMBLY W/ 73160-96BK (REPLACES 68789-96)
16
70472-06
HARNESS ASSEMBLY INSTRUMENTS
17
70476-06
GASKET SPEEDOMETER
22
72189-04
SEAL PIN
23
73110-96BK
HOUSING 10-WAY PIN
24
73160-96BK
HOUSING SOCKET
25
73190-96
TERMINAL PIN
27
74119-98BK
HOUSING 12-WAY SOCKET (BLACK)
29
74159-98
SECONDARY LOCK 12-WAY SOCKET
30
74191-98
TERMINAL SOCKET
33
74196-04
TERMINAL SOCKET, #20 AWG
34
74197-04
SECONDARY LOCK 12-WAY SOCKET
35
67479-09
SPEEDOMETER KPH (HDI, CANADA, ASIA-PACIFIC, AUSTRALIA, JAPAN)
35
67480-09
SPEEDOMETER MPH/KPH (ENGLAND)
