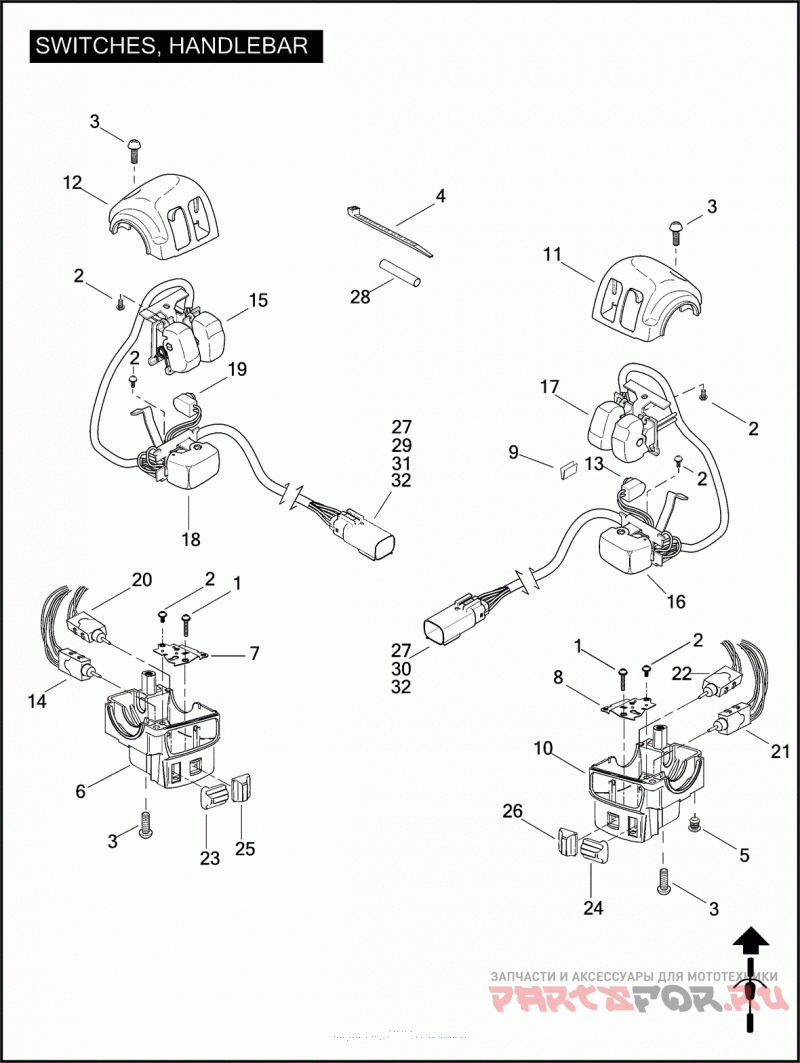

SWITCHES, HANDLEBAR

Harley Davidson FLTRUSE 1TA8 CVO ROAD GLIDE (2011)

Harley Davidson
#oem кодцена
1
2559
SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER
2
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
4292
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
4
10006
STRAP CABLE
4
10181
STRAP CABLE
5
55928-08
Заглушка
6
56866-06A
HOUSING LOWER LEFT
7
70373-96
BRACKET SWITCH, LOWER LEFT
8
70375-96
BRACKET SWITCH, LOWER RIGHT
9
71587-04
V-CLIP
10
71612-96
HOUSING LOWER RIGHT
11
71614-96
HOUSING UPPER RIGHT
12
71615-96
HOUSING UPPER LEFT
13
71621-08
SWITCH KIT STOP LAMP, W/ 10181 & 72266-94
14
71642-08
SWITCH KIT VOLUME, W/ 10181 & 72266-94
15
71682-06A
SWITCH KIT HEADLAMP HIGH/LOW & HORN, W/ 10181 & 72266-94
16
71683-06A
SWITCH KIT RIGHT TURN SIGNAL, W/ 10181 & 72266-94
17
71684-06A
SWITCH KIT ENGINE START/OFF/RUN, W/ 10181 & 72266-94
18
71685-06A
SWITCH KIT LEFT TURN SIGNAL, W/ 10181 & 72266-94
19
71699-07
SWITCH CLUTCH
20
71735-08
SWITCH KIT PTT/SQ -/+, W/ 10181 & 72266-94
21
71787-08
SWITCH KIT MODE SELECT, W/ 10181 & 72266-94
22
71788-08
SWITCH KIT CRUISE CONTROL, SET/RESUME, W/ 10181 & 72266-94
23
71820-98
KNOB +/- AUDIO
24
71822-98
KNOB MODE SELECT, UP/DOWN
25
71824-98
KNOB SWITCH, PTT/SQ -/+
26
71825-96A
KNOB CRUISE CONTROL, SET/RESUME
27
72169-07
TERMINAL PIN, #16-20 AWG
28
72266-94
TUBE HEAT SHRINK, DUAL WALL, 0.3 X 2 INCH (BLACK)
29
72473-07
SEAL PIN
30
72488-07BK
HOUSING PIN, 12-WAY
31
72492-07GY
HOUSING PIN, 16-WAY
32
73212-07
CONNECTOR ANCHOR T-STUD
