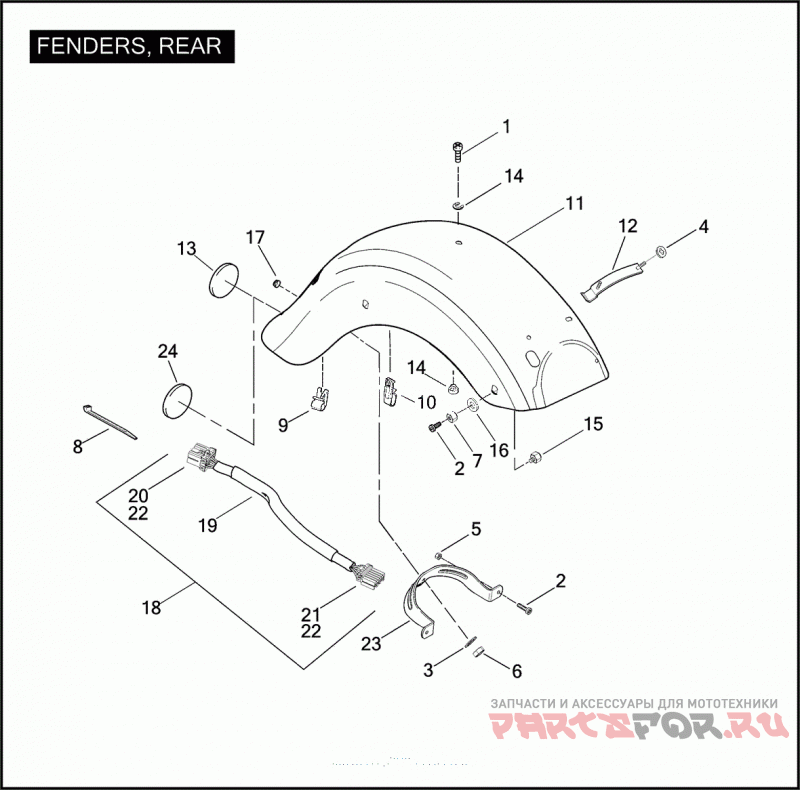

FENDERS, REAR

Harley Davidson FLTRUSE 1TA8 CVO ROAD GLIDE (2011)

Harley Davidson
#oem кодцена
1
2952A
SCREW 1/4-20 X 1/2 SEMS TRUSS HD.
2
3684
SCREW 5/16-18 X 1 TORX PAN HD.
3
6703
WASHER 1/4 X 5/8 X 1/16
4
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
5
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
6
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
7
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
8
10006
CABLE STRAP LIGHTING HARNESS
9
10183
CLIP T-STUD
10
10184
CLIP T-STUD
10
48421-04
PROTECTIVE TAPE REAR FENDER (NOT ILLUSTRATED)
11
58702-09
FENDER REAR (PRIME)
11
59583-11BYZ
FENDER REAR (CHARCOAL SLATE)
11
59583-11DFO
FENDER REAR (RIO RED)
11
59583-11DFW
FENDER REAR (FROSTED IVORY)
12
59174-99
PLATE STUD
13
59424-10
MEDALLION REAR FENDER (DOMESTIC)
13
59699-06
PROTECTIVE TAPE REAR FENDER (NOT ILLUSTRATED)
14
59768-97
NUT KIT SEAT, W/ RETENTION WASHER
15
59786-01
BOSS FENDER MOUNTING, INNER
16
59788-01
Шайба
17
67266-94
GROMMET 1/2 IN. I.D. (NYLON)
18
68772-09A
HARNESS REAR LAMPS, W/ 10006, 70522-06B, 73156-96BK, 73158-96BK & 73191-96
19
70522-06B
CONDUIT WIRE HARNESS, SELF-ADHESIVE
20
73156-96BK
SOCKET HOUSING 6-PLACE
21
73158-96BK
SOCKET HOUSING 8-PLACE
22
73191-96
SOCKET TERMINAL #16-20 AWG
23
91140-09
BRACKET FENDER TO SADDLEBAG SUPPORT
24
59581-05
BUMPER REAR FENDER (BLACK) (HDI)
