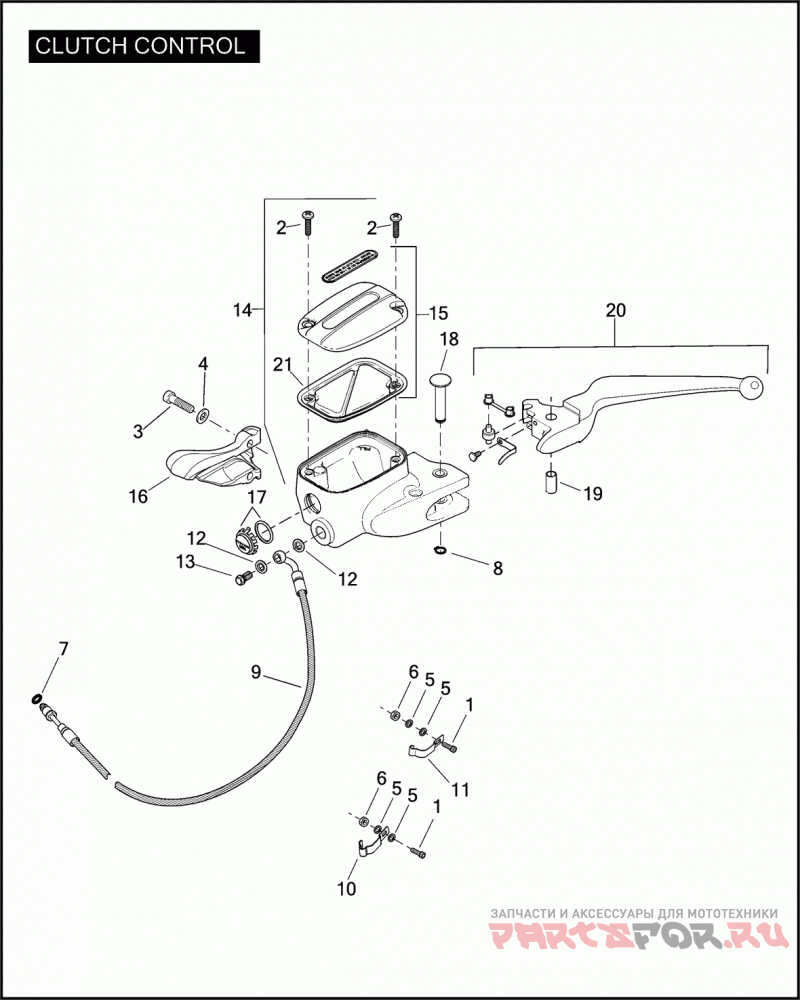

Привод управления сцеплением

Harley Davidson FLTRUSE 1TA8 CVO ROAD GLIDE (2011)

Harley Davidson
#oem кодцена
1
1001
SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
2
3089
SCREW 8-32 X 5/8 PHILLIPS HD. (STAINLESS)
3
4293
SCREW 1/4-20 X 1-1/8 TORX BUTTON HD,
4
6099
WASHER 1/4 X 7/16 X 1/16
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
6
10039
STRAP CABLE (NOT ILLUSTRATED)
7
11348
Уплотнительное кольцо
8
11694
RING RETAINING
9
38898-08A
LINE ASSEMBLY HYDRAULIC-CLUTCH, W/ 11348
10
38938-09
RETAINER CLUTCH LINE, LOWER
11
38969-10
RETAINER CLUTCH LINE, UPPER
12
41751-06A
GASKET BANJO-BOLT
13
42010-06B
BOLT, BANJO (CHROME)
14
42101-10B
MSTR CYL ASY,LH,FRT/CHRM(PO)
15
36700094A
MASTER CYLINDER COVER KIT WITH 3089 AND GASKET (CHROME)
16
76000189
ZUMO GPS MOUNTING BRACKET CHROME
17
42145-06
SIGHT GLASS KIT
18
45032-10
PIVOT PIN (POLISHED)
19
45423-10
BUSHING HAND LEVER
20
46115-10
LEVER ASSEMBLY HAND, W/ 11694 & 45423-10 (CHROME)
21
46322-06
GASKET COVER
