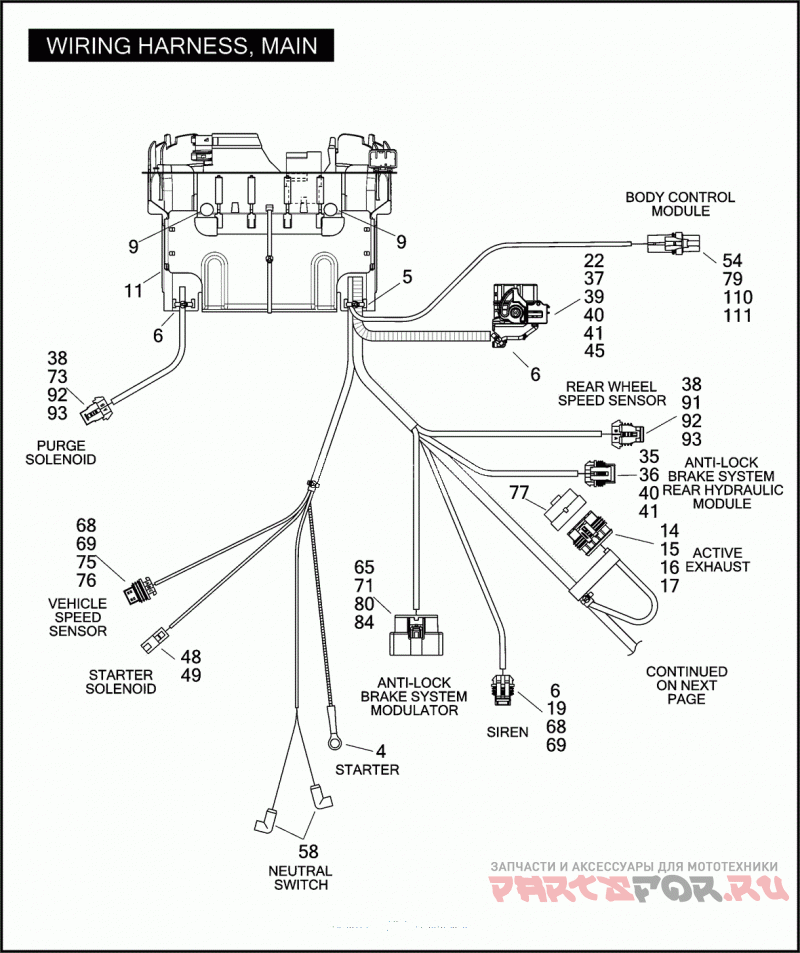

WIRING HARNESS, MAIN (2 OF 3)

Harley Davidson FLSTSE2 1PY9 CVO SOFTAIL CONVERTIBLE (2011)

Harley Davidson
#oem кодцена
70132-11
Деталь MAIN WIRING HARNESS (CONTINUED)
41
72227-11
Деталь TERMINAL SOCKET, #18-20 AWG
42
72242-94
Деталь TERMINAL 1/4 RING
43
72251-07
Деталь SECONDARY LOCK 2-WAY SOCKET (YELLOW)
44
72254-94
Деталь TERMINAL RING .25 STUD, #14-16 AWG
45
72256-11
Деталь SEAL PIN .6MM PLUG
46
72283-09
Деталь TERMINAL FEMALE, #14-16 AWG
47
72290-94
Деталь TERMINAL INSULATED
48
72291-94
Деталь TERMINAL #14-16 AWG
49
72295-94
Деталь HOUSING STARTER CONNECTION
50
72298-95
Деталь WIRE SEAL #14-18 AWG (GREEN)
51
72308-97
Деталь TERMINAL FEMALE, #12-14 AWG
52
72314-01
Деталь MAXI-FUSE 40 AMP
53
72330-95
Деталь FUSE 15 AMP (BLUE)
54
72350-11
Деталь HOUSING ONE-WAY
55
72356-95
Деталь TERMINAL SOCKET, #18-20 AWG
56
72369-08A
Деталь BRACKET FUSE BLOCK HOLDER,(BLACK)
57
72402-07
Деталь HOUSING 2-WAY SOCKET (BLACK)
58
72405-98BK
Деталь CONNECTOR PUSH ON 90 DEGREE
59
72406-07A
Деталь HOUSING 4-WAY SOCKET
60
72407-07
Деталь TERMINAL SOCKET, #16-20 AWG
61
72408-07
Деталь WIRE SEAL #16-20 AWG (BLUE)
62
72413-07
Деталь TERMINAL SOCKET, #18-20 AWG
63
72414-07BK
Деталь HOUSING 6-WAY SOCKET (BLACK)
64
72440-08
Деталь SEAL PIN .6MM PLUG
65
72473-07
Деталь SEAL PIN
66
72478-07BK
Деталь HOUSING 8-WAY, PIN (BLACK)
67
72483-08BK
Деталь HOUSING 6-WAY, SOCKET (BLACK)
68
72484-08
Деталь TERMINAL SOCKET, #20 AWG
69
72486-08
Деталь SEAL WIRE #20 AWG (GREEN)
70
72495-08
Деталь TERMINAL SOCKET, #12-14 AWG (GOLD)
71
72500-07ABK
Деталь HOUSING 20-WAY SOCKET (BLACK)
72
72512-07BK
Деталь HOUSING 3-WAY SOCKET
73
72518-01
Деталь HOUSING SOCKET, 2-WAY (RED)
74
72519-09BK
Пылезащитный колпачок
75
72543-07BK
Деталь HOUSING 3-WAY SOCKET (BLACK)
76
72544-07
Деталь SECONDARY LOCK 3-WAY FEMALE
77
72553-07
Деталь DUST CAP 5-PIN
78
72556-08
Деталь WIRE SEAL #12-14 AWG
79
72575-11
Деталь SECONDARY LOCK
