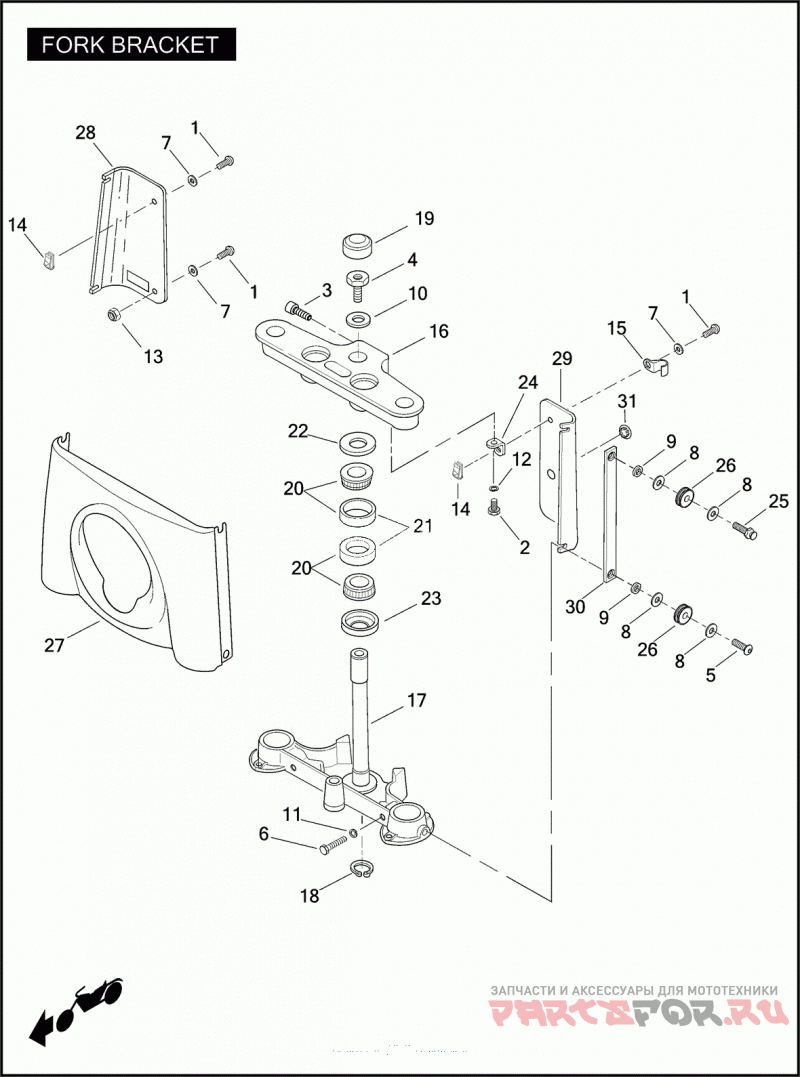

FORK BRACKET для мотоциклов Harley Davidson FLSTSE2 1PY9 CVO SOFTAIL CONVERTIBLE (2011) (2011)

FORK BRACKET

Harley Davidson FLSTSE2 1PY9 CVO SOFTAIL CONVERTIBLE (2011)

oem код

название

цена

941

SCREW 1/4-20 X 5/8 SOCKET BUTTON HD. (GRADE 8)

3953W

BOLT 5/16-24 X 1/2 HEX HD. (GRADE 5)

4350A

SCREW 3/8-16 X 1-1/2 SOCKET HD.

4453

BOLT 1/4-20 X 7/8 HEX HD. SPECIAL WITH TAPPED HOLE

4481

SCREW 5/16-24 X 1 SOCKET BUTTON HD., W/LOCKPATCH (GRADE 8)

4945

SCREW 7/16-20 UNRF X 1-1/4 HEX HD. (ZINC PLATE)

6119

WASHER 1/4 X 9/16 X 1/16

6235

WASHER 1/4 X 23/32 X 1/16

6314W

WASHER 21/64 X 9/16 X 1/8 (ZINC)

6655

WASHER 5/8 X 1-1/2 X 7/64

7039

LOCKWASHER 7/16

7041

LOCKWASHER 5/16

7792

NUT 1/4-20 X 1/4 (GRADE 2)

SPEEDNUT 1/4-20

Зажим

BRACKET UPPER

STEM & BRACKET ASSEMBLY INCLUDING LOWER BEARING CONE

45611-86

RETAINING RING FORK STEM

45670-80A

CAP FORK STEM

48300-60

ROLLER BEARING W/ CUP

48315-60

BEARING CUP

48361-80

DUST SHIELD BEARING, UPPER

48365-48A

DUST SHIELD BEARING, LOWER

50991-86

BRACKET FRONT PANEL

58268-95

PIN MOUNTING, WINDSHIELD

67621-94

Втулка

67766-10A

FRONT PANEL (CHROME)

67887-91A

BACK PANEL RIGHT REAR (CHROME)

67888-91A

BACK PANEL LEFT REAR W/ SWITCH HOLE (CHROME)

67891-99

MOULDING KIT TRIPLE CLAMP COVER

90357-89

Заглушка
