CONSOLE, FUEL TANK для мотоциклов Harley Davidson FLSTSE2 1PY9 CVO SOFTAIL CONVERTIBLE (2011) (2011)

Москва и регионы России

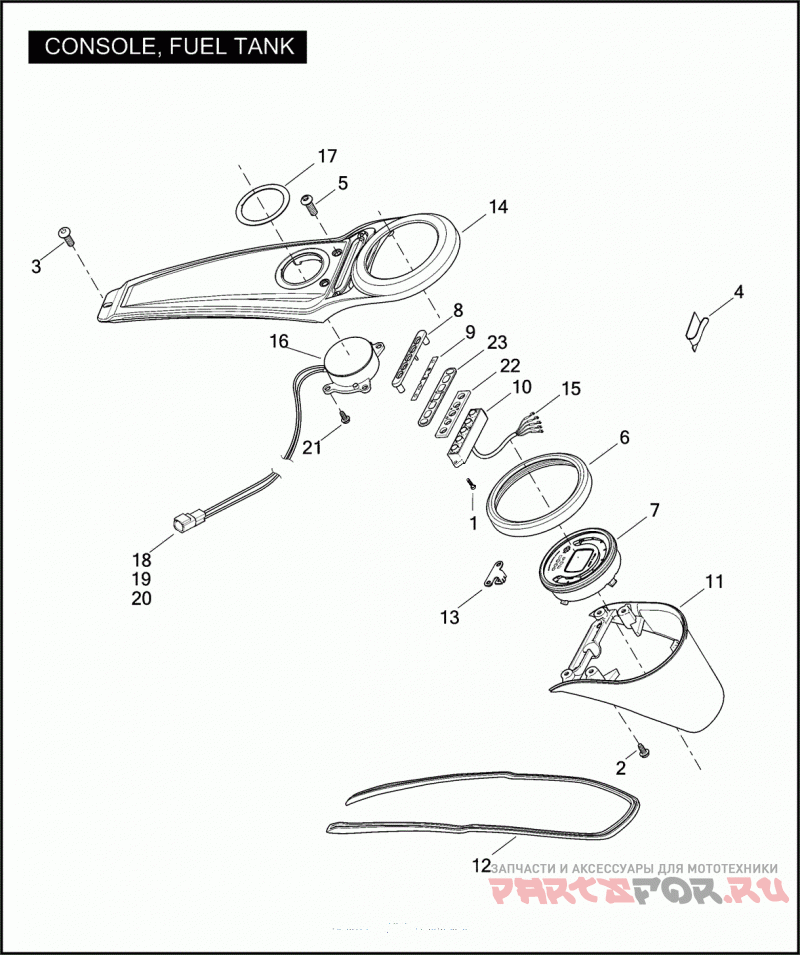

CONSOLE, FUEL TANK

Harley Davidson FLSTSE2 1PY9 CVO SOFTAIL CONVERTIBLE (2011)

CONSOLE, FUEL TANK

#

oem код

название

цена

1

SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING

SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING

2

SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING

SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING

3

SCREW NO. 10-24 X 5/8 HEX SOCKET BUTTON HD.

SCREW NO. 10-24 X 5/8 HEX SOCKET BUTTON HD.

4

CLIP ADHESIVE, LARGE

CLIP ADHESIVE, LARGE

5

SCREW 1/4-20 X 3/4 CAP INTERNAL HEX

SCREW 1/4-20 X 3/4 CAP INTERNAL HEX

6

GASKET SPEEDOMETER

GASKET SPEEDOMETER

7

SPEEDOMETER/TACHOMETER 5-MPH/KPH

SPEEDOMETER/TACHOMETER 5-MPH/KPH

10

HARNESS ASSEMBLY INDICATOR, W/ 72662-11

HARNESS ASSEMBLY INDICATOR, W/ 72662-11

11

CONSOLE FUEL TANK, BOTTOM (CHROME)

CONSOLE FUEL TANK, BOTTOM (CHROME)

12

TRIM INSTRUMENT PANEL

TRIM INSTRUMENT PANEL

13

NUT PLATE ASSEMBLY CONSOLE MOUNT

NUT PLATE ASSEMBLY CONSOLE MOUNT

14

CONSOLE FUEL TANK, TOP (CHROME)

CONSOLE FUEL TANK, TOP (CHROME)

15

TERMINAL SOCKET, #22 AWG

TERMINAL SOCKET, #22 AWG

16

LED CONSOLE LIGHT CVO LOGO, W/ 74102-98BK, 74142-98 & 74190-98

LED CONSOLE LIGHT CVO LOGO, W/ 74102-98BK, 74142-98 & 74190-98

17

NAMEPLATE KEYLESS, GREY

NAMEPLATE KEYLESS, GREY

18

HOUSING 2-WAY PIN (BLACK)

HOUSING 2-WAY PIN (BLACK)

19

SECONDARY LOCK 2-WAY PIN

SECONDARY LOCK 2-WAY PIN

20

TERMINAL PIN, #16-20 AWG

TERMINAL PIN, #16-20 AWG

21

Винт

Винт

22

RUBBER GASKET INDICATOR LIGHTS

RUBBER GASKET INDICATOR LIGHTS

23

GASKET INDICATOR LIGHTS

GASKET INDICATOR LIGHTS
