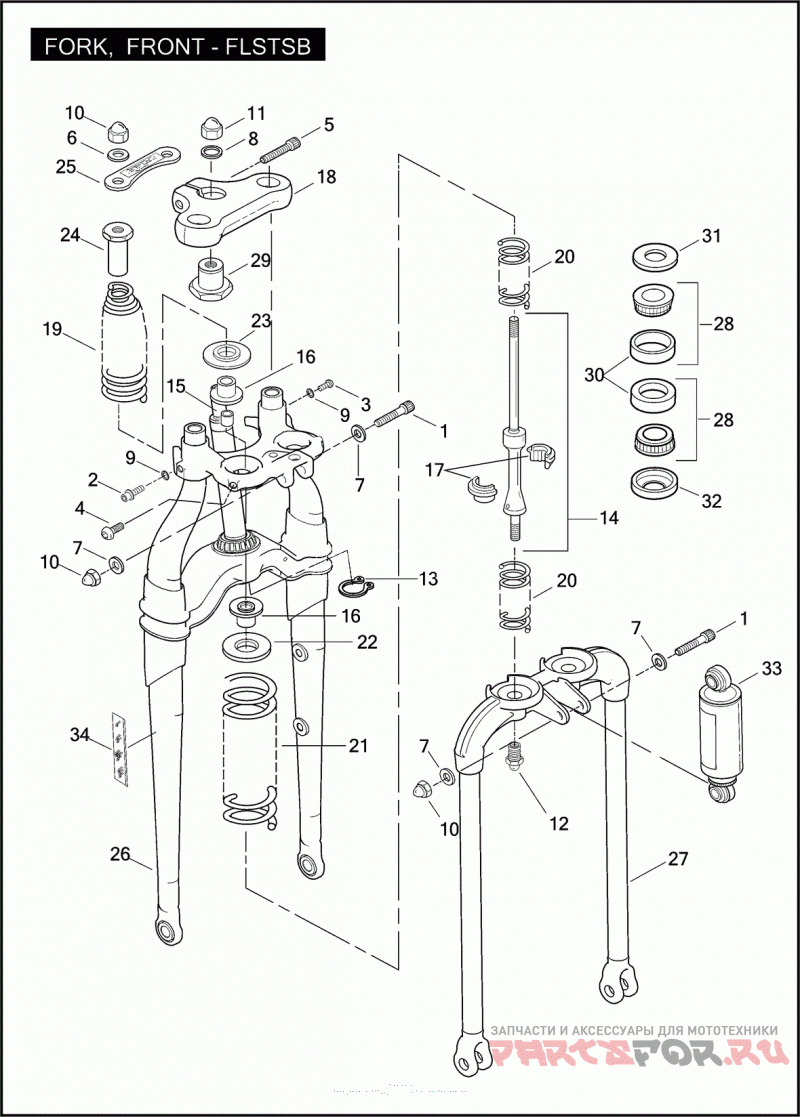

FORK, FRONT - FLSTSB

Harley Davidson FLSTSB 1JM5 CROSS BONES (2011)

Harley Davidson
#oem кодцена
1
855B
SCREW 3/8-16 X 2 KNURLED HD.
2
3061
SCREW 1/4-20 X 5/8 SEMS HEX HD.
3
3533
SCREW 5/16-24 X 3/8 SOCKET BUTTON HD.
4
3538
SCREW 5/16-24 X 1/2 SOCKET BUTTON HD.
5
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
6
6353
WASHER 3/8 X 13/16 X 1/16 (CHROME)
7
6812
WASHER 13/32 X 11/16 X 1/16
8
6829
WASHER 31/64 X 1 X 7/64
9
7232
LOCKWASHER 5/16 INTERNAL TOOTH
10
7680W
ACORN NUT 3/8-16 X 25/32 X 9/16 (GRADE 2) (CHROME)
11
7959
ACORN NUT 1/2-13 X 13/16 X 3/4 (CHROME)
12
45567-88
ACORN NUT LOWER SPRING ROD
13
45611-86
Стопорное кольцо
14
45628-92
SPRING ROD ASSEMBLY
15
45935-88
BUSHING SPRING ROD
16
45936-88
TRAVEL BUMPER
17
45937-88
Пружины
18
45989-05
UPPER TRIPLE CLAMP
19
46053-88
SPRING REBOUND, TOP
20
46054-88
SPRING COMPRESSION, INNER
21
46055-88
SPRING COMPRESSION, OUTER
22
46056-88
SPRING CUP COMPRESSION SPRING
23
46057-88
SPRING CUP REBOUND SPRING
24
46060-88
SPRING RESTRAINT UPPER
25
46062-88
SPRING BRIDGE
26
46173-05
RIGID FORK ASSEMBLY W/ 45611-86 & 48365-48A
27
46174-05
SPRING FORK
28
48300-60
ROLLER BEARING W/ CUP
29
48306-88
BEARING RETAINER STEERING HEAD
30
48315-60
CUP BEARING
31
48361-80
DUST SHIELD BEARING, UPPER
32
48365-48A
DUST SHIELD BEARING, LOWER
33
54484-97
SHOCK ABSORBER FRONT
34
60254-07
REFLECTOR AMBER
