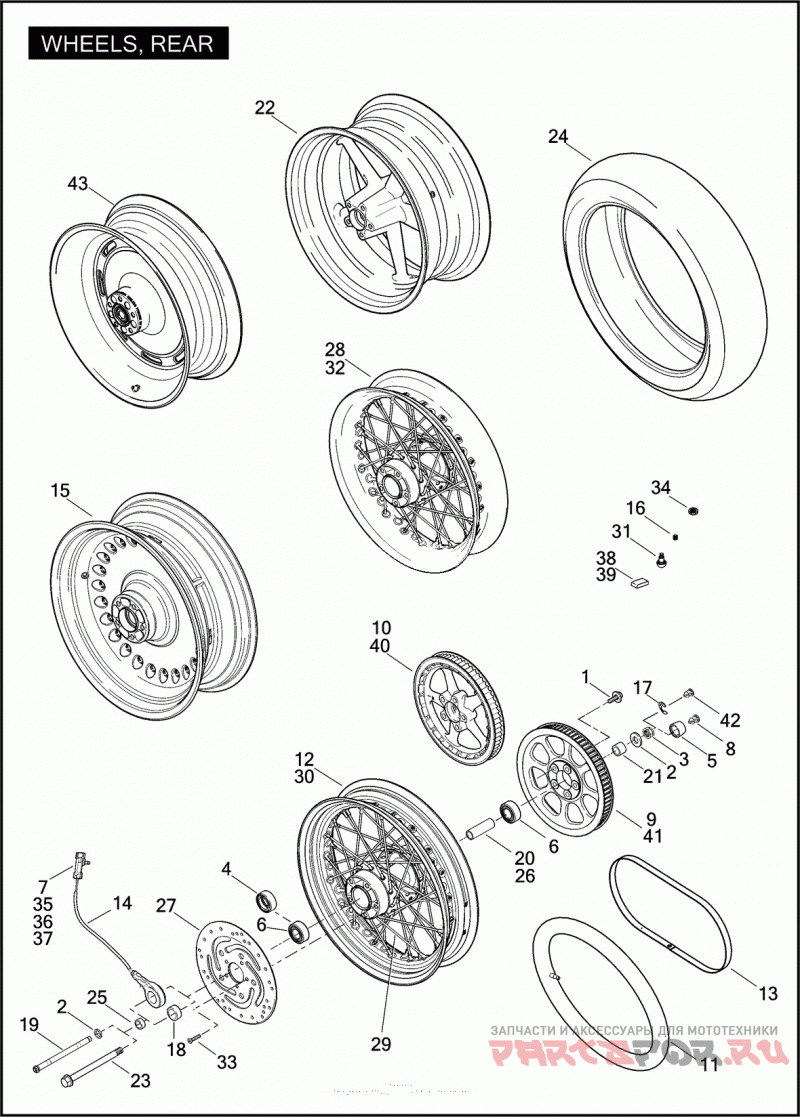

Колесо заднее

Harley Davidson FLSTFB 1JN5 FAT BOY LO (2011)

Harley Davidson
#oem кодцена
1
3109
SCREW 7/16-14 X 2-5/8 HEX CAP W/WASHER, LOCK PATCH
2
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
3
8020
NUT M24 X 2.0 X 15
4
9252
BALL BEARING W/ ENCODER, ABS
6
9276A
BALL BEARING 25 MM (NON-ABS)
7
10147
CLIP CONNECTOR, ABS
9
37710-07
SPROCKET REAR, 66 T (BLACK)
14
40985-11
SENSOR WHEEL SPEED, ABS, W/ 10147, 72607-08, 72608-08 & 72639-10
15
41840-10
WHEEL ASSEMBLY REAR, 17 IN. DISC (BLACK)
16
41123-79
VALVE CAP
17
41229-08
RETAINING PIN
18
41242-08
SPACER WHEEL, NON-ABS
21
41359-08
SPACER REAR AXLE, LEFT
23
41641-08
AXLE ASSEMBLY
24
43242-06B
TIRE 17 IN.
25
41694-08
SPACER REAR WHEEL ADJUSTMENT
26
41696-08
SLEEVE SPACER
27
41797-00
BRAKE DISC REAR
31
43157-83A
VALVE STEM ASSEMBLY
33
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
34
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
35
72607-08
HOUSING 2-WAY PIN
36
72608-08
TERMINAL PIN, #16-20 AWG
37
72639-10
SECONDARY LOCK 2-WAY
39
95595-84B
WHEEL WEIGHT 5 grams (plain)
41
37770-07
SPROCKET REAR, 64 T (JAPAN) (BLACK)
42
40964-08
COVER AXLE NUT (HDI)
